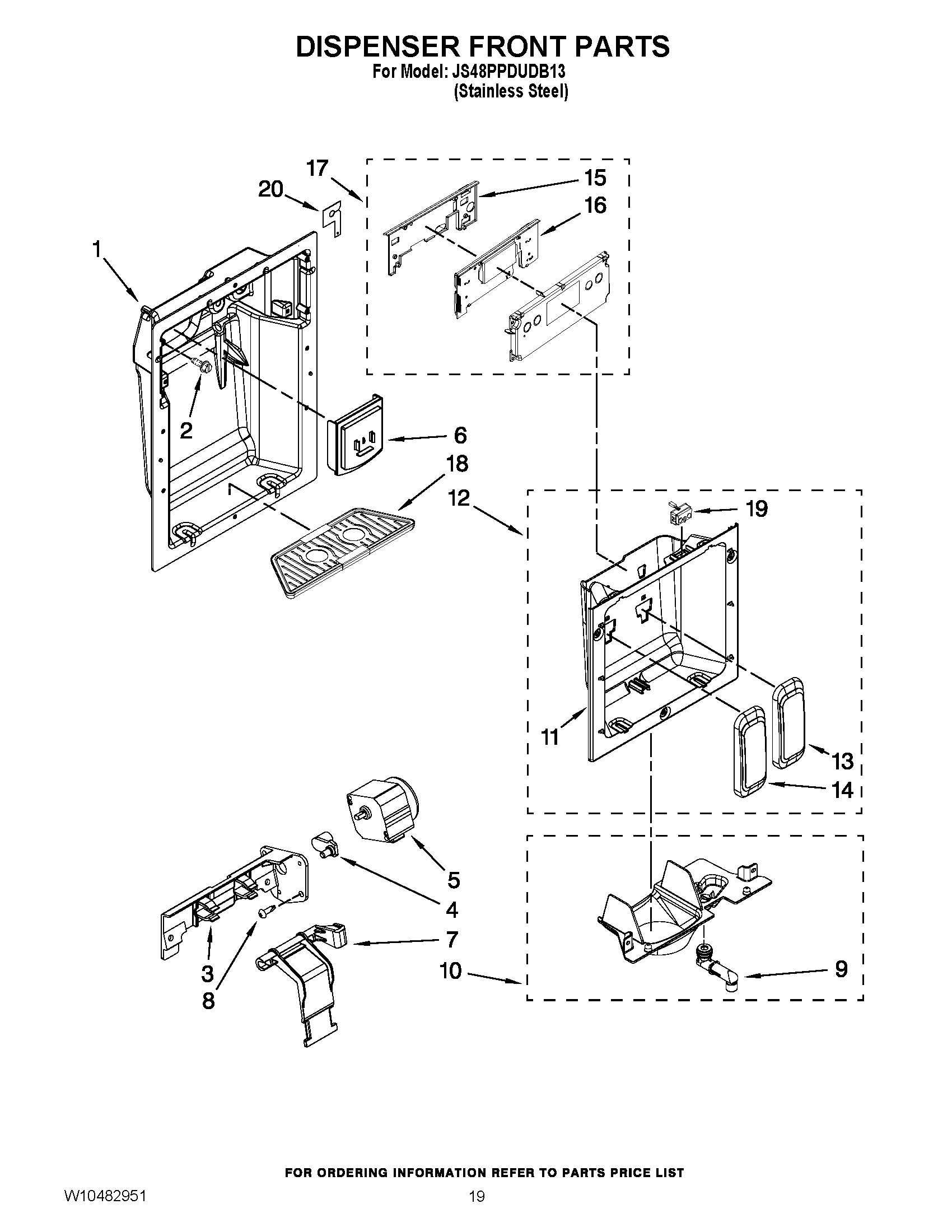

JS48PPDUDB13 12 – DISPENSER FRONT PARTS

Products

Position	Product
2	MAY 1157158
3	MAY W10132946
4	MAY 2305242
5	MAY W10205979
6	MAY 2180353
7	MAY 2318020
8	MAY 4449745
9	ASSEMBLY, SPIGOT
10	Separator Assembly
11	LINER (NOT A SERVICEABLE PART)
12	HOUSING ASSEMBLY
13	Water, Paddle Asy (For Aluminum Model)
14	Ice, Paddle Asy (For Aluminum Model)
15	Cover, Control
16	ASSEMBLY, UI CONTROL COVER
17	MAY W10151236
18	ASSEMBLY, DRIP TRAY
19	LED Assembly
20	MAY 2305447
