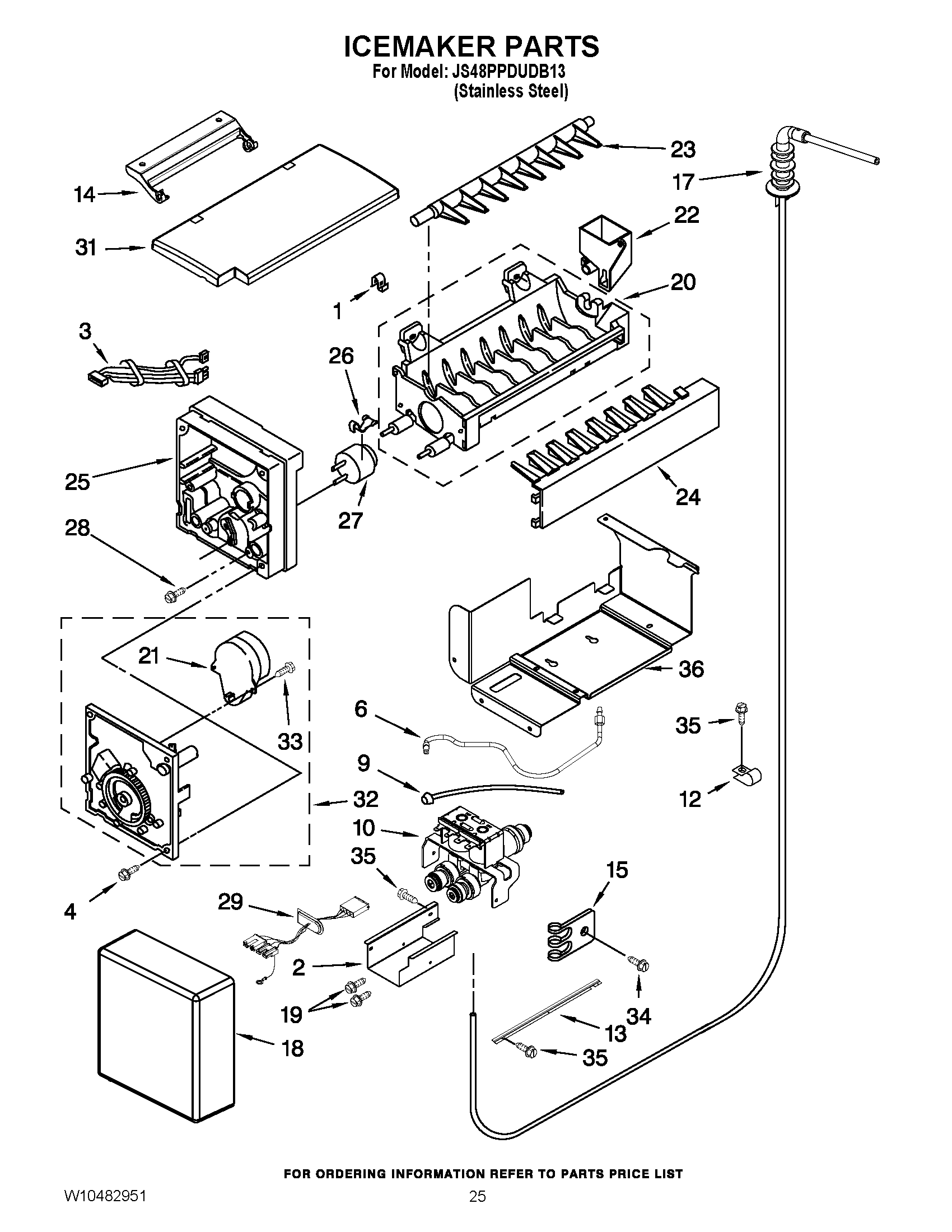

JS48PPDUDB13 15 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	MAY REFDEODOR
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
1	Clip
2	Shield, Valve
3	MAY 2310191
4	MAY 489276
6	MAY W10296807
9	MAY 2317912
10	Valve, Solenoid
12	MAY 2221070
13	MAY 2320559
14	Bracket, Ice Maker Cover
15	Clip, Tube
17	MAY W10357286
18	COVER
19	SCREW
20	MAY W10122527
21	LINER (NOT A SERVICEABLE PART)
22	MAY W10272168
23	MAY 627843
24	STRIPPER, ICE
25	MAY 2194712
26	MAY 2315522
27	MAY W10290336
28	MAY 8533917
29	WIRE ASSEMBLY, SMART VALVE
31	MAY W10151256
32	MODULE ASSEMBLY (INCLUDES ITEM 24)
33	MAY 489136
34	MAY W10141645
35	MAY 1157158
36	MAY 2252228
100	Complete Icemaker Assembly
