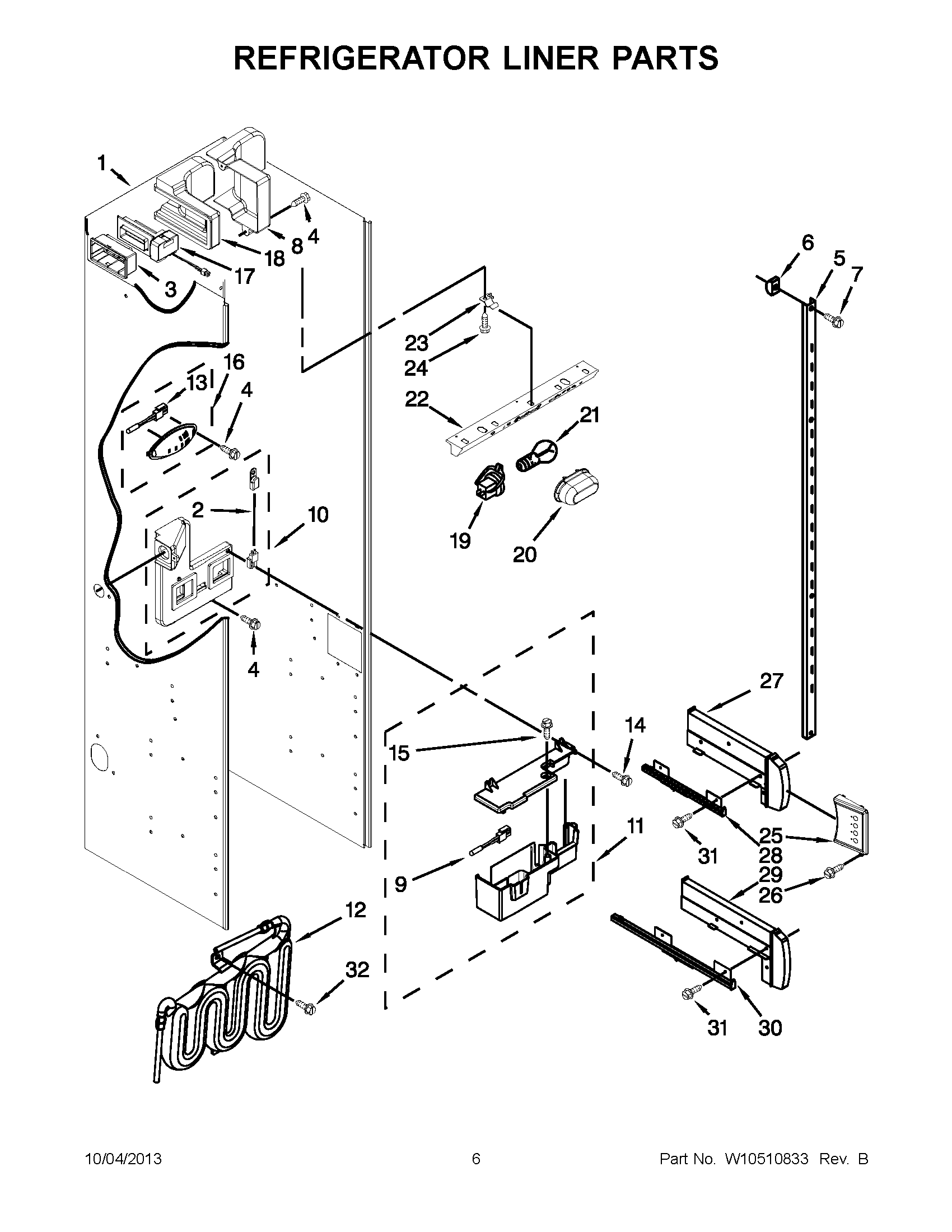

JS48PPDUDB14 04 – REFRIGERATOR LINER PARTSadmin2025-04-26T09:17:30+00:00JS48PPDUDB14 04 – REFRIGERATOR LINER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | MAY 2306010 |
| 3 | Air Duct |
| 4 | SCREW |
| 5 | Ladder, Shelf (2) |
| 6 | Screw Support, Ladder (8) |
| 7 | SCREW |
| 8 | Cover, Diffuser |
| 9 | MAY 2302937 |
| 10 | MAY W10475010 |
| 11 | MAY W10604726 |
| 12 | MAY 2327509 |
| 13 | MAY 2188820 |
| 15 | SCREW |
| 16 | ASSEMBLY, THERMISTOR |
| 17 | Air Baffle Assembly |
| 18 | Diffuser Assembly |
| 19 | MAY W10191429 |
| 20 | Light Shield |
| 21 | Bulb, Light |
| 22 | CONTROL BOX ASSEMBLY |
| 23 | MAY 2317000 |
| 24 | Screw |
| 25 | MAY W10604725 |
| 26 | SCREW (WHITE) |
| 27 | Spacer, Meat Pan (Right Side) |
| 27 | Spacer, Meat Pan (Left Side) |
| 28 | Slide, Meat Pan (Right Side) |
| 28 | Slide, Meat Pan (Left Side) |
| 29 | Spacer, Crisper (Left Side (2)) |
| 29 | Spacer, Crisper (Right Side (2)) |
| 30 | Slide, Crisper (Right Side) |
| 30 | Slide, Crisper (Left Side) |
| 31 | Screw (Right Side- (8-18 x 1.375)) |
| 31 | Screw |
| 32 | SCREW 8-15 X 3/4 |
