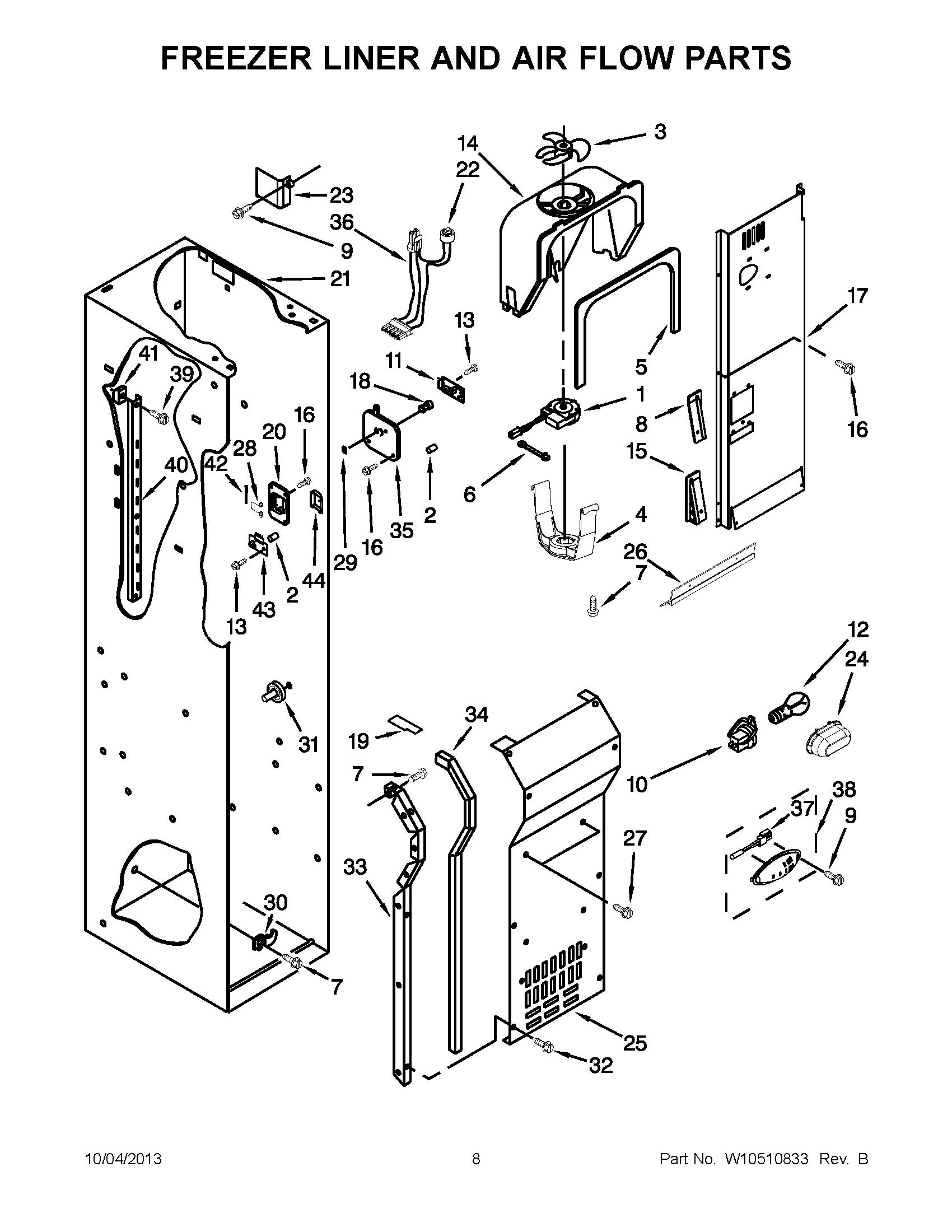

JS48PPDUDB14 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY W10436861
2MAY 2198665
3Blade, Fan (Evaporator)
4MAY W10260421
5Gasket, Cover
6MAY W10321090
7SCREW
8Wedge, Air Duct
9SCREW
10MAY W10191429
11MAY W10290817
12Bulb, Light
13Screw (2)
14Fan Scroll
15Wedge, Air Duct
16SCREW (WHITE)
17Air Duct
18MAY 2198643
19Block, Fan Scroll (Right)
19Block, Fan Scroll (Left)
20MAY W10151205
21LINER (NOT A SERVICEABLE PART)
22Defrost, Bi-Metal
23MAY 2259025
24Light Shield
25MAY W10428001
26MAY 2302851
27MAY 8281251
28SPRING, DOOR
29MAY 2315398
30MAY 1112260
31ASSEMBLY, SHELF STUD
32Screw
33Evaporator, Cover Rail (Right Side)
33Evaporator, Cover Rail (Left Side)
34Gasket (2) Evaporator Cover
35MAY W10151208
36MAY W10139189
37MAY 2306010
38ASSEMBLY, THERMISTOR
39SCREW
40MAY 2259032
41Support, Screw
42PIN, DOOR
43MAY W10193840
44MAY 2198633
