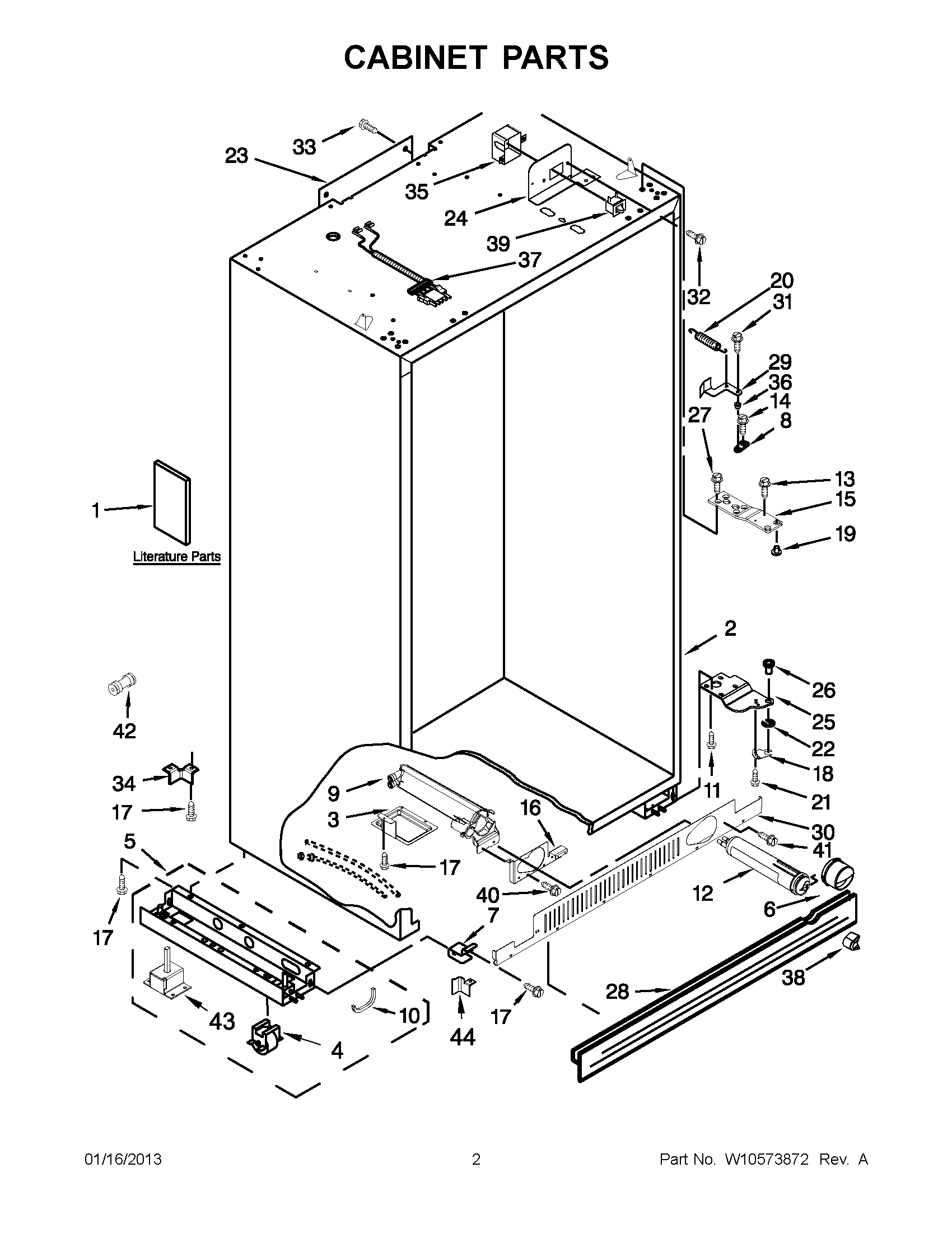

JS48PPDUDB15 01 – CABINET PARTS

Products

Position	Product
1	MAY W10379134
1	MAY W10303988
1	MAY W10477244
1	MAY 2306424
1	MAY W10483315
1	MAY W10469184
2	LINER (NOT A SERVICEABLE PART)
3	Tray, Drip Filter
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	MAY 2260518B
7	Mounting Stud, Grille
8	MAY 2320509
9	MAY W10121140
10	GROMMET, CROSSOVERTUBE
11	MAY 3400525
12	Filter, Water
13	MAY 8281164
14	MAY W10189203
15	Hinge (Top)
16	BRACKET, FILTER
17	MAY W10001250
18	Lock, Adjustable Bushing
19	MAY W10484913
20	Spring, Door Closure (Right Side)
21	Screw, Door Stop
22	Retaining Ring, Adjustable Bushing
23	Cover, Rear
24	MAY 2221097
24	MAY 2221096
25	HINGE, BOTTOM (REFRIGERATOR)
25	HINGE, BOTTOM (FREEZER)
26	MAY 2302876
27	Screw 1/4-20 x 5/8
28	Skirt-Grille, Bottom (Black)
29	EXTENSION ARM, DOOR CLOSER (LEFT HAND)
29	EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
30	MAY 2325186B
31	MAY W10004850
32	Screw
33	SCREW
34	Bracket, Support Base (Rear) (2)
35	Cover, Switch (2)
36	MAY 2316859
37	ASSEMBLY, RC WIRE
38	Button, Filter (Black)
39	MAY 1118894
39	Switch, Rocker Arm
40	Screw
41	MAY W10005050
42	CONNECTOR, UNION
43	Bracket, Support Base (Front) (Right)
43	Bracket, Support Base (Front) (Left)
44	LEVELER ASSY
