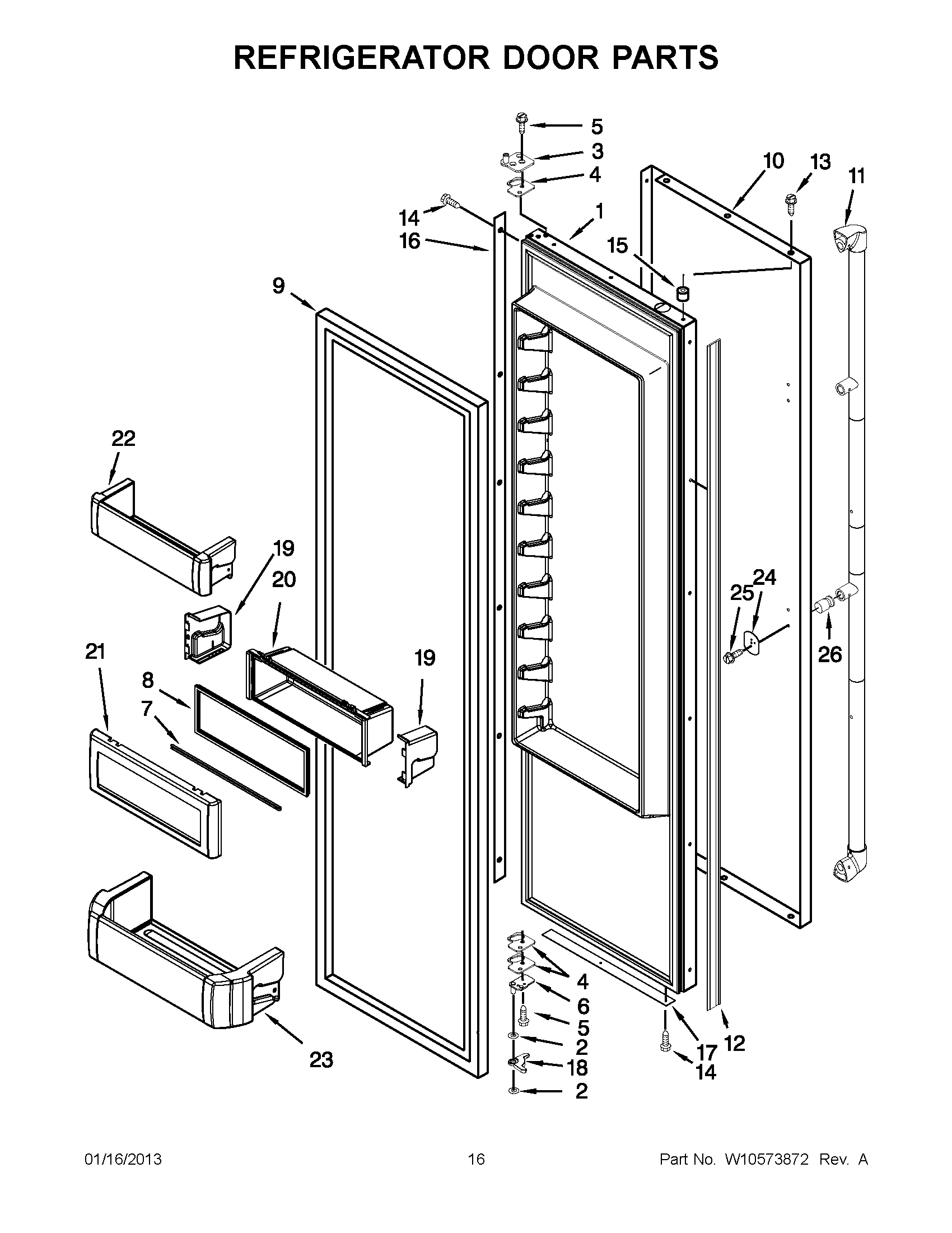

JS48PPDUDB15 08 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Item 9)
2	WASHER
3	ASSEMBLY, TOP HINGE
4	Spacer-Door, Top & Bottom
5	MAY W10162602
6	Hinge Assembly, Bottom
7	MAY 2222797
8	MAY 2222983
9	MAY 2222812
10	MAY W10523734
11	Handle, Door
12	SPACER, DOOR-SKIN (HANDLE SIDE)
13	SCREW
14	Screw, 8-15 x .500 (Stainless Steel)
15	Spacer, Door-Skin (Top)
16	SPACER, DOOR
17	Spacer, Door-Skin (Bottom)
18	MAY W10482554
19	END CAP (LEFT HAND)
19	END CAP (RIGHT HAND)
20	MAY W10323037
21	MAY 2257617
22	BIN, DOOR
23	BIN, DOOR
24	MAY W10127710
25	Screw
26	STUD, HANDLE MOUNTING
