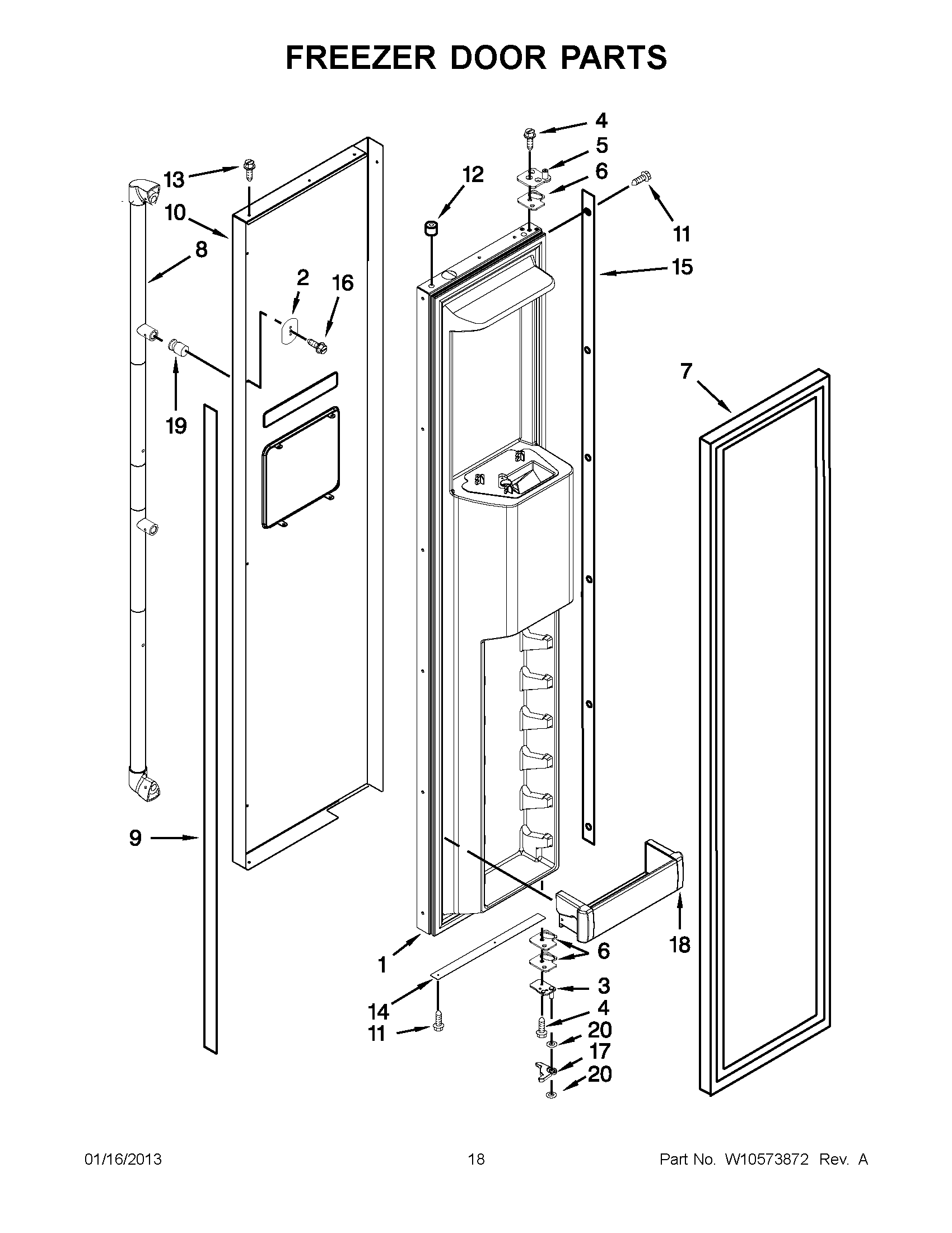

JS48PPDUDB15 09 – FREEZER DOOR PARTSadmin2025-04-26T09:16:00+00:00JS48PPDUDB15 09 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10292433 |
| 2 | MAY W10127710 |
| 3 | ASSEMBLY, BOTTOM HINGE LEAF |
| 4 | MAY W10162602 |
| 5 | ASSEMBLY, TOP HINGE |
| 6 | Spacer-Door, Top & Bottom |
| 7 | MAY 2222810 |
| 8 | Handle, Door |
| 9 | SPACER, DOOR-SKIN (HANDLE SIDE) |
| 10 | MAY W10523753 |
| 11 | Screw, 8-15 x .500 (Stainless Steel) |
| 12 | Spacer, Door-Skin (Top) |
| 13 | SCREW |
| 14 | Spacer, Door-Skin (Bottom) |
| 15 | SPACER, DOOR |
| 16 | Screw |
| 17 | MAY W10482554 |
| 18 | BIN, DOOR |
| 19 | STUD, HANDLE MOUNTING |
| 20 | WASHER |
