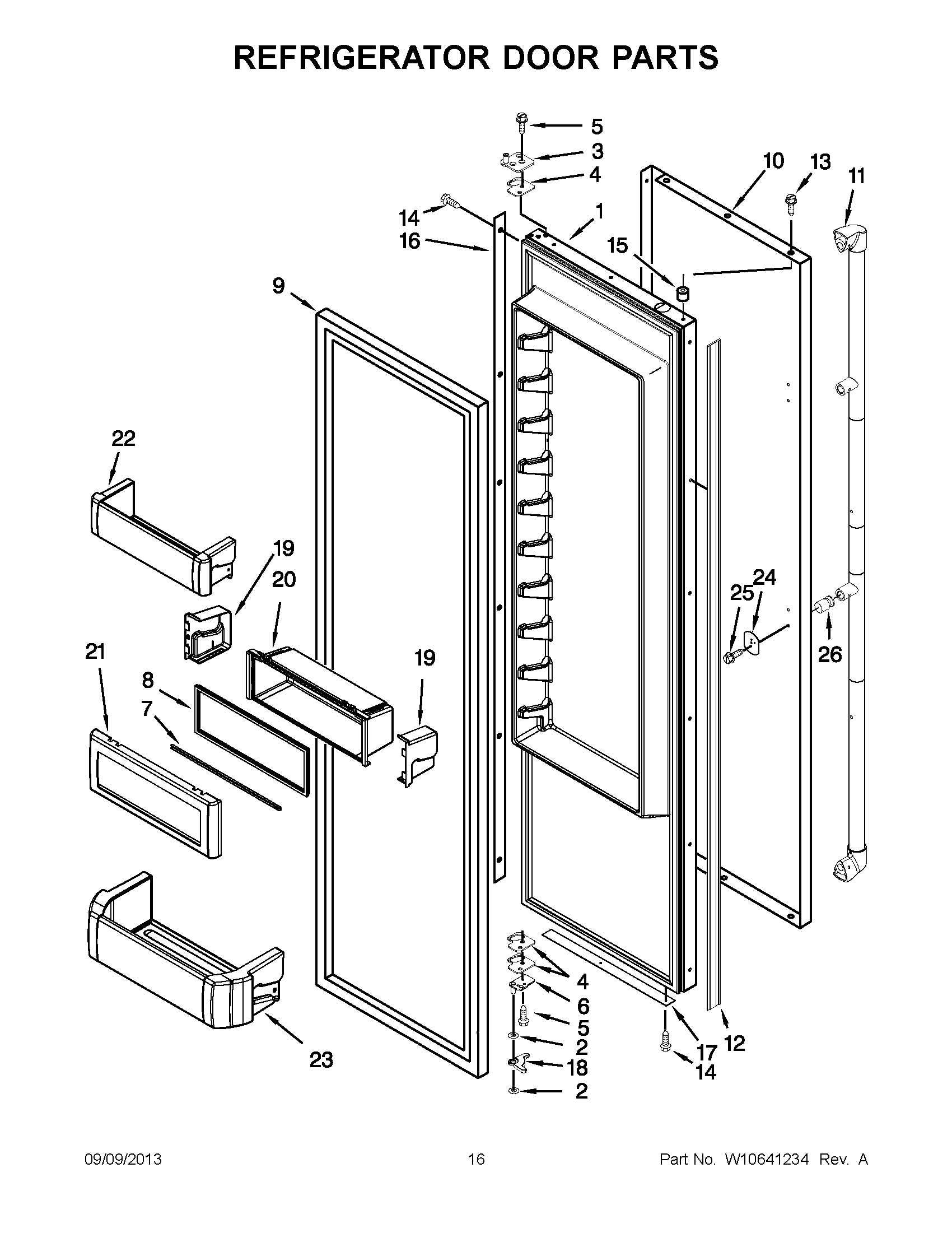

JS48PPDUDB16 09 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:13:22+00:00JS48PPDUDB16 09 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel (Includes Item 9) |
| 2 | WASHER |
| 3 | ASSEMBLY, TOP HINGE |
| 4 | Spacer-Door, Top & Bottom |
| 5 | MAY W10162602 |
| 6 | Hinge Assembly, Bottom |
| 7 | MAY 2222797 |
| 8 | MAY 2222983 |
| 9 | MAY 2222812 |
| 10 | MAY W10523734 |
| 11 | Handle, Door |
| 12 | SPACER, DOOR-SKIN (HANDLE SIDE) |
| 13 | SCREW |
| 14 | Screw, 8-15 x .500 (Stainless Steel) |
| 15 | Spacer, Door-Skin (Top) |
| 16 | SPACER, DOOR |
| 17 | Spacer, Door-Skin (Bottom) |
| 18 | MAY W10482554 |
| 19 | END CAP (LEFT HAND) |
| 19 | END CAP (RIGHT HAND) |
| 20 | MAY W10323037 |
| 21 | MAY 2257617 |
| 22 | BIN, DOOR |
| 23 | BIN, DOOR |
| 24 | MAY W10127710 |
| 25 | Screw |
| 26 | STUD, HANDLE MOUNTING |
