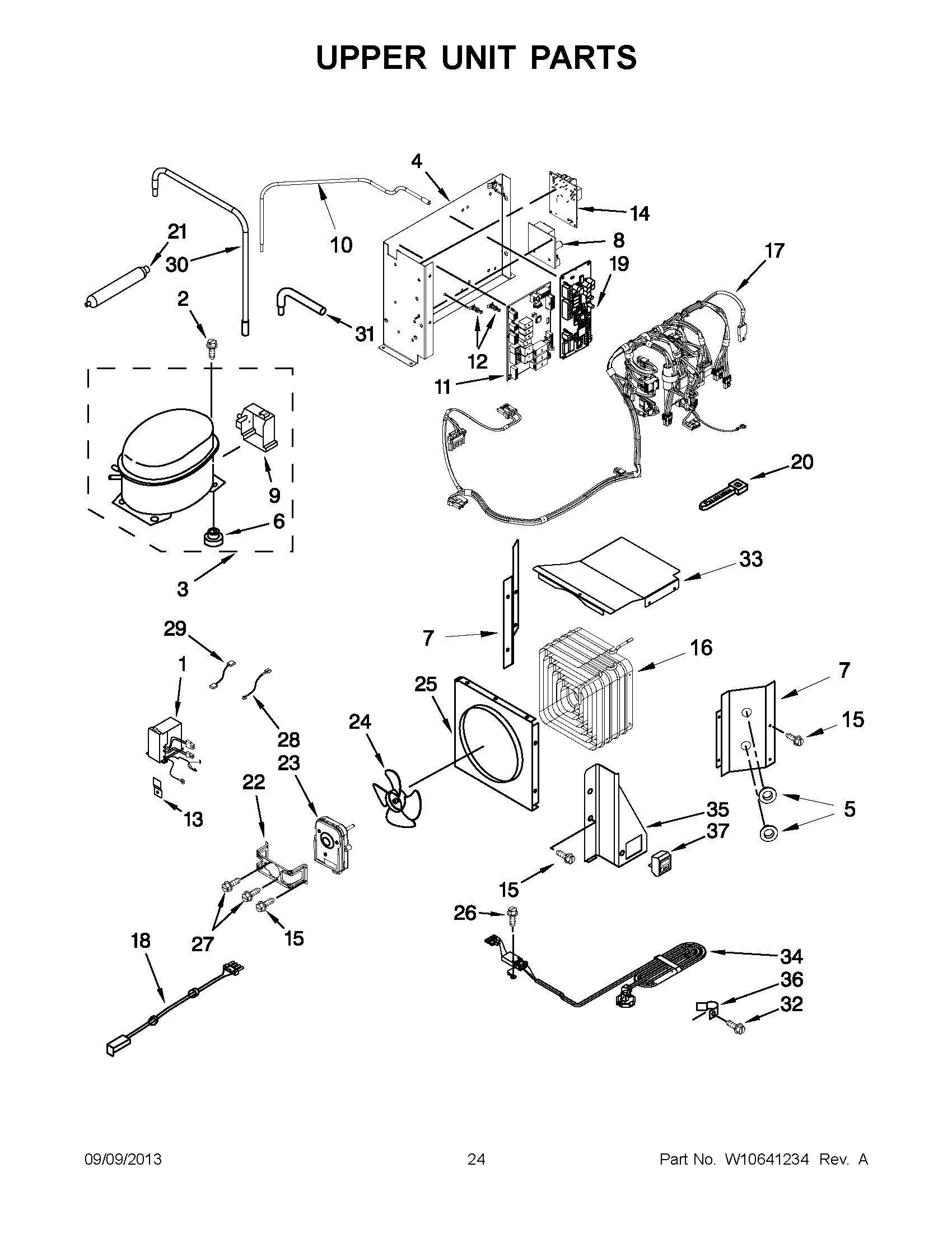

JS48PPDUDB16 13 – UPPER UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10449006
2	MAY 489373
3	MAY W10173296
4	MAY W10321056
5	MAY W10587113
6	Grommet (Production)
7	MAY W10525179
7	MAY W10525177
8	Power Supply, Ingredient Care Center
9	MAY 2215676
10	MAY W10625011
11	BOARD, CONTROL
12	Spacer (5)
13	Bracket, Inverter Box
14	CONTROL, ELECTRONIC
15	MAY 1157158
17	MAY W10427091
18	MAY 2310207
19	Control Board
20	MAY 2155774
21	MAY W10175593
22	BRACKET, FAN MOTOR (CONDENSER FAN)
23	MAY 2188875
24	MAY W10139483
25	MAY W10415670
26	Screw, Ground
27	MAY 8533993
28	MAY W10495645
29	MAY W10483905
30	MAY W10624944
31	MAY W10528578
32	SCREW
33	TOP COVER, CONDENSER
34	MAY 2310251
35	MAY W10321055
36	MAY 549193
37	Switch, Power Disconnect
