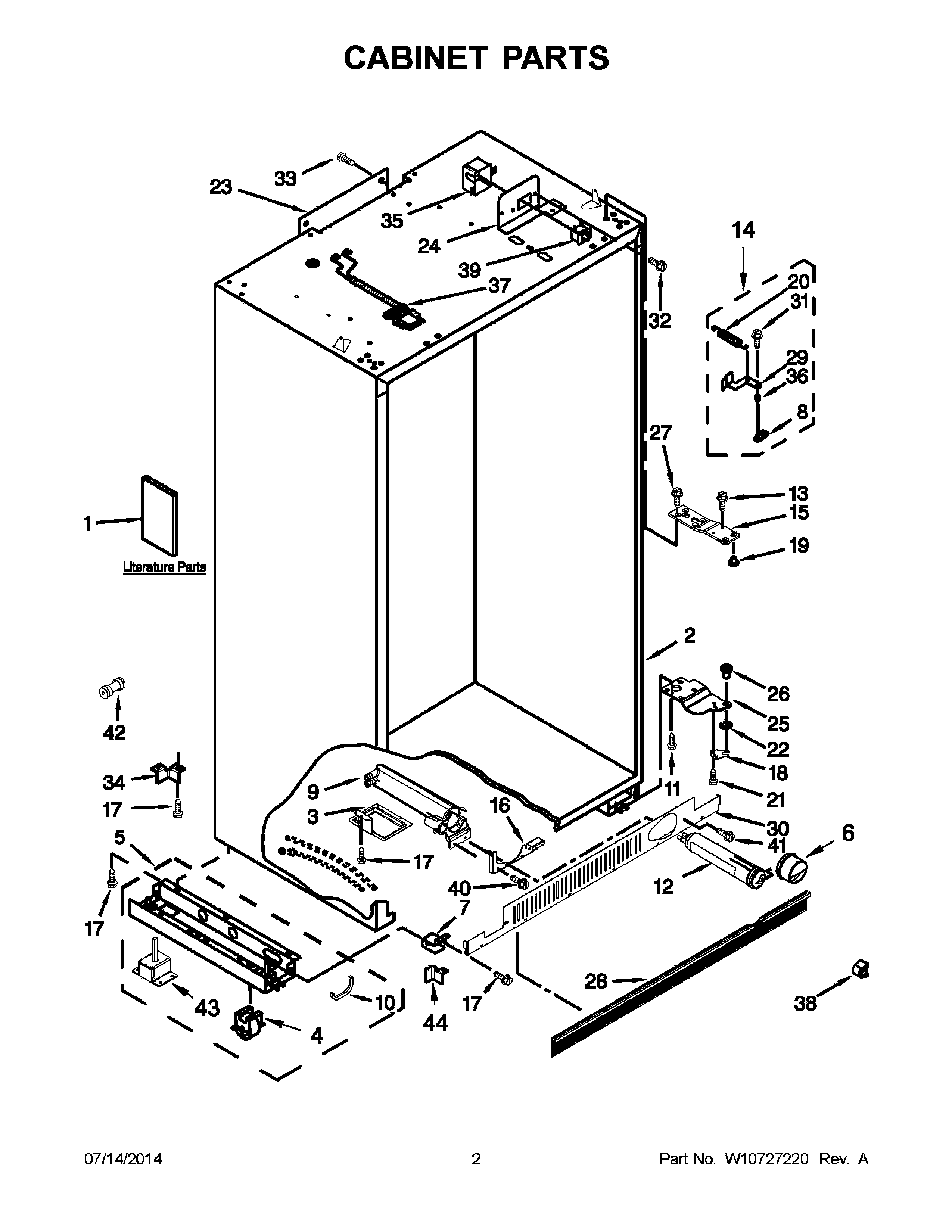

JS48PPDUDB20 02 – CABINET PARTS

JS48PPDUDB20 02 – CABINET PARTS

Written by

in

JS48PPDUDB20 02 – CABINET PARTS

Products

PositionProduct
1EMAY W10681453
1MAY W10681397
1CMAY 2306424
1AMAY W10703432
1BMAY W10483315
1DMAY W10469184
2LINER (NOT A SERVICEABLE PART)
3Tray, Drip Filter
4MAY W10138054
5ASUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6MAY 2260518B
7Mounting Stud, Grille
8MAY 2320509
9MAY W10121140
10GROMMET, CROSSOVERTUBE
11MAY 3400525
12Filter, Water
13MAY 8281164
14AASSEMBLY, LIGHT SWITCH CAM (LEFT HAND)
14ASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
15Hinge (Top)
16MAY W10674648
17MAY W10001250
18Lock, Adjustable Bushing
19MAY W10484913
20Spring, Door Closure (Right Side)
21Screw, Door Stop
22Retaining Ring, Adjustable Bushing
23Cover, Rear
24MAY 2221097
24AMAY 2221096
25HINGE, BOTTOM (REFRIGERATOR)
25AHINGE, BOTTOM (FREEZER)
26MAY 2302876
27Screw 1/4-20 x 5/8
28SKIRT-GRILLE, BOTTOM
29EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
29AEXTENSION ARM, DOOR CLOSER (LEFT HAND)
30GRILLE BOTTOM, FRONT
31MAY W10485630
32Screw
33SCREW
34Bracket, Support Base (Rear) (2)
35Cover, Switch (2)
36MAY 2316859
37ASSEMBLY, RC WIRE
38Button, Filter (Black)
39MAY 1118894
39ASwitch, Rocker Arm
40Screw
41MAY W10005050
42CONNECTOR, UNION
43LEVELER ASSY
44Bracket, Support Base (Front) (Right)
44ABracket, Support Base (Front) (Left)
