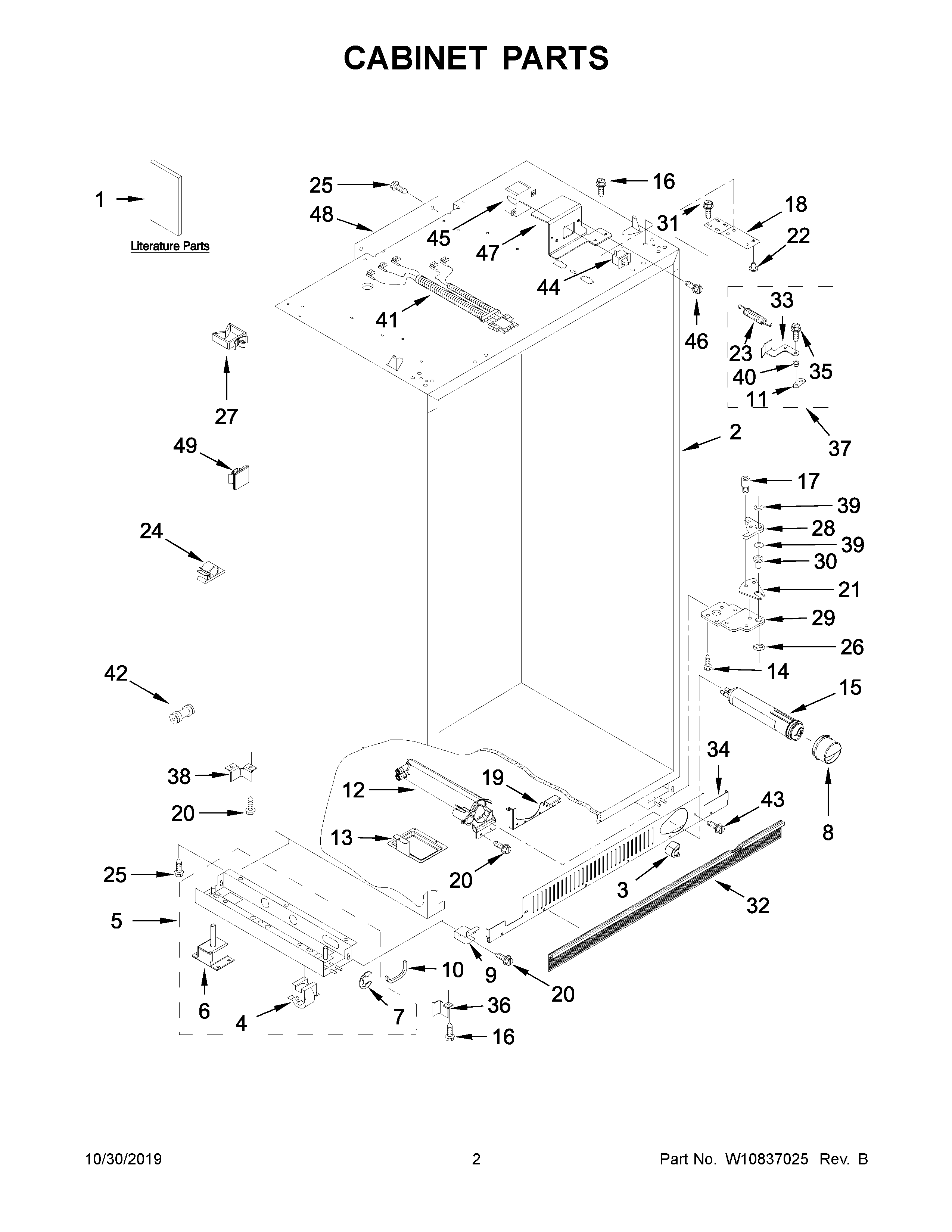

JS48PPDUDE00 02 – CABINET PARTS

Products

Position	Product
1C	TECH SHEET (FRENCH)
1	USE AND CARE GUIDE
1B	TECH SHEET (ENGLISH)
1D	INSTALLATION INSTRUCTIONS
1A	MAY W10826673
2	LINER (NOT A SERVICEABLE PART)
3	Button, Filter (Black)
4	MAY W10138054
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	LEVELER ASSY
7	Ring, Retainer
8	CAP, WATER FILTER (BLACK)
9	Mounting Stud, Grille
10	GROMMET, CROSSOVERTUBE
11	MAY 2320509
12	MAY W10121140
13	Tray, Drip Filter
14	MAY 3400525
15	Filter, Water
16	Screw 8-32 x 5/16
17	Screw, Door Stop
18	Hinge (Top)
19	MAY W10674648
20	MAY W10001250
21	Lock, Adjustable Bushing
22	MAY W10484913
23	Spring, Door Closure (Right Side)
24	CLIP
25	MAY 1157158
26	Retaining Ring, Adjustable Bushing
27	Wire Clip (5)
28	MAY W10482554
29	HINGE, BOTTOM (FREEZER)
29A	HINGE, BOTTOM (REFRIGERATOR)
30	MAY 2302876
31	Screw 1/4-20 x 5/8
32	SKIRT-GRILLE, BOTTOM
33	ARM, DOOR CLOSER EXTENSION (LEFT HAND)
33A	EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
34	GRILLE BOTTOM, FRONT
35	MAY W10485630
36A	Bracket, Support Base (Front) (Right)
36	Bracket, Support Base (Front) (Left)
37	ASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
37A	ASSEMBLY, LIGHT SWITCH CAM (LEFT HAND)
38	Bracket, Support Base (Rear) (2)
39	WASHER
40	MAY 2316859
41	ASSEMBLY, SWITCH WIRE
42	CONNECTOR, UNION
43	MAY W10005050
44	MAY 1118894
44A	Switch, Rocker Arm
45	Cover, Switch (2)
46	Screw
47A	BRACKET, SWITCH (RIGHT HAND)
47	BRACKET, SWITCH (LEFT HAND)
48	Cover, Rear
49	WPM0104106 Whirlpool Refrigerator Clip
