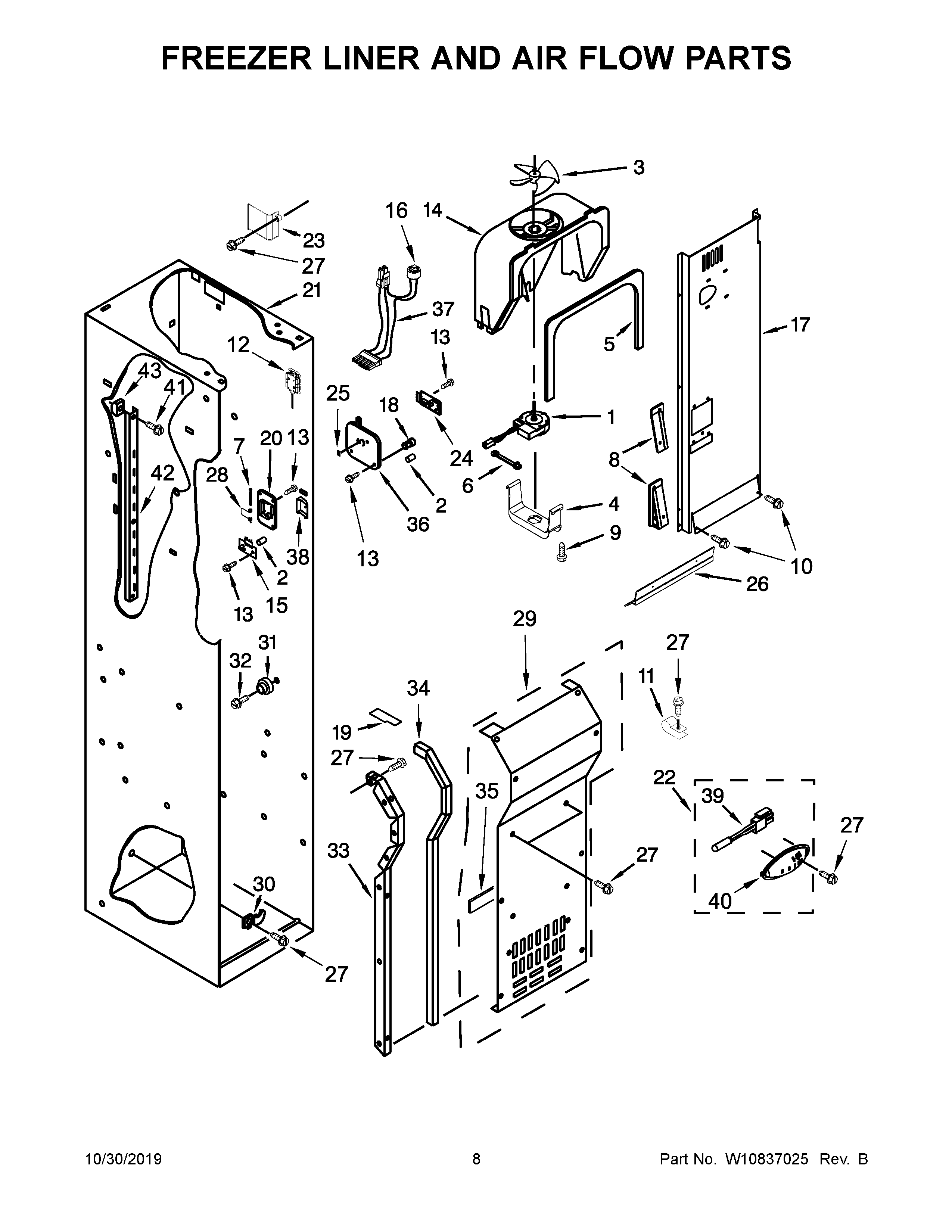

JS48PPDUDE00 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY W10436861
2MAY 2198665
3Blade, Fan (Evaporator)
4MAY W10260421
5Gasket, Cover
6MAY W10321090
7PIN, DOOR
8WEDGE, AIR DUCT (LEFT HAND)
8AWEDGE, AIR DUCT (RIGHT HAND)
9SCREW
10SCREW (BLACK)
11MAY 2221070
12ASSEMBLY, LED MODULE
13Screw (2)
14Fan Scroll
15MAY W10193840
16Defrost, Bi-Metal
17MAY W10769282
18MAY 2198643
19ABlock, Fan Scroll (Right)
19Block, Fan Scroll (Left)
20COVER, EMITTER
21LINER (NOT A SERVICEABLE PART)
22ASSEMBLY, THERMISTOR
23COVER, AIR OUTLET
24MAY W10290817
25SLIDE, ICEMAKER SHUT OFF
26MAY W10745665
27SCREW (BLACK)
28SPRING, DOOR
29MAY W10748861
30MAY 1112260
31ASSEMBLY, SHELF STUD (INCLUDES SCREW)
32SCREW (BLACK)
33AEvaporator, Cover Rail (Right Side)
33Evaporator, Cover Rail (Left Side)
34GASKET, EVAPORATOR COVER
35GASKET, EVAPORATOR COVER
36COVER, RECEIVER
37MAY W10482187
38FLIPPER, SHUT OFF
39MAY 2306010
40COVER, THERMISTOR
41MAY W10832438
42LADDER, SHELF
43Support, Screw
