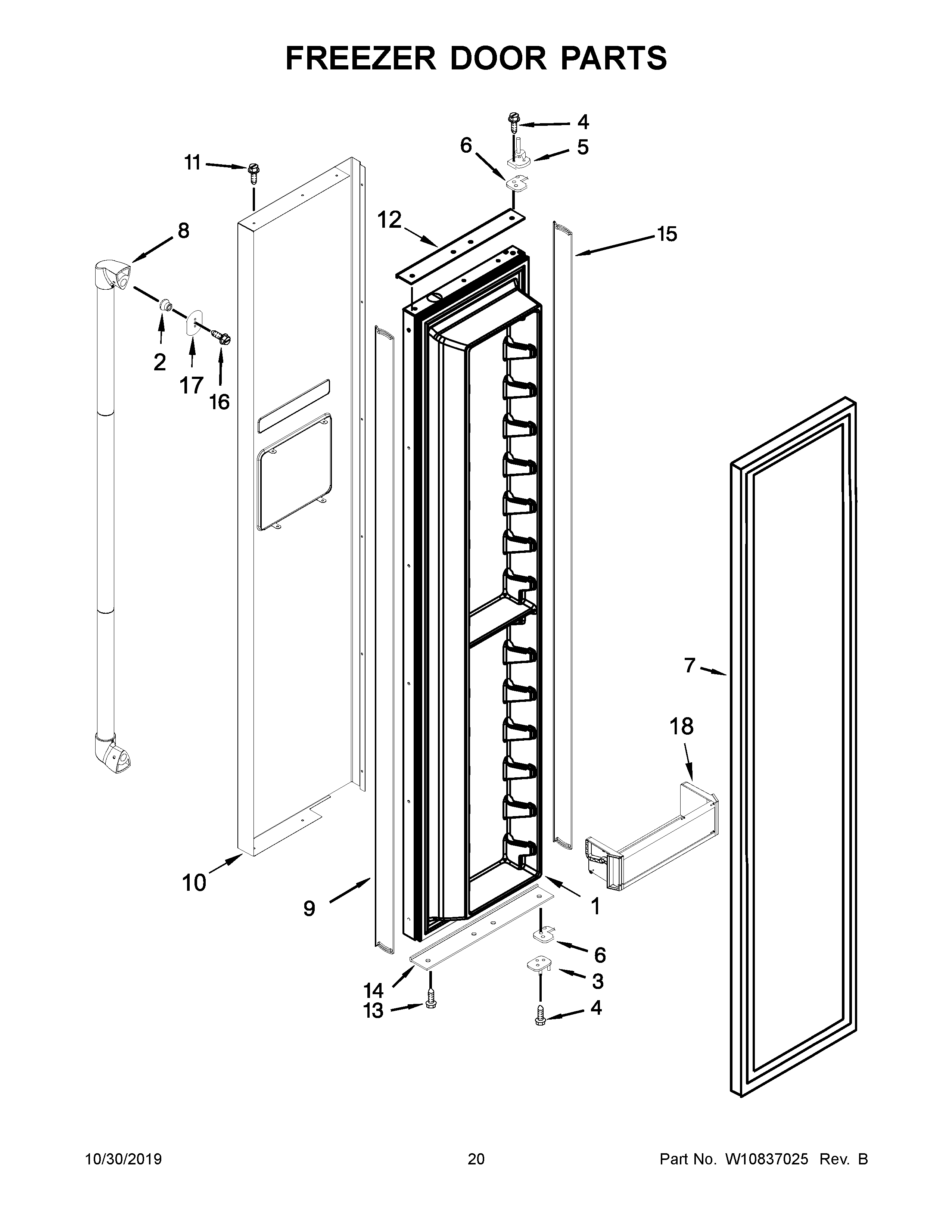

JS48PPDUDE00 11 – FREEZER DOOR PARTSadmin2025-04-26T09:16:04+00:00JS48PPDUDE00 11 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10783292 |
| 2 | STUD, HANDLE MOUNTING |
| 3 | ASSEMBLY, BOTTOM HINGE LEAF |
| 4 | MAY W10162602 |
| 5 | ASSEMBLY, TOP HINGE |
| 6 | Spacer-Door, Top & Bottom |
| 7 | GASKET, DOOR (BLACK) |
| 8 | HANDLE, DOOR (STAINLESS) |
| 9 | SPACER, HANDLE SIDE DOOR |
| 10 | MAY W10756226 |
| 11 | Screw, 8-15 x .500 (Stainless Steel) |
| 12 | MAY W10758114 |
| 13 | SCREW |
| 14 | MAY W10766559 |
| 15 | SPACER, HINGE SIDE DOOR |
| 16 | Screw |
| 17 | MAY W10127710 |
| 18 | BIN, SHALLOW |
