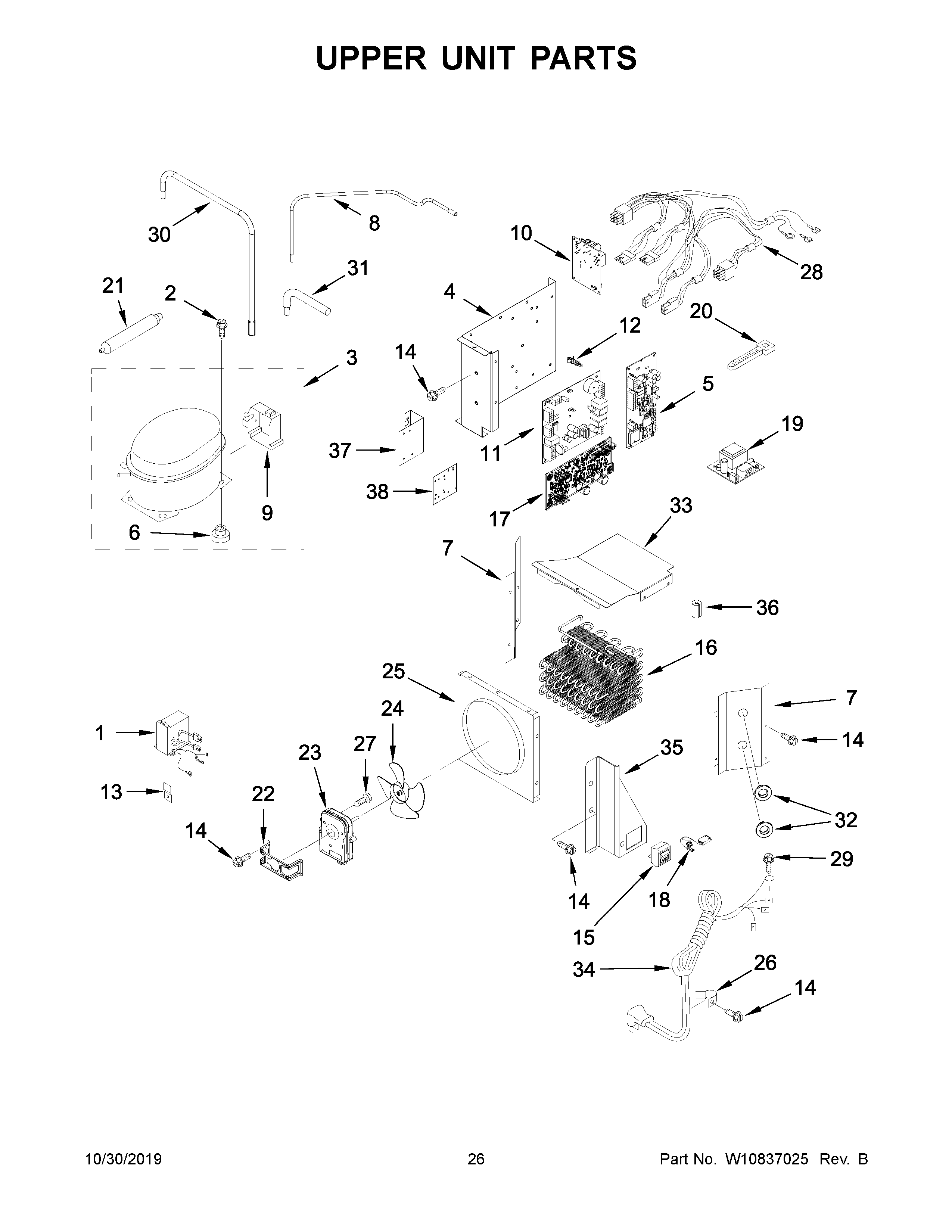

JS48PPDUDE00 14 – UPPER UNIT PARTSadmin2025-04-26T09:16:44+00:00JS48PPDUDE00 14 – UPPER UNIT PARTS
Products
| Position | Product |
|---|
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (3/4``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | MAY 876764 |
| 1 | MAY W10645666 |
| 2 | MAY 489373 |
| 3 | MAY W10653005 |
| 4 | HOUSING, CONTROL BOARD MOUNTING |
| 5 | Control Board |
| 6 | Grommet (Production) |
| 7 | MAY W10525177 |
| 7A | MAY W10525179 |
| 8 | MAY W10625009 |
| 9 | MAY 2215676 |
| 10 | SUPPLY, POWER |
| 11 | Control-Elek, I/O |
| 12 | Spacer (5) |
| 13 | Bracket, Inverter Box |
| 14 | MAY 1157158 |
| 15 | Switch, Power Disconnect |
| 16 | MAY W10591457 |
| 17 | MAY W10790783 |
| 18 | ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER CORD) |
| 19 | Power Supply, Ingredient Care Center |
| 20 | MAY 2155774 |
| 21 | MAY W10175593 |
| 22 | BRACKET, FAN MOTOR (CONDENSER FAN) |
| 23 | MOTOR, CONDENSER FAN |
| 24 | MAY W10139483 |
| 25 | MAY W10415670 |
| 26 | MAY 549193 |
| 27 | MAY W10146359 |
| 28 | ASSEMBLY, UNIT WIRE |
| 29 | Screw, Ground |
| 30 | MAY W10624944 |
| 31 | MAY W10528578 |
| 32 | MAY W10587113 |
| 33 | TOP COVER, CONDENSER |
| 34 | Service Cord |
| 35 | MAY W10321055 |
| 36 | GROMMET, CONDENSER |
| 37 | PLATE, CIRCUIT BOARD |
| 38 | PLATE, CIRCUIT BOARD (TOP) |
