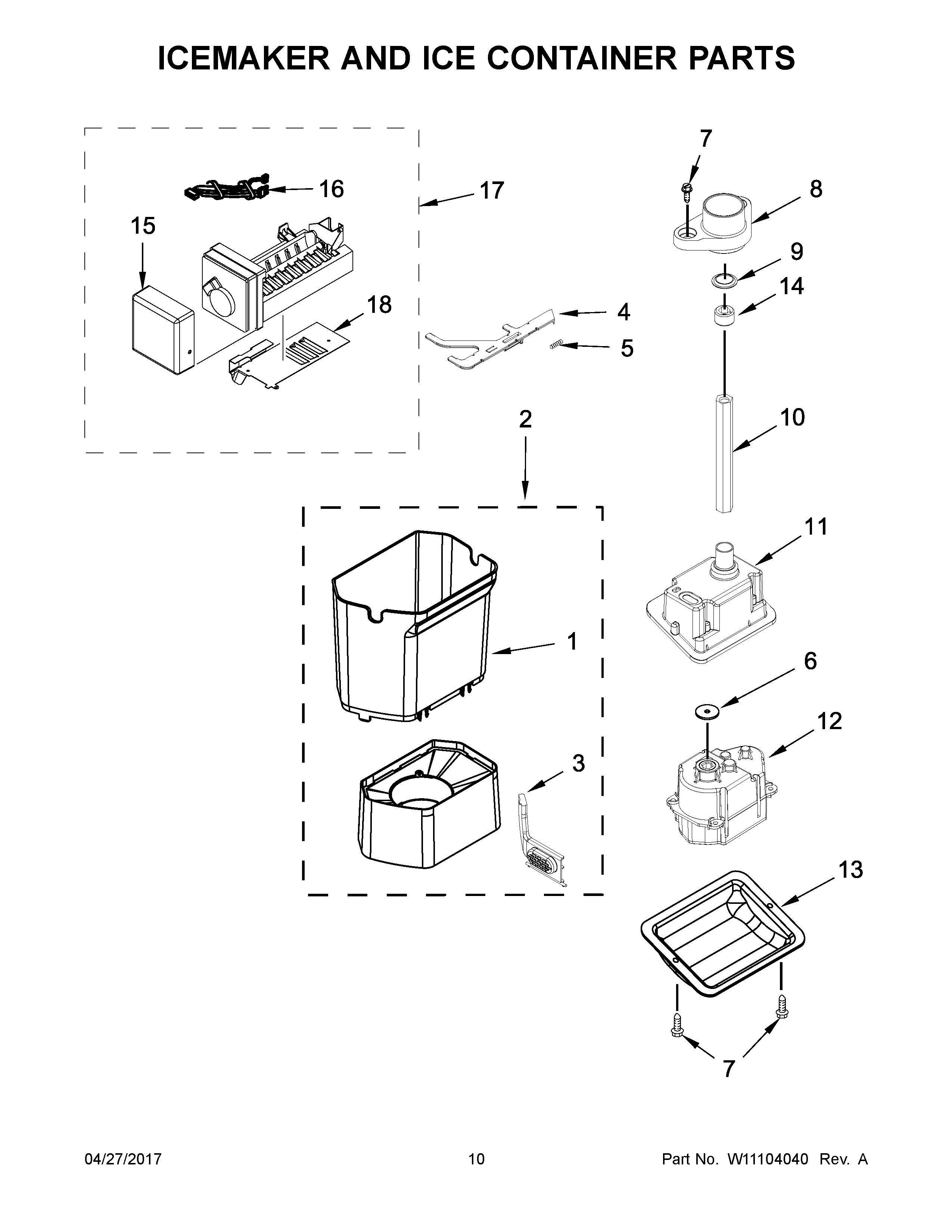

JS48PPDUDE01 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1BIN, ICE
2MAY W10784413
3BUTTON, BIN
4LATCH, BIN
5MAY 2198608
6WASHER, RUBBER
7Screw
8CLIP, SHAFT
9MAY 2198628
10DRIVE SHAFT
11ENCLOSURE, MOTOR
12MOTOR, DISPENSER
13COVER, MOTOR
14SLEEVE, COUPLING
15COVER, ICEMAKER
16MAY W10508659
17COMPLETE ICEMAKER ASSEMBLY
18BRACKET, ICEMAKER MOUNTING
