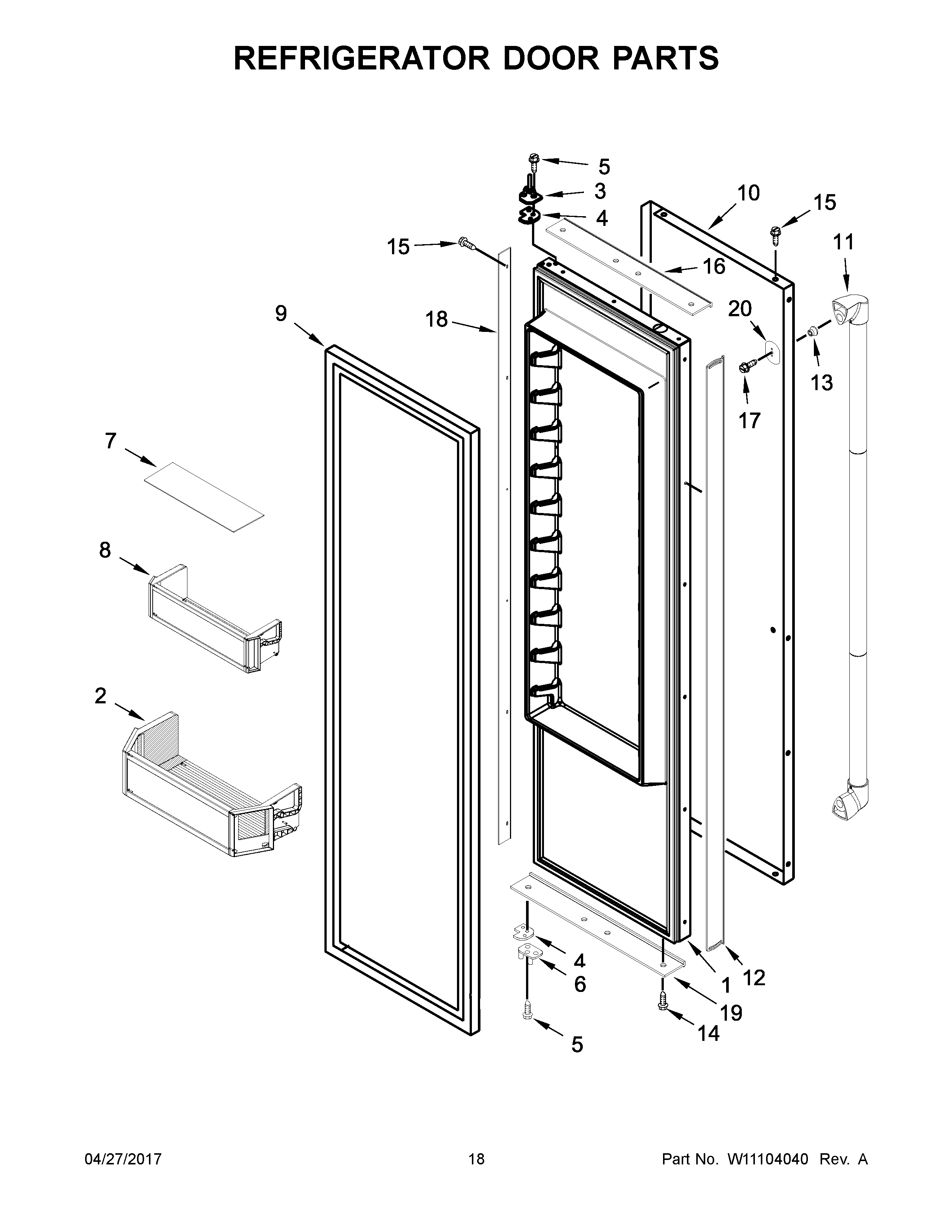

JS48PPDUDE01 10 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:15:14+00:00JS48PPDUDE01 10 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10783291 |
| 2 | BIN, GALLON DOOR |
| 3 | ASSEMBLY, TOP HINGE |
| 4 | Spacer-Door, Top & Bottom |
| 5 | MAY W10162602 |
| 6 | Hinge Assembly, Bottom |
| 7A | MAT, DOOR BIN (GALLON) |
| 7 | MAT, DOOR BIN (SHALLOW) |
| 8 | BIN, SHALLOW DOOR |
| 9 | GASKET, DOOR (BLACK) |
| 10 | MAY W10756459 |
| 11 | HANDLE, DOOR (STAINLESS) |
| 12 | SPACER, HANDLE SIDE DOOR |
| 13 | STUD, HANDLE MOUNTING |
| 14 | SCREW |
| 15 | Screw, 8-15 x .500 (Stainless Steel) |
| 16 | MAY W10766560 |
| 17 | Screw |
| 18 | SPACER, HINGE SIDE DOOR |
| 19 | MAY W10766561 |
| 20 | MAY W10127710 |
