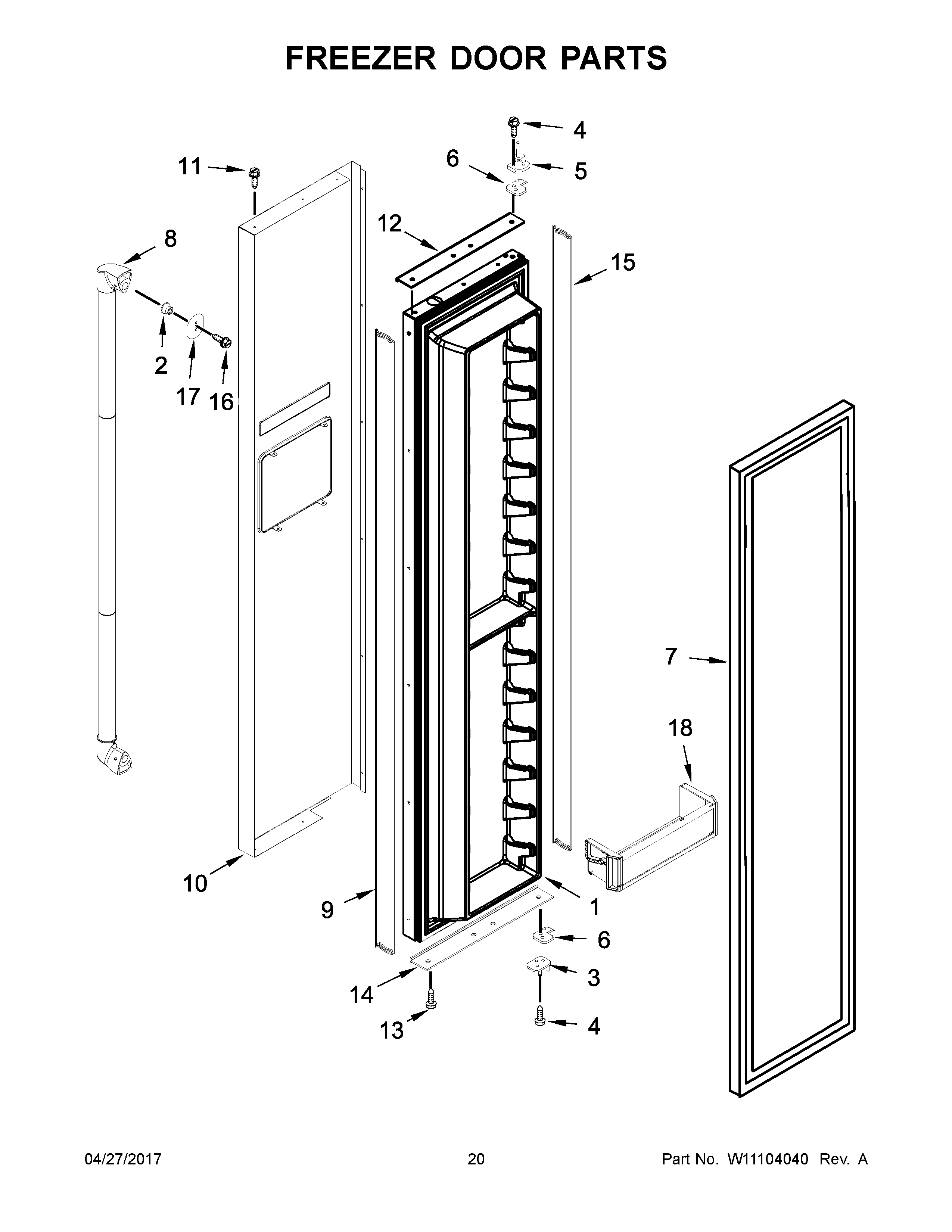

JS48PPDUDE01 11 – FREEZER DOOR PARTS

Products

PositionProduct
1MAY W10783292
2STUD, HANDLE MOUNTING
3ASSEMBLY, BOTTOM HINGE LEAF
4MAY W10162602
5ASSEMBLY, TOP HINGE
6Spacer-Door, Top & Bottom
7GASKET, DOOR (BLACK)
8HANDLE, DOOR (STAINLESS)
9SPACER, HANDLE SIDE DOOR
10MAY W10756226
11Screw, 8-15 x .500 (Stainless Steel)
12MAY W10758114
13SCREW
14MAY W10766559
15SPACER, HINGE SIDE DOOR
16Screw
17MAY W10127710
18BIN, SHALLOW
