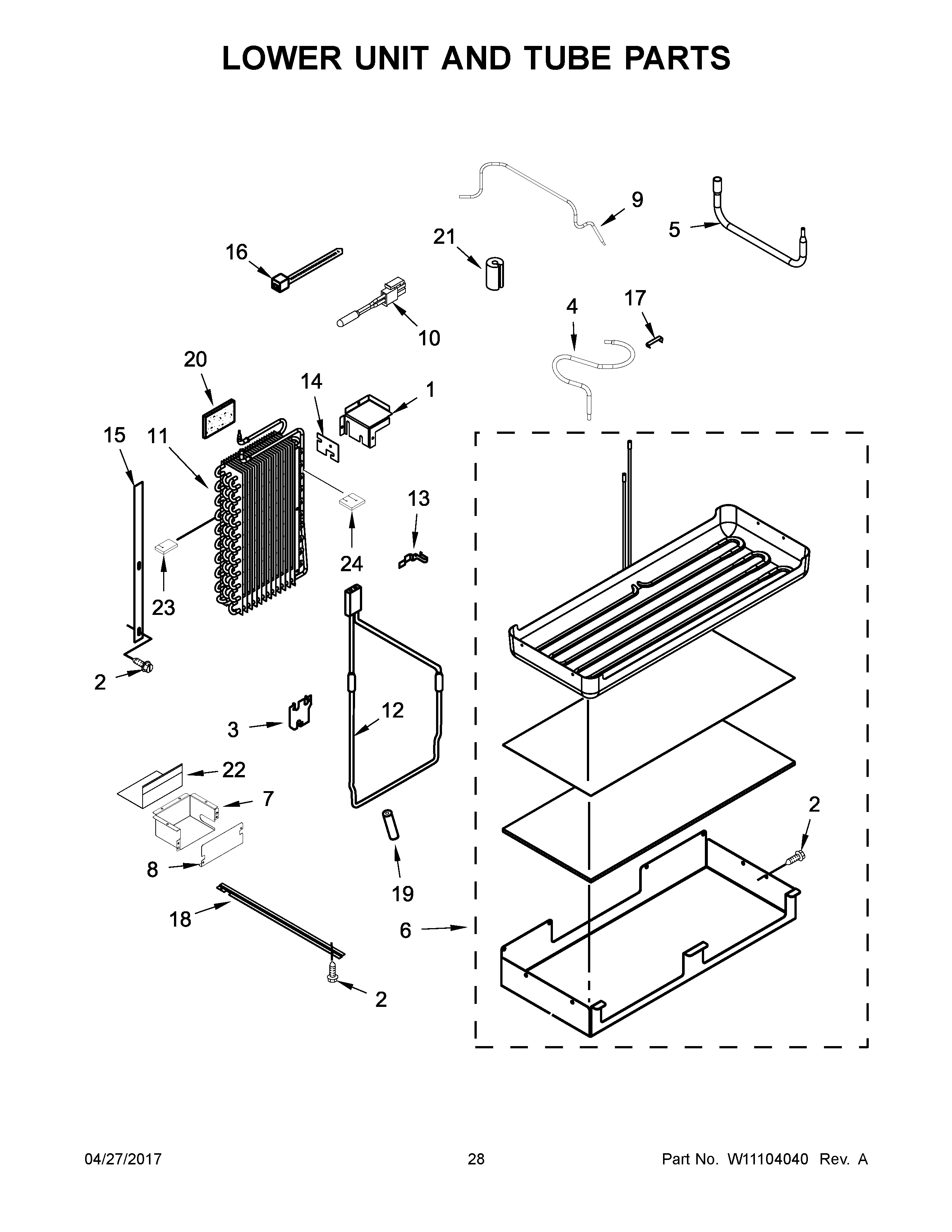

JS48PPDUDE01 15 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	Bracket Assembly, Air Return
2	Screw
3	Bracket
4	MAY W10648568
5	TUBE, CONNECT (DRIER/RESTRICTOR)
6	MAY W10281063
7	MAY W10309012
8	MAY W10321048
9	TUBE, DISCHARGE
10	MAY 2188820
11	MAY W10427993
12	MAY W10140162
13	MAY 1113048
14	Cover Seal, Evaporator Tubes
15	MAY W10432308
16	MAY 2155774
17	MAY W10169509
18	MAY 2320554
19	Dampener
20	SEALER, INSULATION
21	GROMMET, AIR RETURN
22	MAY W10321050
23	BLOCK, EVAPORATOR SIDE
24	SEAL, RETURN AIR
