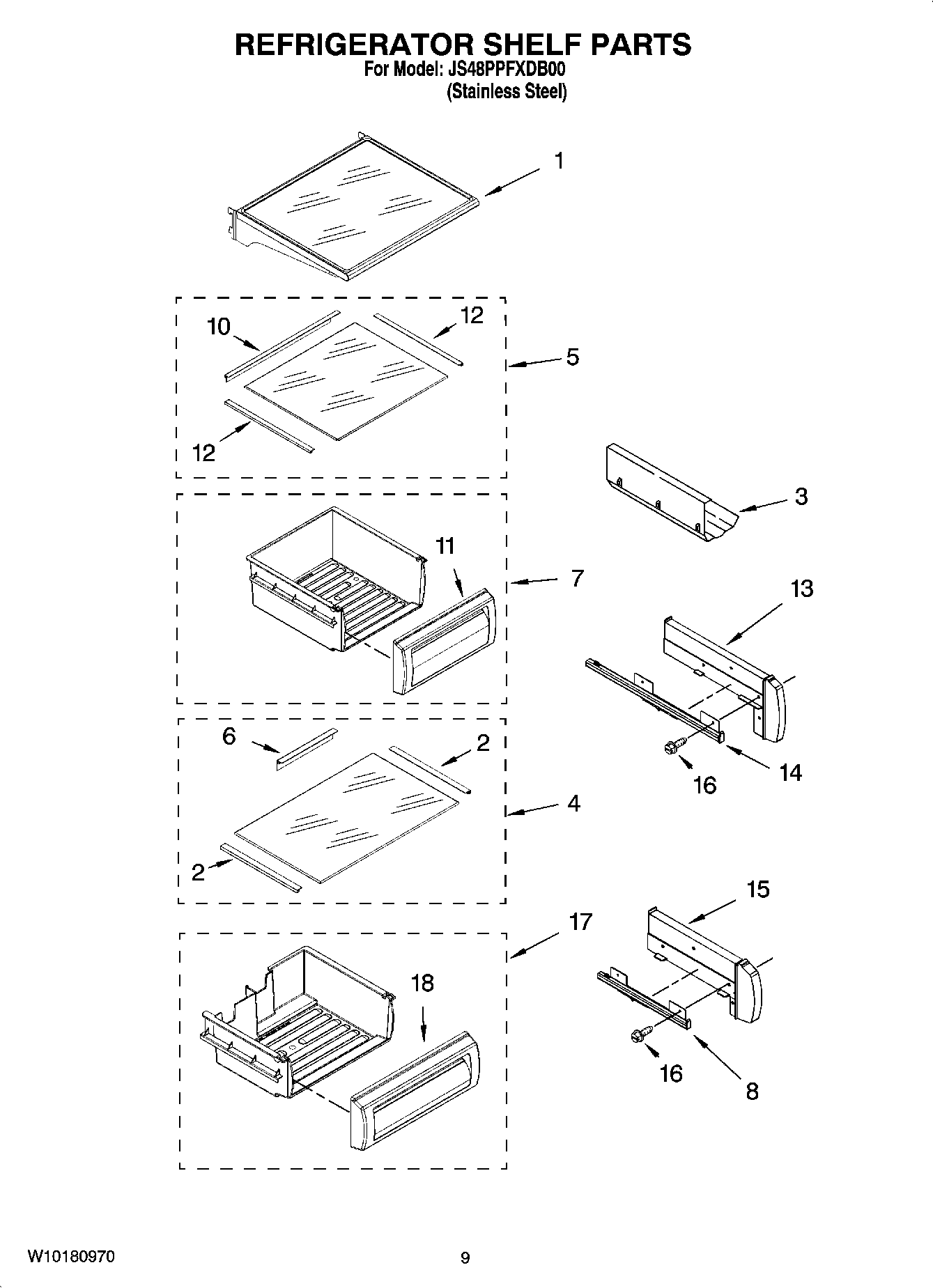

JS48PPFXDB00 07 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Shelf Assy (4)
2	MAY 2256250
3	Rack, Wine
4	Meat Pan Cover Assembly
5	Crisper Cover Assembly
6	MAY 2257583
7	MAY 2252413
8	Slide, Meat Pan (Left Side)
8	Slide, Meat Pan (Right Side)
10	MAY 2256255
11	MAY 2256249
12	Trim, Glass Side Crisper Pan
13	Spacer, Crisper (Right Side (2))
13	Spacer, Crisper (Left Side (2))
14	Slide, Crisper (Right Side)
14	Slide, Crisper (Left Side)
15	Spacer, Meat Pan (Right Side)
15	Spacer, Meat Pan (Left Side)
16	Screw (Right Side- (8-18 x 1.375))
17	MAY 2256370
18	Front, Meat Pan
