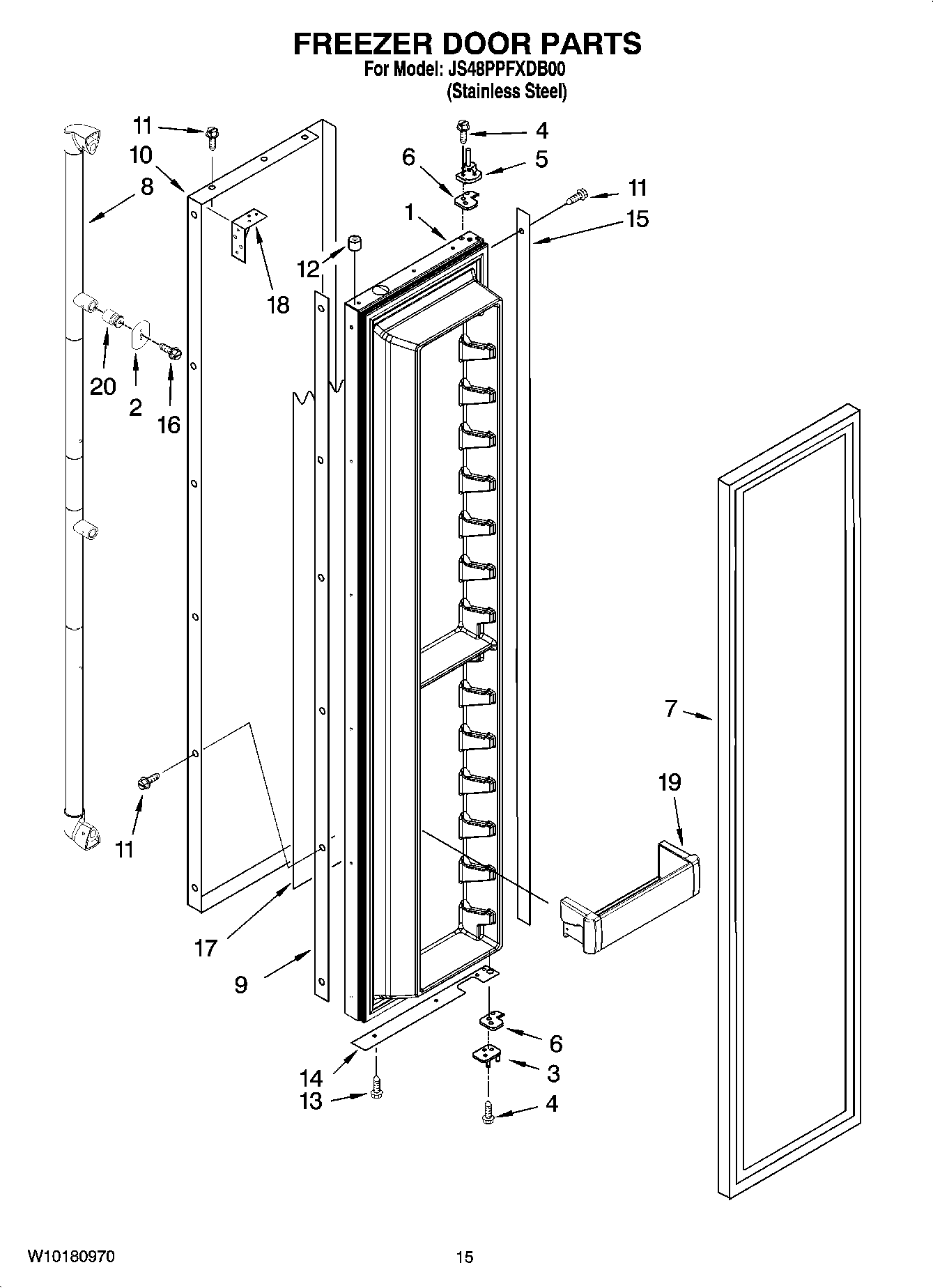

JS48PPFXDB00 10 – FREEZER DOOR PARTS

JS48PPFXDB00 10 – FREEZER DOOR PARTS

Written by

in

JS48PPFXDB00 10 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 14)
2	MAY W10127710
3	ASSEMBLY, BOTTOM HINGE LEAF
4	MAY 489282
5	MAY 2266854
6	Spacer-Door, Top & Bottom
7	MAY 2222810
8	Handle, Door
9	MAY 2309056
10	MAY W10144967
11	Screw, 8-15 x .500 (Stainless Steel)
12	Spacer, Door-Skin (Top)
13	SCREW
14	Spacer, Door-Skin (Bottom)
15	Spacer, Door-Skin (Hinge Side)
16	Screw
17	MAY 2005323
18	Brace, Door Corner
19	Bin, Door (6)
20	STUD, HANDLE MOUNTING
