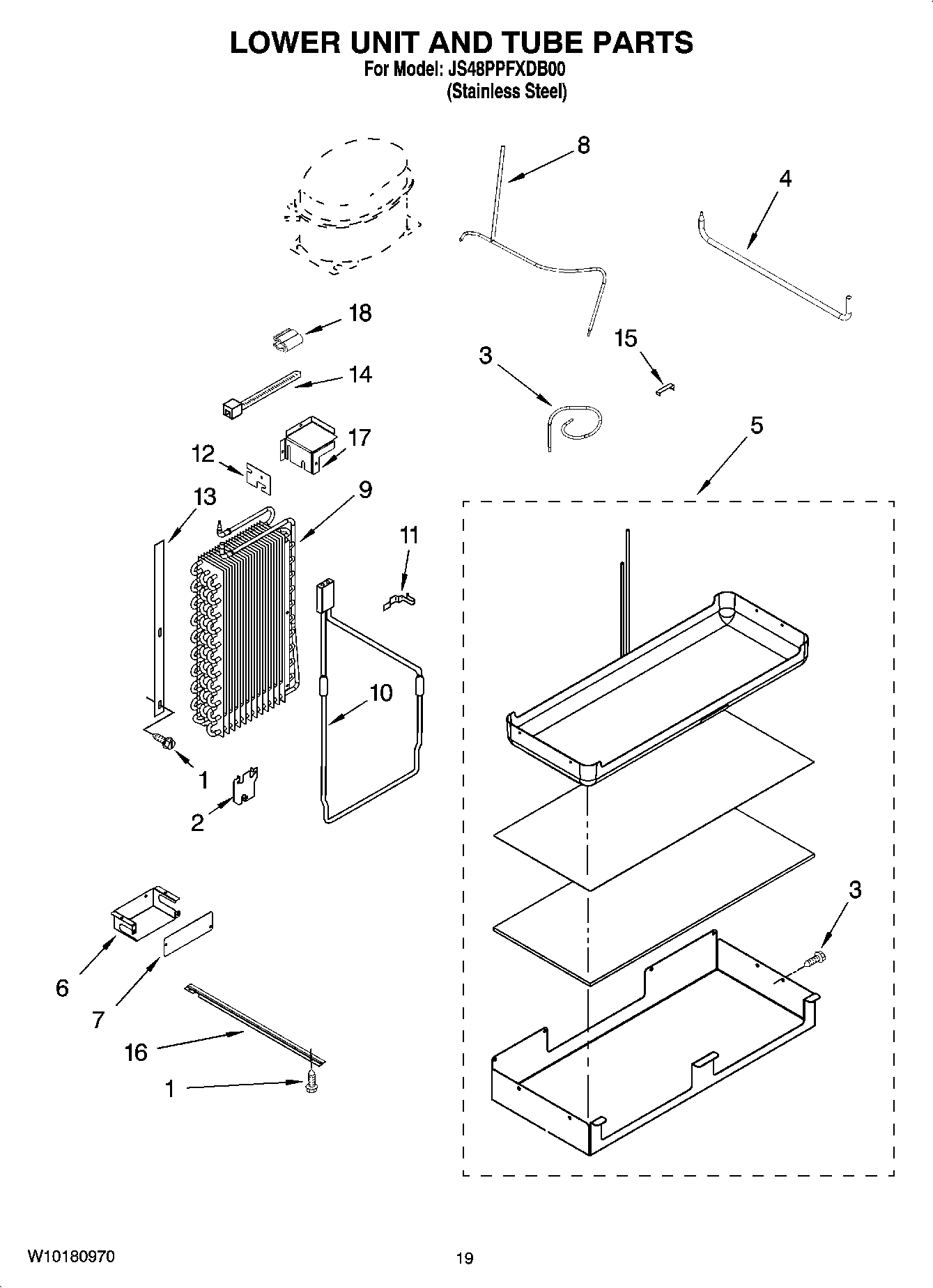

JS48PPFXDB00 12 – LOWER UNIT AND TUBE PARTS

Written by

Products

Position	Product
1	SCREW
2	Bracket
3	MAY 2309076
4	Tube, Connect (Drier/Restrictor)
5	MAY 2320615
6	MAY W10151288
7	MAY W10153595
8	MAY W10121374
9	MAY 2306094
10	MAY W10140162
11	MAY 1113048
12	Cover Seal, Evaporator Tubes
13	MAY 2220832
14	Wire Tie
15	Clip, Heat Exchanger
16	MAY 2320554
17	Bracket Assembly, Air Return
18	Clip, Evaporator Tube
