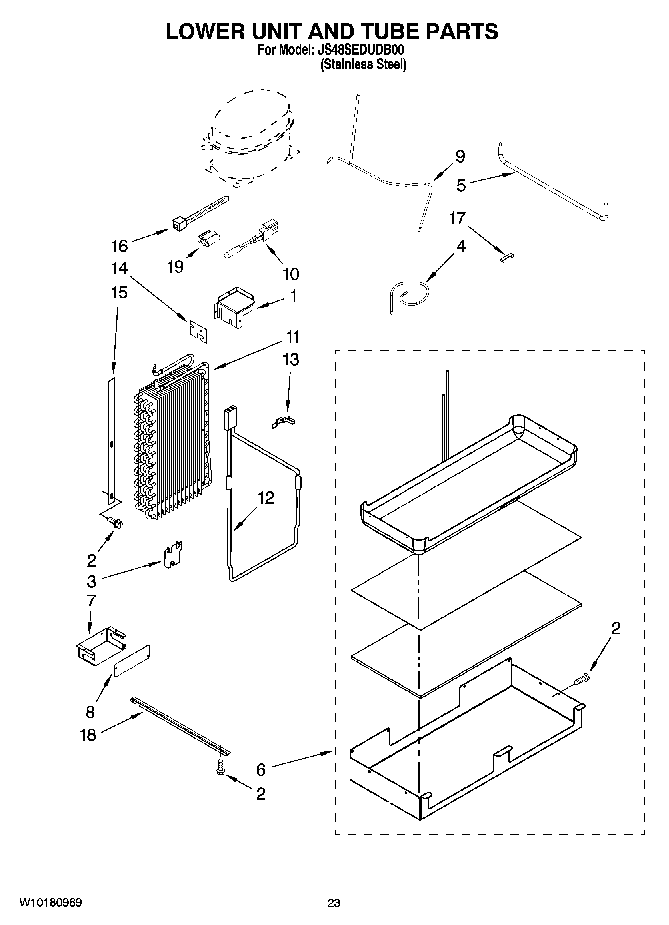

JS48SEDUDB00 14 – LOWER UNIT AND TUBE PARTS

Written by

Products

Position	Product
1	Bracket Assembly, Air Return
2	SCREW
3	Bracket
4	MAY 2309076
5	Tube, Connect (Drier/Restrictor)
6	MAY 2320615
7	MAY W10151288
8	MAY W10153595
9	MAY W10121374
10	MAY 2188820
11	MAY 2306094
12	MAY W10140162
13	MAY 1113048
14	Cover Seal, Evaporator Tubes
15	MAY 2220832
16	MAY 2155774
17	MAY W10169509
18	MAY 2320554
19	Clip, Evaporator Tube
