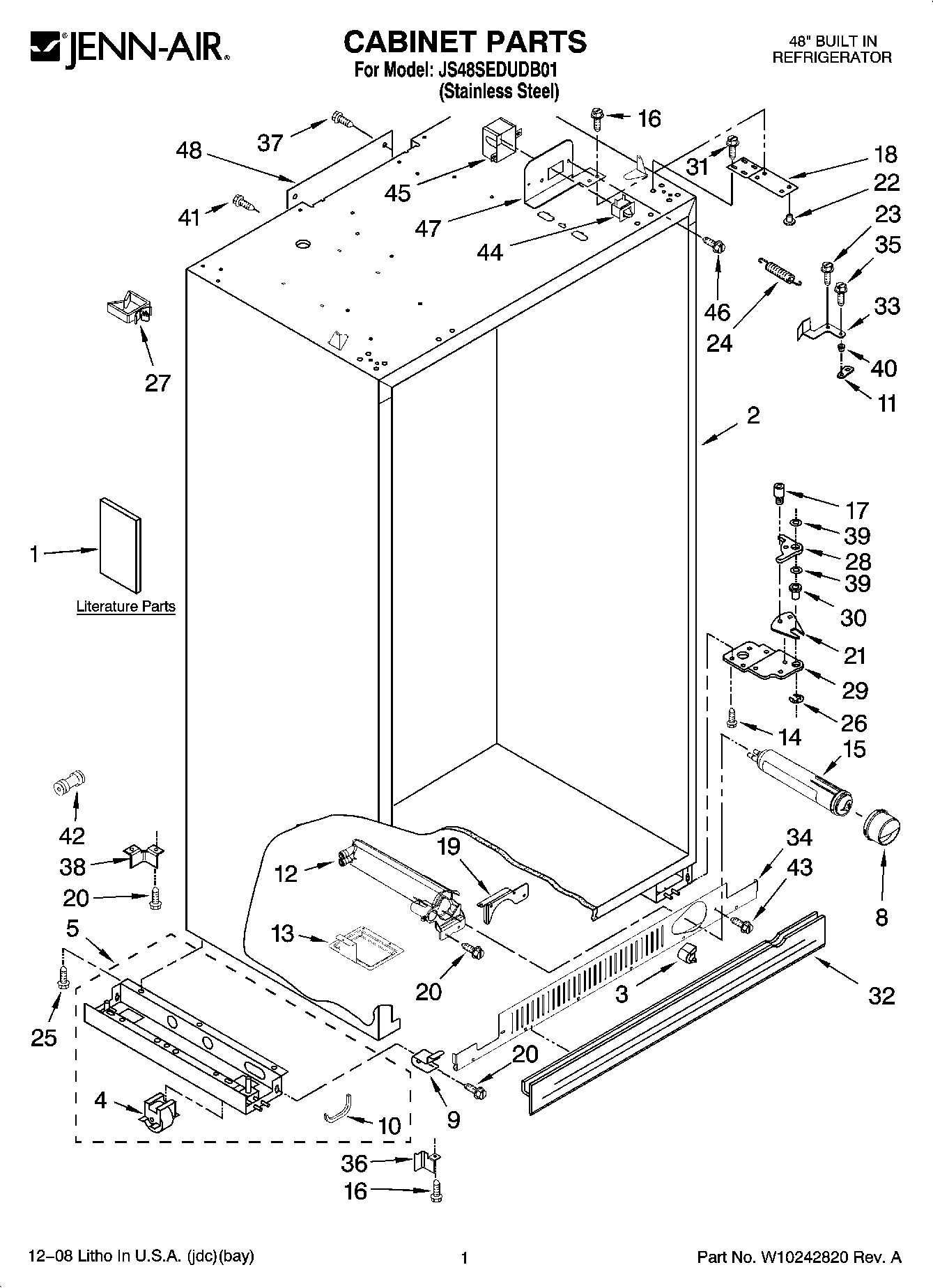

JS48SEDUDB01 01 – CABINET PARTS

Products

Position	Product
1	MAY W10205626
1	MAY W10159832
1	MAY W10151251
1	MAY W10151249
1	MAY 2318069
1	MAY 2306424
3	Button, Filter (Black)
4	MAY W10138054
5	LEVELER ASSY
8	MAY 2260518B
9	Mounting Stud, Grille
10	GROMMET, CROSSOVERTUBE
11	MAY 2005783
12	MAY W10121140
13	Tray, Drip Filter
14	MAY 3400525
15	MAY 4396841
16	Screw 8-32 x 5/16
17	Screw, Door Stop
18	Hinge (Top)
19	Bracket, Mtg (Water Filter)
20	Screw (3)
21	Lock, Adjustable Bushing
22	MAY 2300082
23	MAY 488649
24	Spring, Door Closure (Right Side)
25	SCREW
26	Retaining Ring, Adjustable Bushing
27	Wire Clip (5)
28	MAY 2006342
29	HINGE, BOTTOM (REFRIGERATOR)
29	HINGE, BOTTOM (FREEZER)
30	MAY 2302876
31	Screw 1/4-20 x 5/8
32	Skirt-Grille, Bottom (Black)
33	EXTENSION ARM, DOOR CLOSER (LEFT HAND)
33	EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
34	MAY 2325186B
35	MAY 2005921
36	Bracket, Support Base (Front) (Left)
36	Bracket, Support Base (Front) (Right)
37	MAY 1157158
38	Bracket, Support Base (Rear) (2)
39	WASHER
40	Bushing, Extension Arm
41	SCREW
42	CONNECTOR, WATER
42	Connector, Water Tube (1/4“)
43	Screw
44	MAY 1118894
44	Switch, Rocker Arm
45	Cover, Switch (2)
46	Screw
47	MAY 2221097
47	MAY 2221096
48	Cover, Rear
