JS48SEDUDB01 10 – REFRIGERATOR DOOR PARTS – Aparts

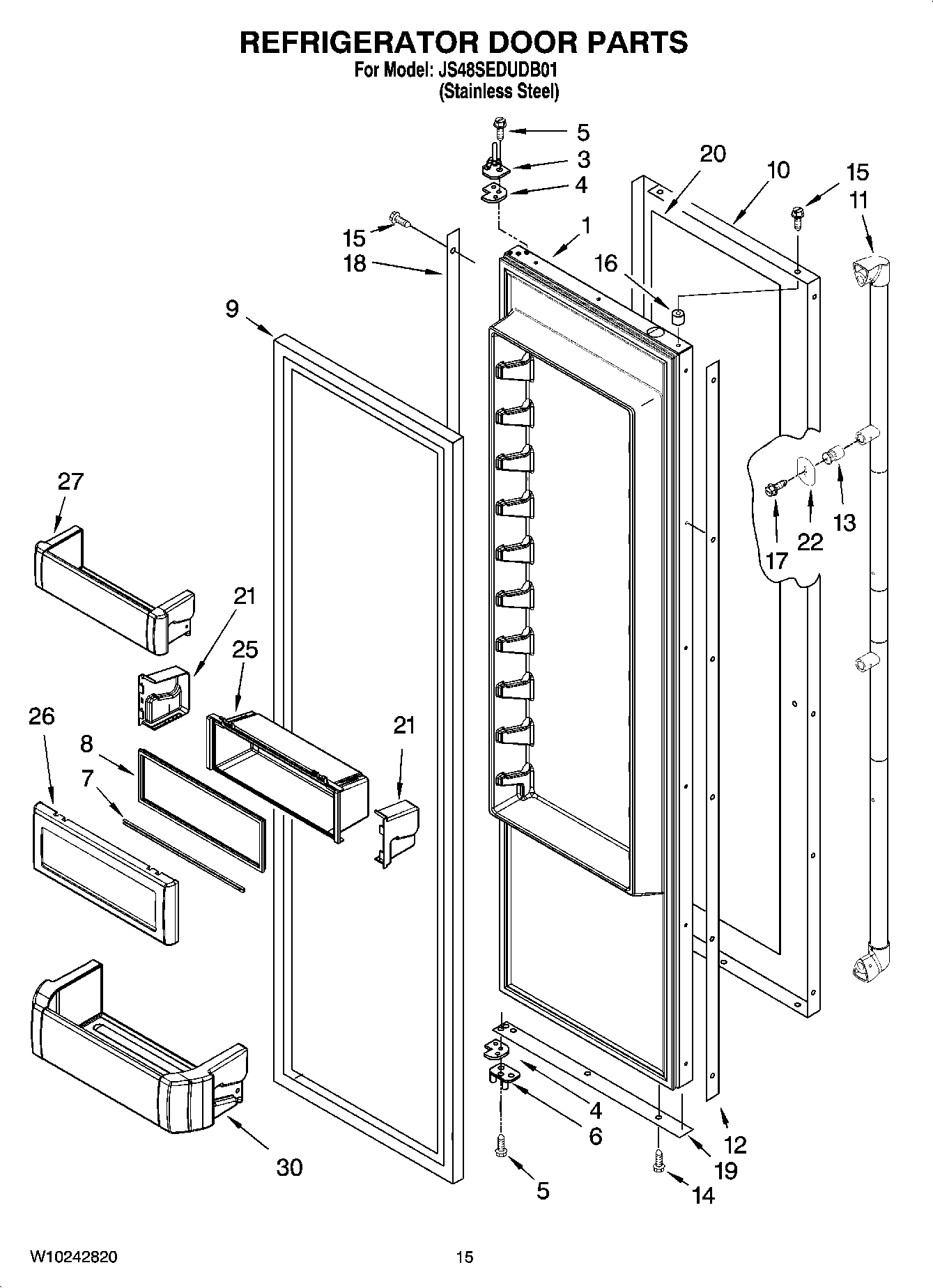

JS48SEDUDB01 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY W10197114
3	MAY 2266854
4	Spacer-Door, Top & Bottom
5	MAY 489282
6	Hinge Assembly, Bottom
7	MAY 2222797
8	MAY 2222983
9	MAY 2222812
10	MAY W10144970
11	MAY 12850908
12	SPACER, DOOR-SKIN (HANDLE SIDE)
13	STUD, HANDLE MOUNTING
14	SCREW
15	Screw, 8-15 x .500 (Stainless Steel)
16	Spacer, Door-Skin (Top)
17	Screw
18	MAY 2309056
19	Spacer, Door-Skin (Bottom)
20	MAY 2005327
21	End Cap (Right Side)
21	End Cap (Left Side)
22	MAY W10127710
25	MAY 2222923
26	MAY 2257617
27	Bin, Door (3)
30	Bin, Door
