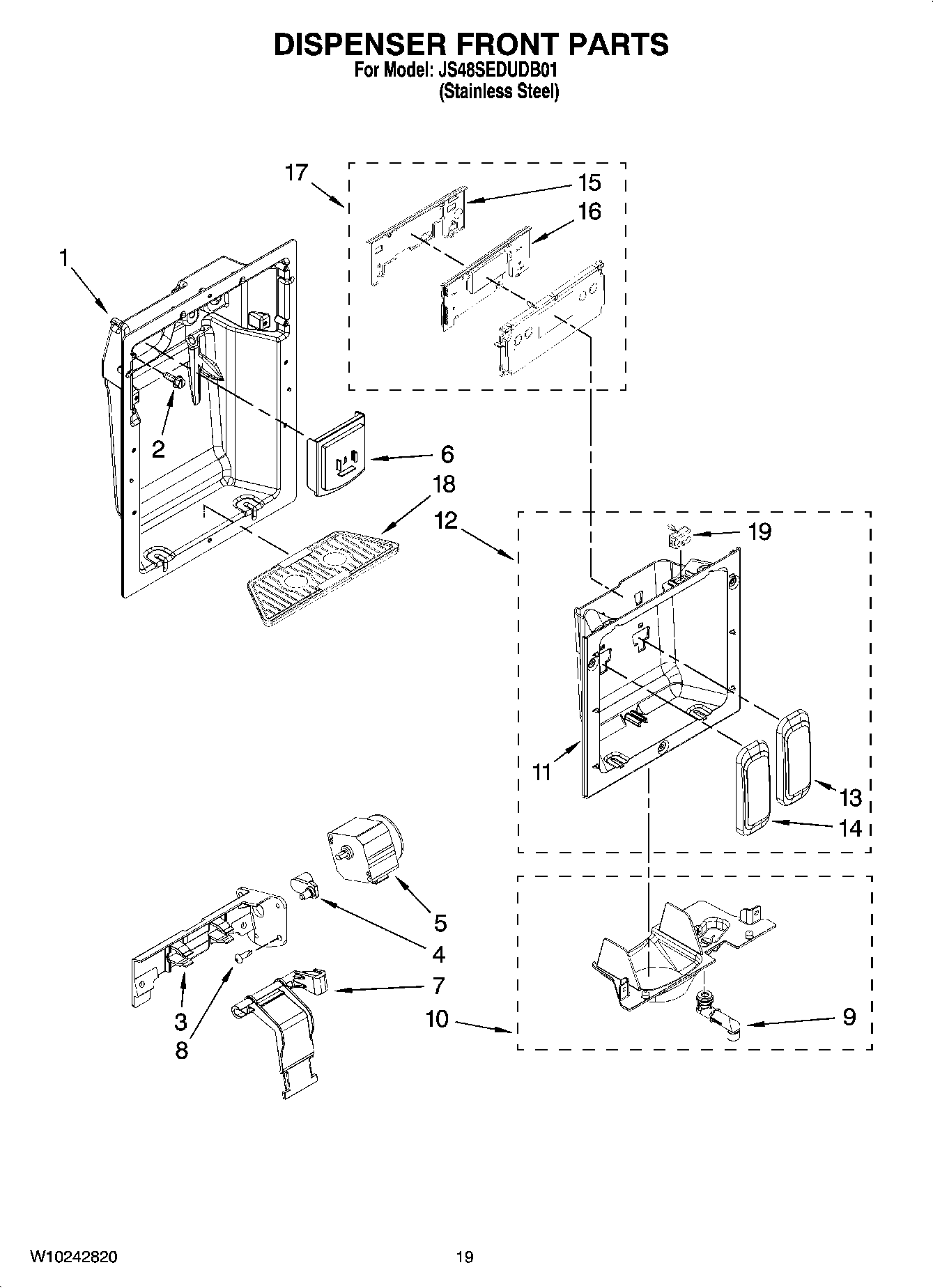

JS48SEDUDB01 12 – DISPENSER FRONT PARTS

Products

Position	Product
2	SCREW
3	MAY W10132946
4	MAY 2305242
5	MAY 2318021
6	MAY 2180353
7	MAY 2318020
8	MAY 4449745
9	ASSEMBLY, SPIGOT
10	Separator Assembly
12	Housing Assembly (Universal Silver)
13	Water, Paddle Asy (For Aluminum Model)
14	Ice, Paddle Asy (For Aluminum Model)
15	Cover, Control
16	ASSEMBLY, UI CONTROL COVER
17	MAY W10151236
18	ASSEMBLY, DRIP TRAY
19	LED Assembly
