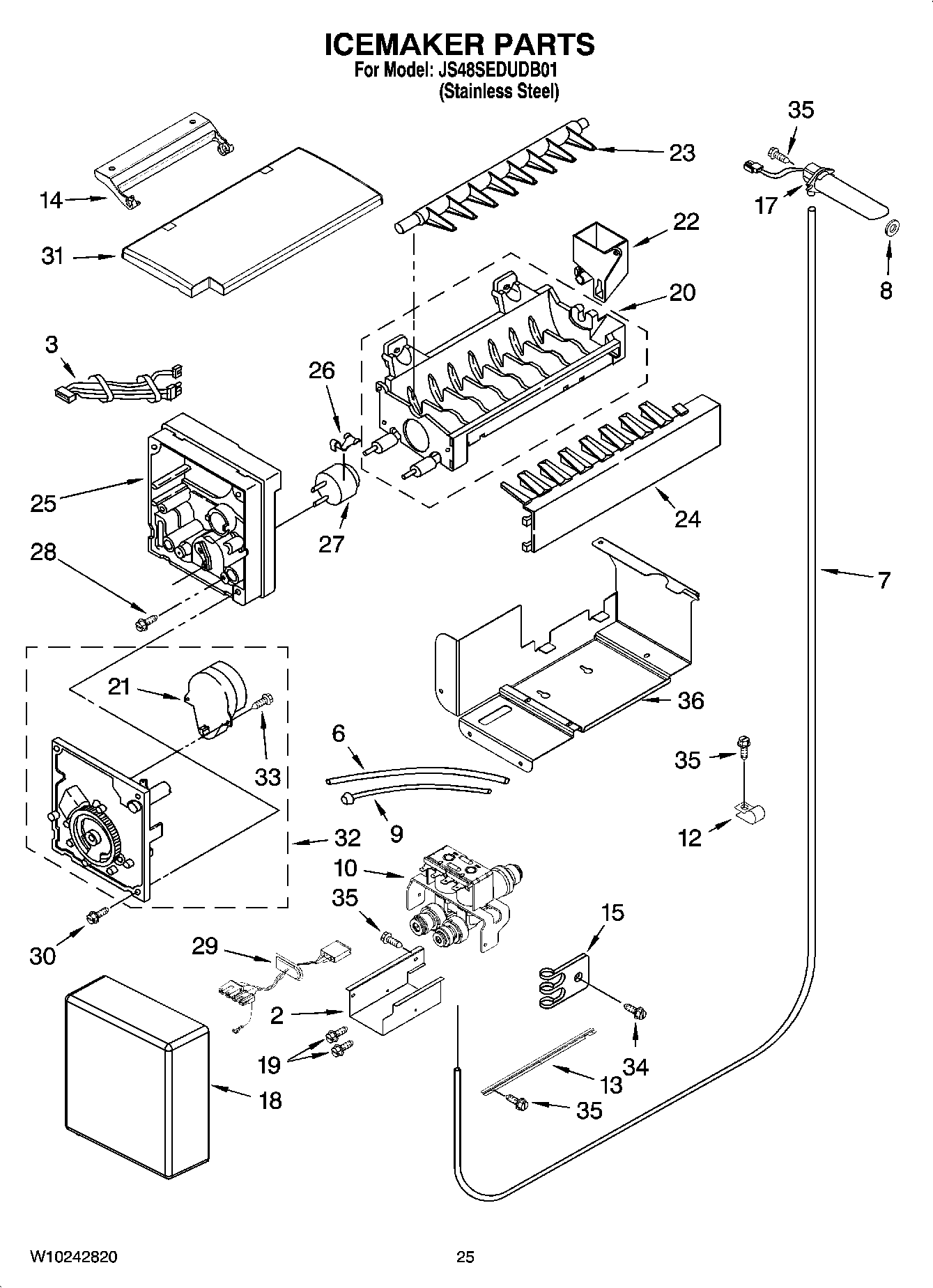

JS48SEDUDB01 15 – ICEMAKER PARTS

Products

Position	Product
NI	MAY 8537055
NI	MAY W10151246
2	Shield, Valve
3	MAY 2310191
6	MAY W10174395
7	Water Tube
8	MAY 2302758
9	MAY 2317912
10	Valve, Solenoid
12	MAY 2221070
13	MAY 2320559
14	Bracket, Ice Maker Cover
15	Clamp, Nylon Valve
17	MAY 2302756
18	MAY 2257538
19	MAY 488500
20	MAY W10122527
22	Cup, Fill
23	MAY 627843
24	Ice Striper
25	MAY 2194712
26	MAY 2315522
27	Thermostat (Also Order 542369 Cement Alumilastic)
28	MAY 8533917
29	MAY W10139199
30	MAY 489276
31	MAY W10151256
32	Module Assembly (Includes Item 24)
33	MAY 489136
34	Screw (3)
35	SCREW
36	MAY 2252228
100	Complete Icemaker Assembly
