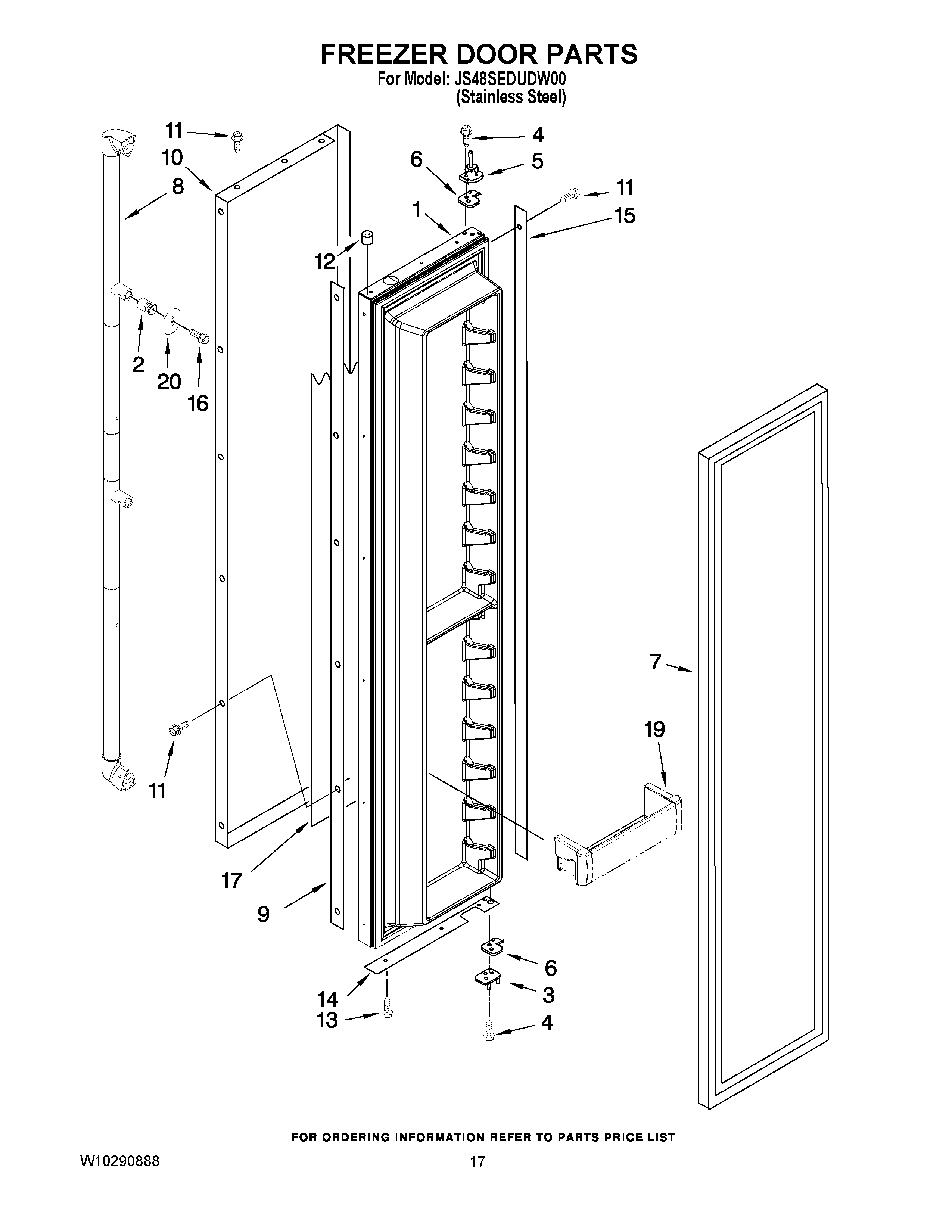

JS48SEDUDW00 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 7)
2	MOUNT, HANDLE
3	ASSEMBLY, BOTTOM HINGE LEAF
4	MAY W10201588
5	MAY 2266854
6	Spacer-Door, Top & Bottom
7	MAY 2222810
8	HANDLE, DOOR
9	SPACER, DOOR-SKIN (HANDLE SIDE)
10	MAY W10222242
11	Screw, 8-15 x .500 (Stainless Steel)
12	Spacer, Door-Skin (Top)
13	SCREW
14	Spacer, Door-Skin (Bottom)
15	MAY 2309056
16	Screw
17	Filler, Door (Bottom)
17	Filler, Door (Top)
19	Bin, Door (6)
20	MAY W10127710
