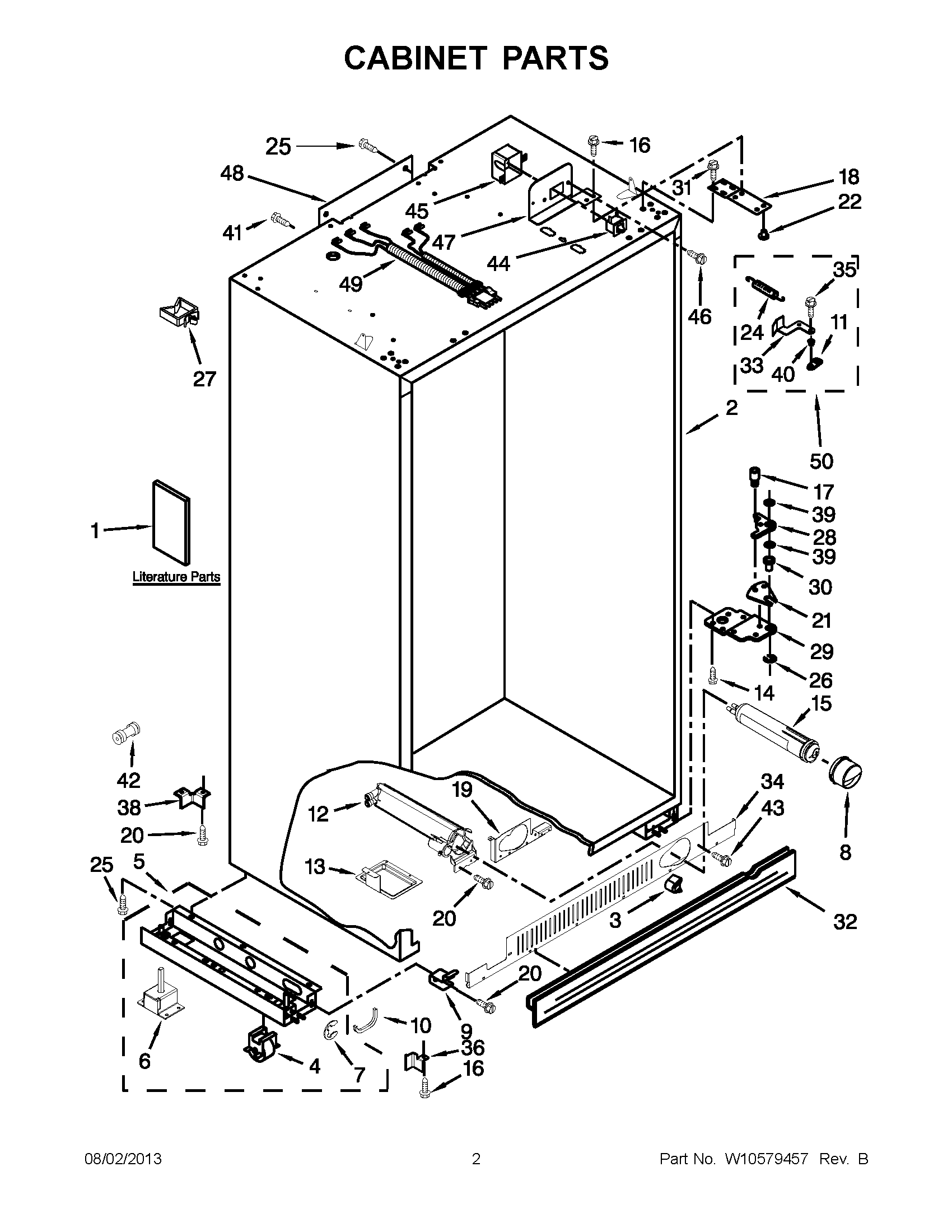

JS48SEDUDW14 01 – CABINET PARTS

Products

Position	Product
1	MAY 2306424
1	MAY W10303988
1	MAY W10379134
1	MAY W10469184
1	MAY W10483315
1	MAY W10477244
2	LINER (NOT A SERVICEABLE PART)
3	Button, Filter (Black)
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	LEVELER ASSY
7	Ring, Retainer
8	MAY 2260518B
9	Mounting Stud, Grille
10	GROMMET, CROSSOVERTUBE
11	MAY 2320509
12	MAY W10121140
13	Tray, Drip Filter
14	MAY 3400525
15	Filter, Water
16	Screw 8-32 x 5/16
17	Screw, Door Stop
18	Hinge (Top)
19	BRACKET, FILTER
20	MAY W10001250
21	Lock, Adjustable Bushing
22	MAY W10484913
23	Spring, Door Closure (Right Side)
25	MAY 1157158
26	Retaining Ring, Adjustable Bushing
27	Wire Clip (5)
28	MAY W10482554
29	HINGE, BOTTOM (FREEZER)
29	HINGE, BOTTOM (REFRIGERATOR)
30	MAY 2302876
31	Screw 1/4-20 x 5/8
32	Skirt-Grille, Bottom (Black)
33	EXTENSION ARM, DOOR CLOSER (LEFT HAND)
33	EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
34	MAY 2325186B
35	MAY W10485630
36	Bracket, Support Base (Front) (Right)
36	Bracket, Support Base (Front) (Left)
38	Bracket, Support Base (Rear) (2)
39	WASHER
40	MAY 2316859
41	SCREW
42	CONNECTOR, UNION
43	Screw
44	Switch, Rocker Arm
44	MAY 1118894
45	Cover, Switch (2)
46	Screw
47	MAY 2221097
47	MAY 2221096
48	Cover, Rear
49	ASSEMBLY, RC WIRE
50	ASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
