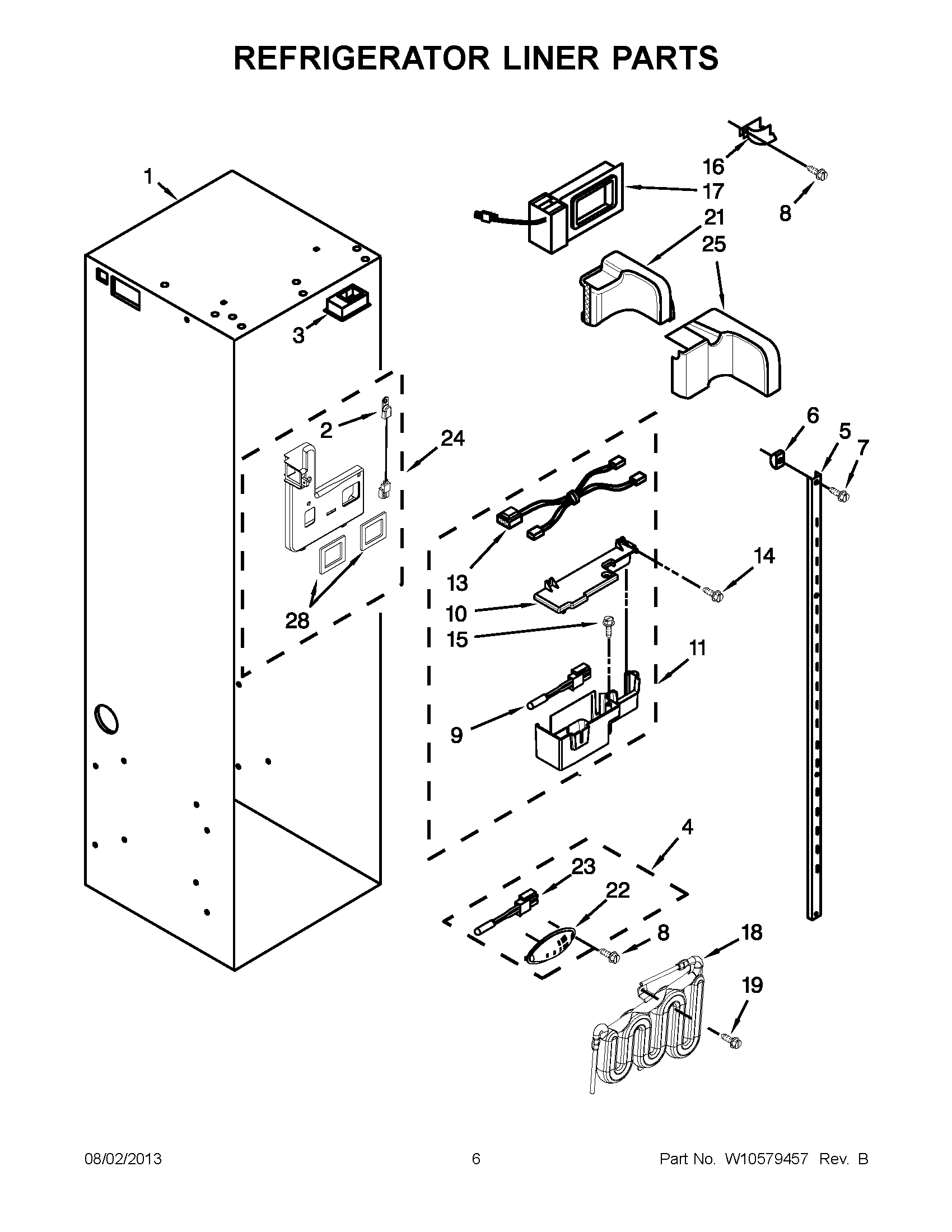

JS48SEDUDW14 03 – REFRIGERATOR LINER PARTS

JS48SEDUDW14 03 – REFRIGERATOR LINER PARTS

Written by

in

JS48SEDUDW14 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2306010
3Air Duct
4ASSEMBLY, THERMISTOR
5Ladder, Shelf (2)
6Screw Support, Ladder (8)
7SCREW
8SCREW
9MAY 2302937
10Lid, Meat Pan Baffle
11Baffle, Control Assembly
13Jumper, Air Baffle
14Screw (Right Side- (8-18 x 1.375))
15MAY 1157158
16MAY 2003577
17Air Baffle Assembly
18MAY 2327509
19SCREW 8-15 X 3/4
21Diffuser Assembly
22MAY 2317105
23MAY 2188820
24MAY W10475010
25Cover, Diffuser
28Seal, Air Duct (Square Hole)
