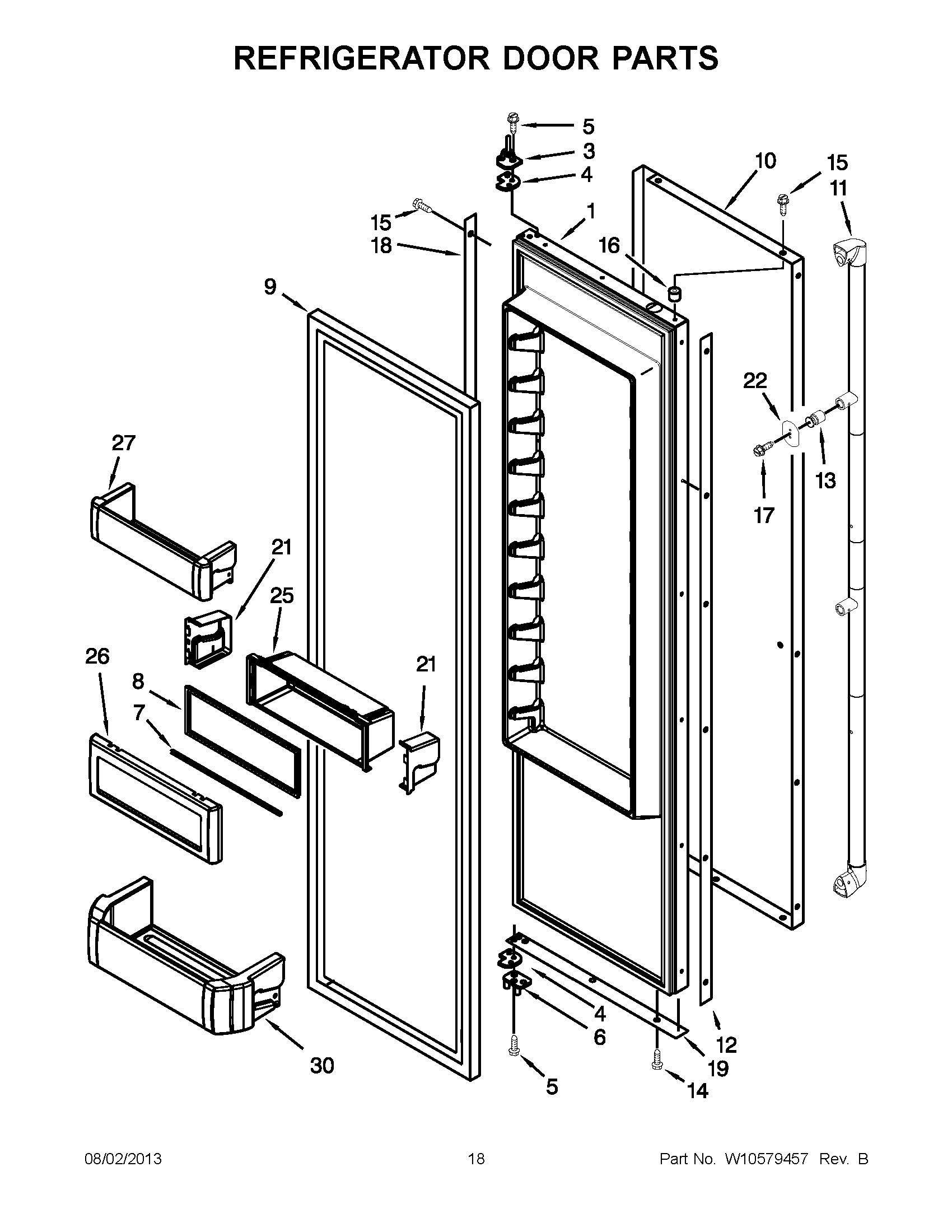

JS48SEDUDW14 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Item 9)
3	ASSEMBLY, TOP HINGE
4	Spacer-Door, Top & Bottom
5	MAY W10162602
6	Hinge Assembly, Bottom
7	MAY 2222797
8	MAY 2222983
9	MAY 2222812
10	MAY W10523735
11	HANDLE, DOOR
12	SPACER, DOOR-SKIN (HANDLE SIDE)
13	MOUNT, HANDLE
14	SCREW
15	Screw, 8-15 x .500 (Stainless Steel)
16	Spacer, Door-Skin (Top)
17	Screw
18	SPACER, DOOR
19	Spacer, Door-Skin (Bottom)
21	END CAP (RIGHT HAND)
21	END CAP (LEFT HAND)
22	MAY W10127710
25	MAY W10323037
26	MAY 2257617
27	BIN, DOOR
30	BIN, DOOR
