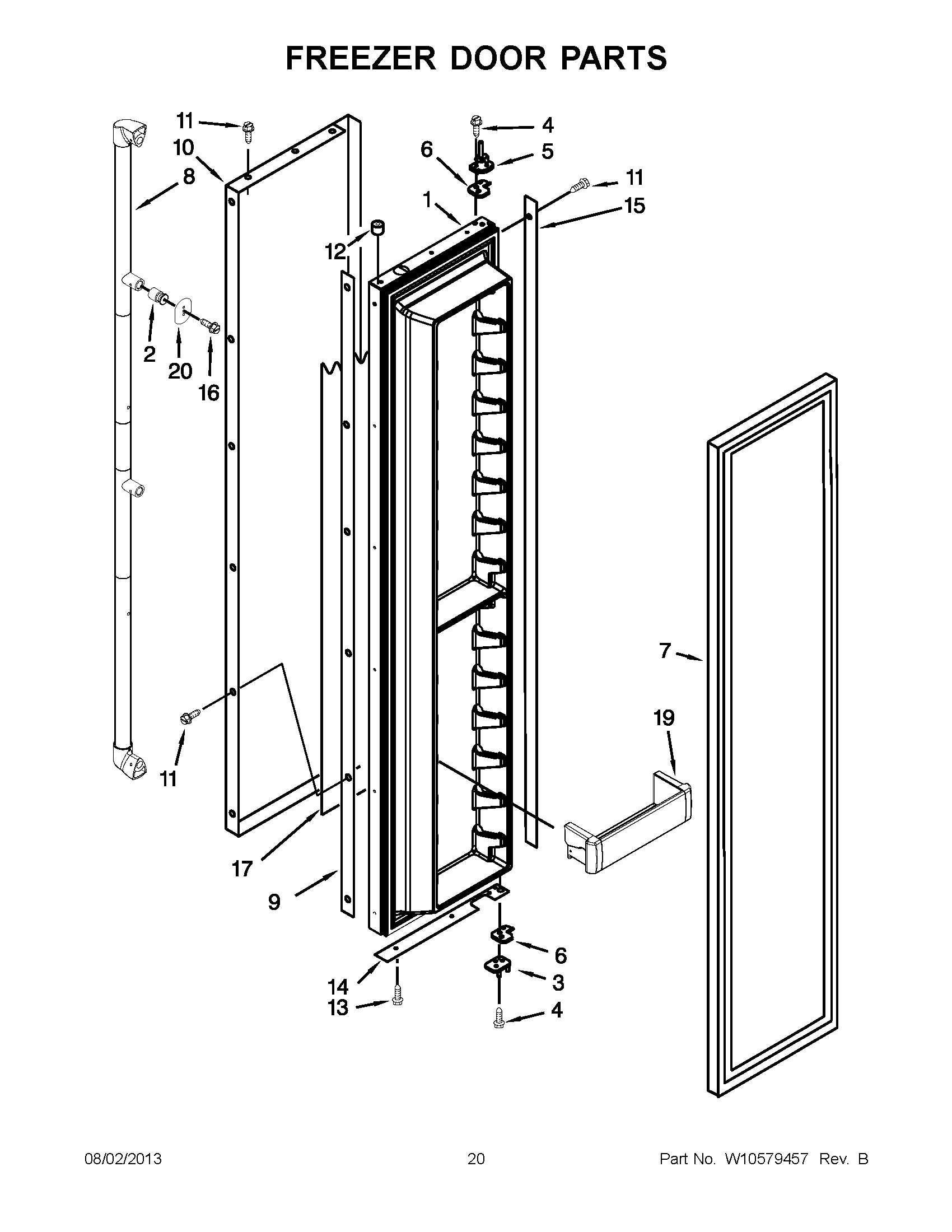

JS48SEDUDW14 10 – FREEZER DOOR PARTS

JS48SEDUDW14 10 – FREEZER DOOR PARTS

Written by

in

JS48SEDUDW14 10 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10292433
2	MOUNT, HANDLE
3	ASSEMBLY, BOTTOM HINGE LEAF
4	MAY W10162602
5	ASSEMBLY, TOP HINGE
6	Spacer-Door, Top & Bottom
7	MAY 2222810
8	HANDLE, DOOR
9	SPACER, DOOR-SKIN (HANDLE SIDE)
10	MAY W10523754
11	Screw, 8-15 x .500 (Stainless Steel)
12	Spacer, Door-Skin (Top)
13	SCREW
14	Spacer, Door-Skin (Bottom)
15	SPACER, DOOR
16	Screw
17	Filler, Door (Top)
19	BIN, DOOR
20	MAY W10127710
