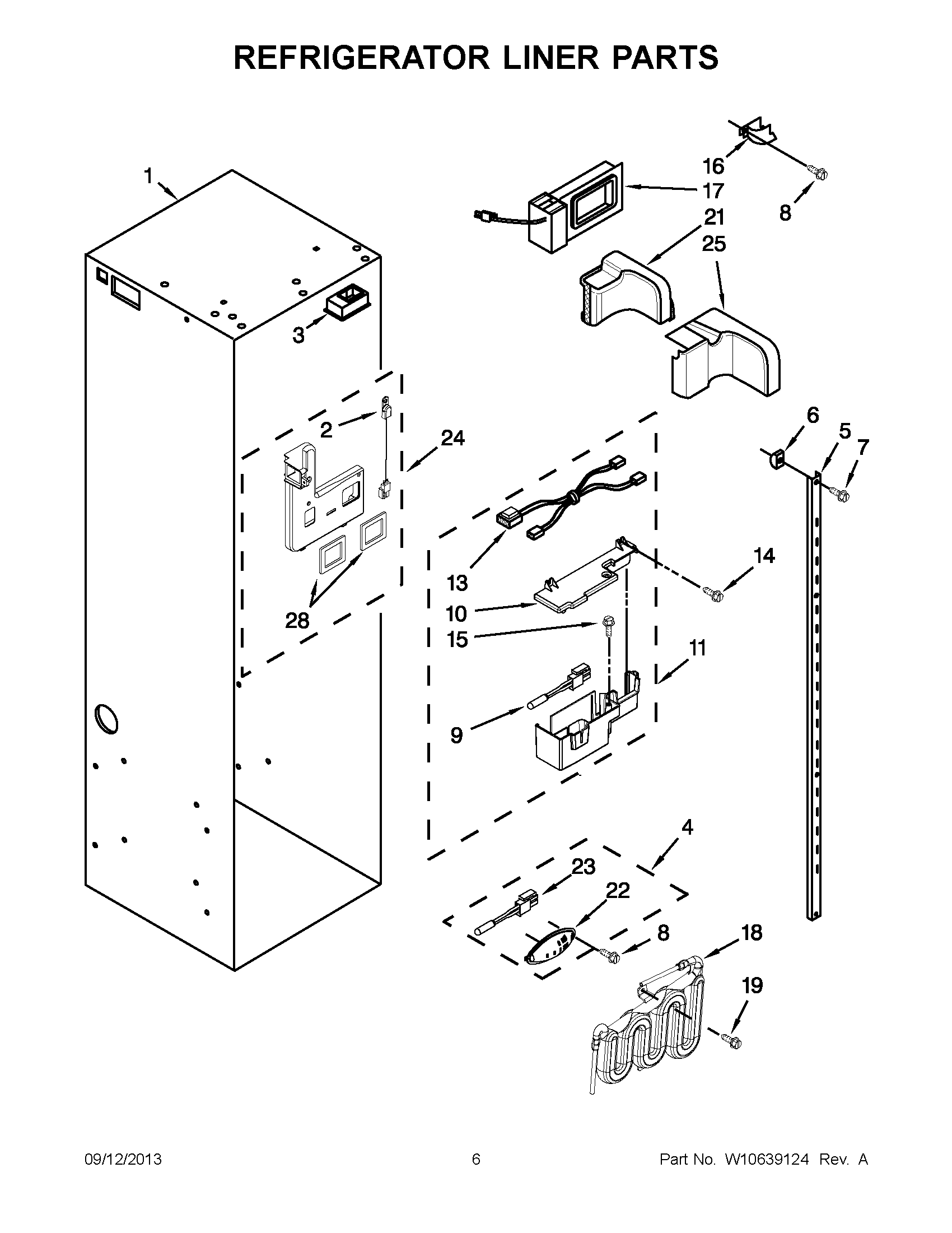

JS48SEDUDW15 04 – REFRIGERATOR LINER PARTSadmin2025-04-26T09:16:14+00:00JS48SEDUDW15 04 – REFRIGERATOR LINER PARTS ProductsPositionProduct1LINER (NOT A SERVICEABLE PART)2MAY 23060103Air Duct4ASSEMBLY, THERMISTOR5Ladder, Shelf (2)6Screw Support, Ladder (8)7SCREW8SCREW9MAY 230293710Lid, Meat Pan Baffle11Baffle, Control Assembly13Jumper, Air Baffle14Screw (Right Side- (8-18 x 1.375))15MAY 115715816MAY 200357717Air Baffle Assembly18MAY 232750919SCREW 8-15 X 3/421Diffuser Assembly22MAY 231710523MAY 218882024MAY W1047501025Cover, Diffuser28Seal, Air Duct (Square Hole)
