JS48SEDUDW15 08 – REFRIGERATOR SHELF PARTS
Written by
in

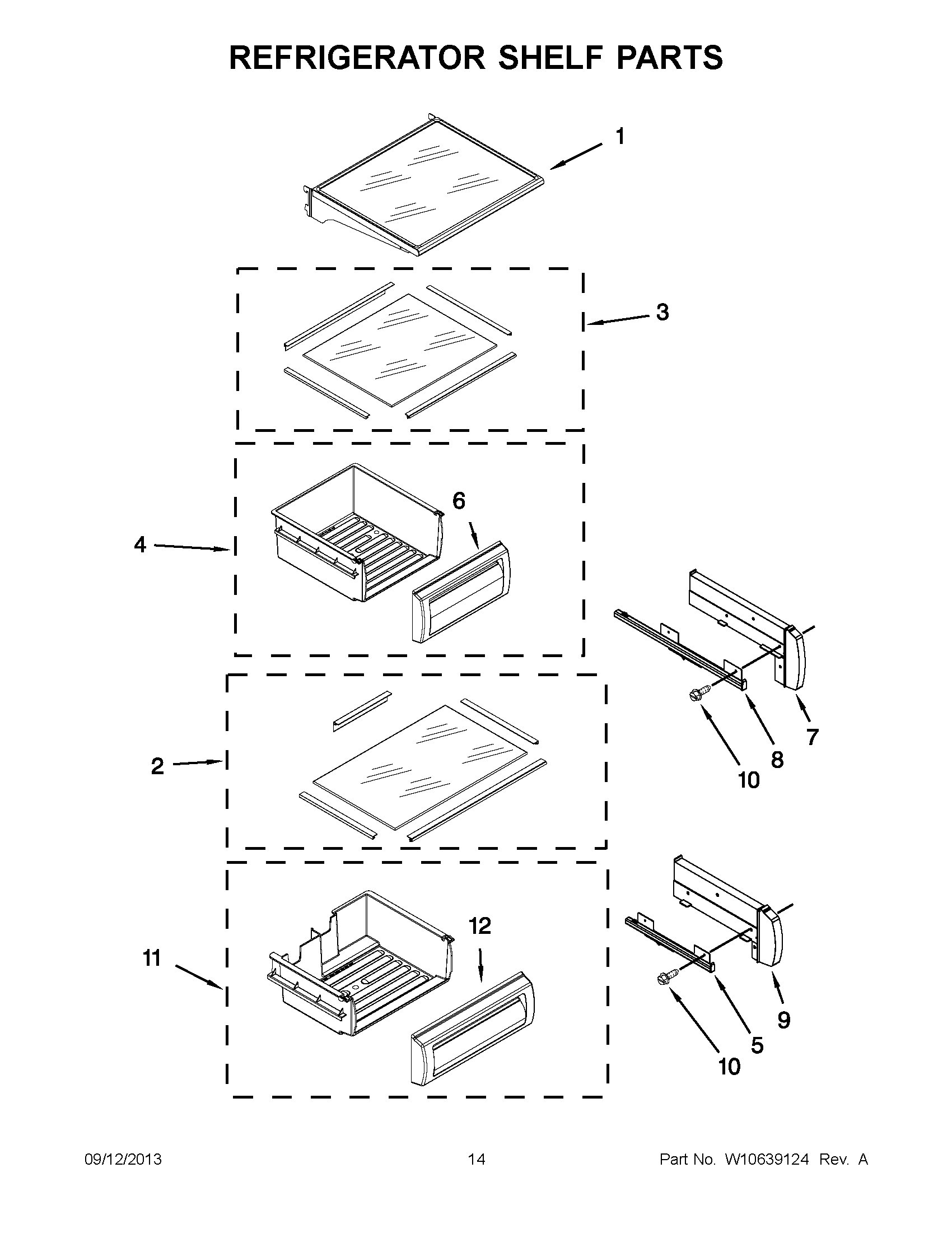

JS48SEDUDW15 08 – REFRIGERATOR SHELF PARTS
Products
Position
Product
1
Shelf Assy (4)
2
Meat Pan Cover Assembly
3
Crisper Cover Assembly
4
PAN, CRISPER
5
Slide, Meat Pan (Right Side)
5
Slide, Meat Pan (Left Side)
6
MAY 2256249
7
Spacer, Crisper (Left Side (2))
7
Spacer, Crisper (Right Side (2))
8
Slide, Crisper (Left Side)
8
Slide, Crisper (Right Side)
9
Spacer, Meat Pan (Right Side)
9
Spacer, Meat Pan (Left Side)
10
Screw (Right Side- (8-18 x 1.375))
10
Screw
11
MAY W10407628
12
Front, Meat Pan
←
