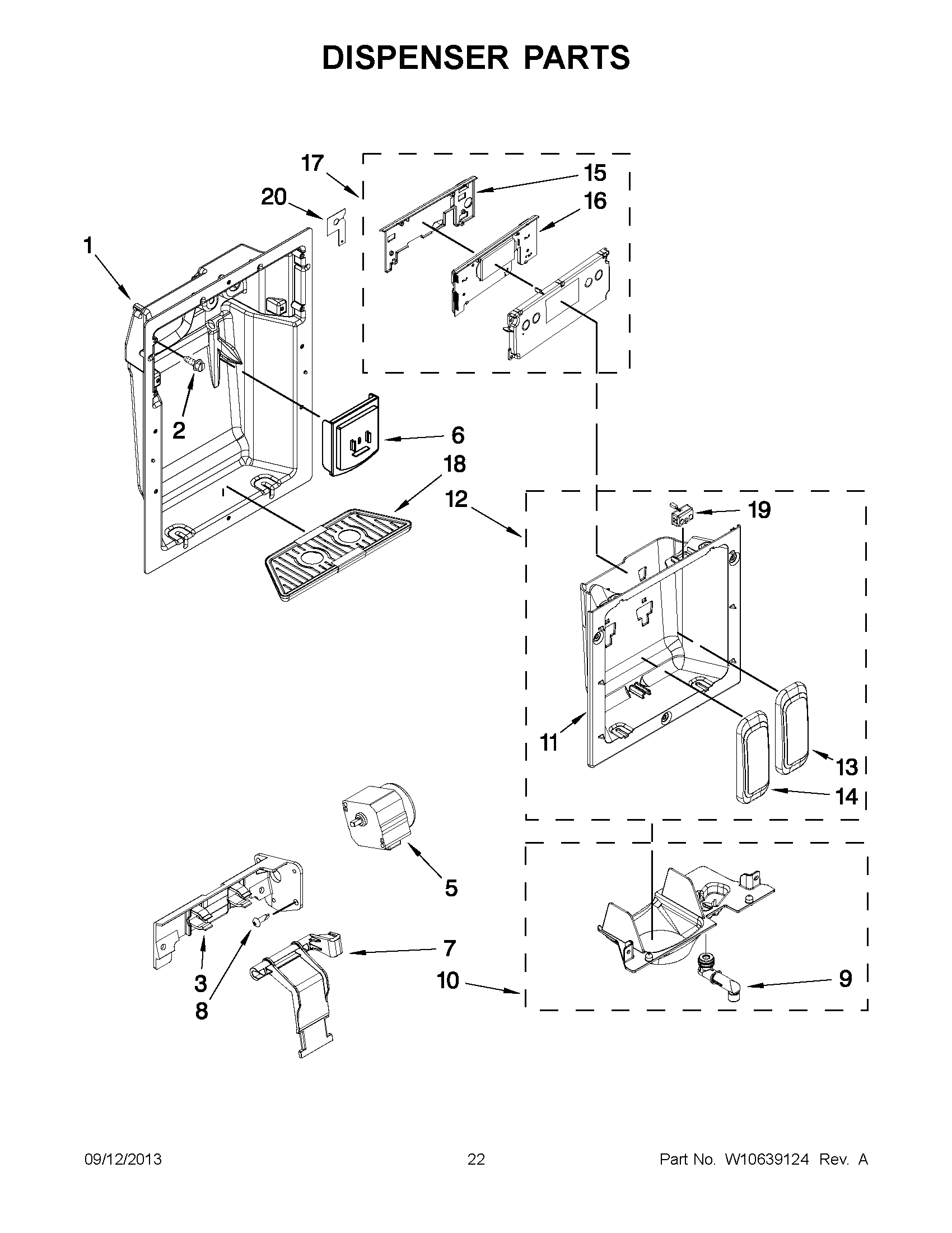

JS48SEDUDW15 12 – DISPENSER PARTS

Products

Position	Product
2	MAY 1157158
3	MAY W10542660
5	MAY W10205979
6	MAY W10504458
7	ASSEMBLY, MOTOR & BRACKET
8	MAY 4449745
9	ASSEMBLY, SPIGOT
10	Separator Assembly
11	LINER (NOT A SERVICEABLE PART)
12	HOUSING ASSEMBLY
13	Water, Paddle Asy (For Aluminum Model)
14	Ice, Paddle Asy (For Aluminum Model)
15	Cover, Control
16	ASSEMBLY, UI CONTROL COVER
17	MAY W10151236
18	ASSEMBLY, DRIP TRAY
19	LED Assembly
20	MAY 2305447
