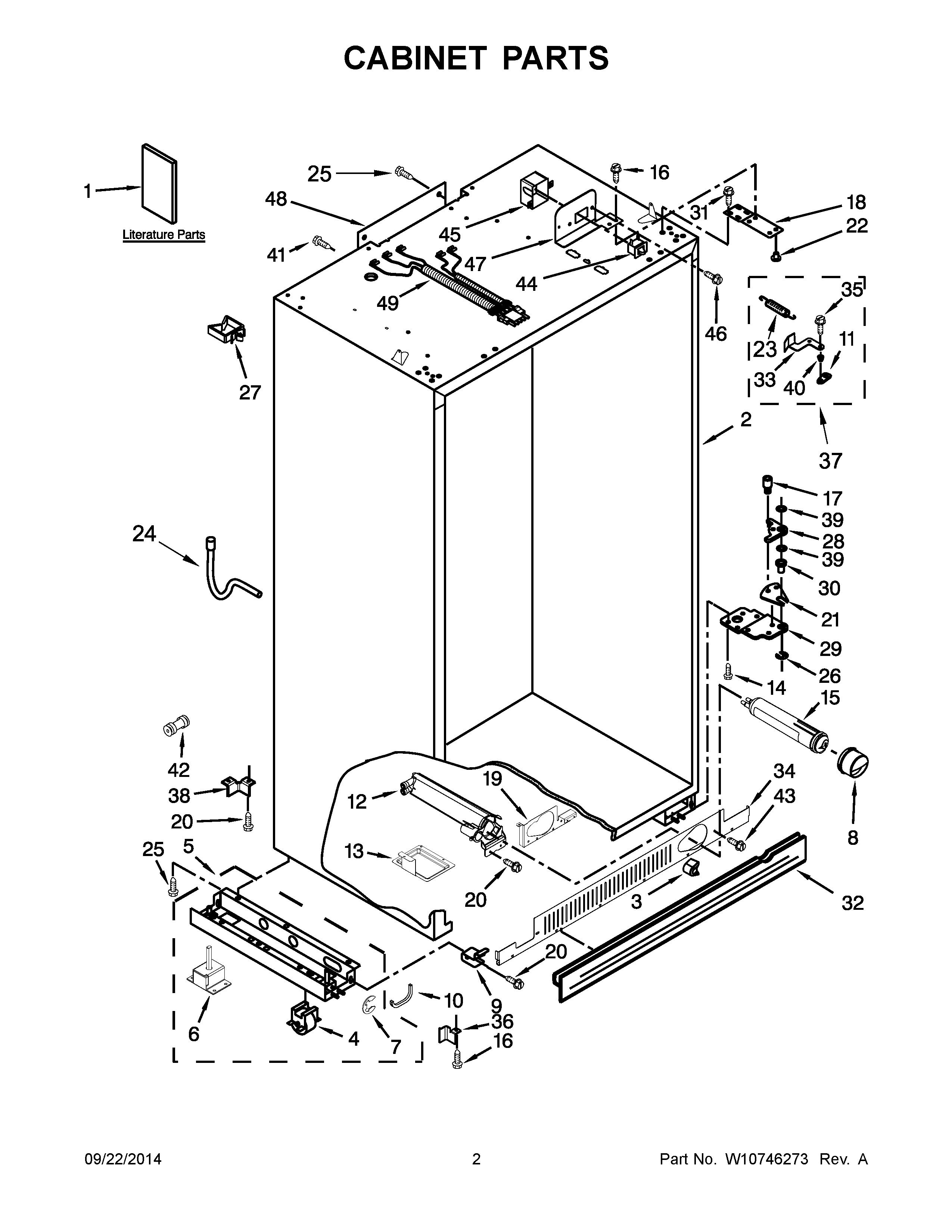

JS48SEDUDW20 02 – CABINET PARTS

Products

Position	Product
1B	MAY 2306424
1C	MAY W10469184
1D	MAY W10681453
1	MAY W10681397
1A	MAY W10703432
2	LINER (NOT A SERVICEABLE PART)
3	Button, Filter (Black)
4	MAY W10138054
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6	LEVELER ASSY
7	Ring, Retainer
8	MAY 2260518B
9	Mounting Stud, Grille
10	GROMMET, CROSSOVERTUBE
11	MAY 2320509
12	MAY W10121140
13	Tray, Drip Filter
14	MAY 3400525
15	Filter, Water
16	Screw 8-32 x 5/16
17	Screw, Door Stop
18	Hinge (Top)
19	MAY W10674648
20	MAY W10001250
21	Lock, Adjustable Bushing
22	MAY W10484913
23	Spring, Door Closure (Right Side)
24	MAY 2314064
25	MAY 1157158
26	Retaining Ring, Adjustable Bushing
27	Wire Clip (5)
28	MAY W10482554
29A	HINGE, BOTTOM (REFRIGERATOR)
29	HINGE, BOTTOM (FREEZER)
30	MAY 2302876
31	Screw 1/4-20 x 5/8
32	SKIRT-GRILLE, BOTTOM
33A	EXTENSION ARM, DOOR CLOSER (LEFT HAND)
33	EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
34	GRILLE BOTTOM, FRONT
35	MAY W10485630
36A	Bracket, Support Base (Front) (Right)
36	Bracket, Support Base (Front) (Left)
37	ASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
38	Bracket, Support Base (Rear) (2)
39	WASHER
40	MAY 2316859
41	SCREW
42	CONNECTOR, UNION
43	Screw
44	MAY 1118894
44A	Switch, Rocker Arm
45	Cover, Switch (2)
46	Screw
47	MAY 2221096
47A	MAY 2221097
48	Cover, Rear
49	ASSEMBLY, RC WIRE
