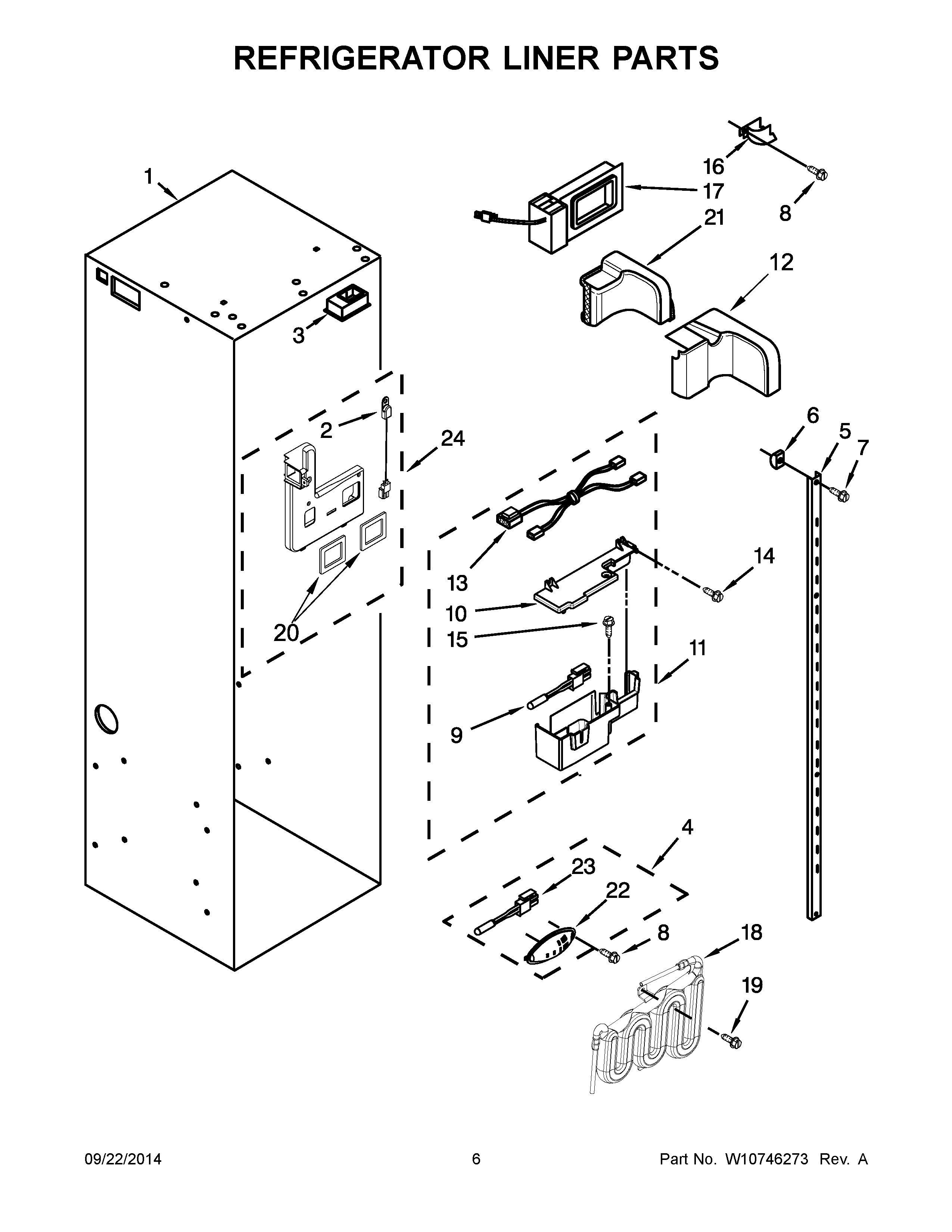

JS48SEDUDW20 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2306010
3Air Duct
4ASSEMBLY, THERMISTOR
5Ladder, Shelf (2)
6Screw Support, Ladder (8)
7SCREW
8SCREW
9MAY 2302937
10Lid, Meat Pan Baffle
11Baffle, Control Assembly
12Cover, Diffuser
13Jumper, Air Baffle
14Screw (Right Side- (8-18 x 1.375))
15MAY 1157158
16MAY 2003577
17Air Baffle Assembly
18RESERVOIR, WATER
19SCREW 8-15 X 3/4
20Seal, Air Duct (Square Hole)
21Diffuser Assembly
22MAY 2317105
23MAY 2188820
24MAY W10475010
