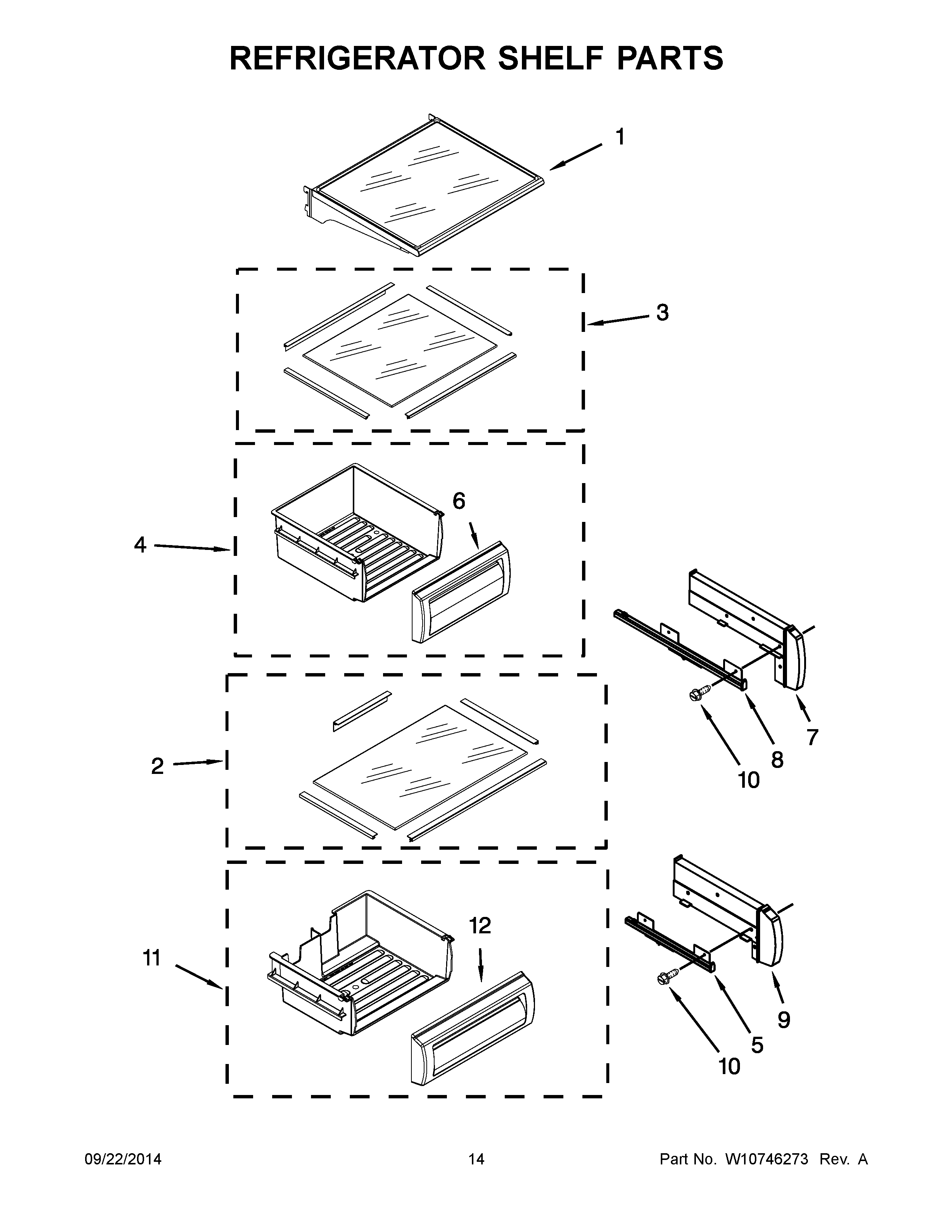

JS48SEDUDW20 08 – REFRIGERATOR SHELF PARTS

JS48SEDUDW20 08 – REFRIGERATOR SHELF PARTS

Written by

in

JS48SEDUDW20 08 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf Assy (4)
2Meat Pan Cover Assembly
3Crisper Cover Assembly
4PAN, CRISPER
5ASlide, Meat Pan (Right Side)
5Slide, Meat Pan (Left Side)
6MAY 2256249
7Spacer, Crisper (Left Side (2))
7ASpacer, Crisper (Right Side (2))
8ASlide, Crisper (Left Side)
8Slide, Crisper (Right Side)
9ASpacer, Meat Pan (Right Side)
9Spacer, Meat Pan (Left Side)
10AScrew (Right Side- (8-18 x 1.375))
10Screw
11MAY W10407628
12Front, Meat Pan
