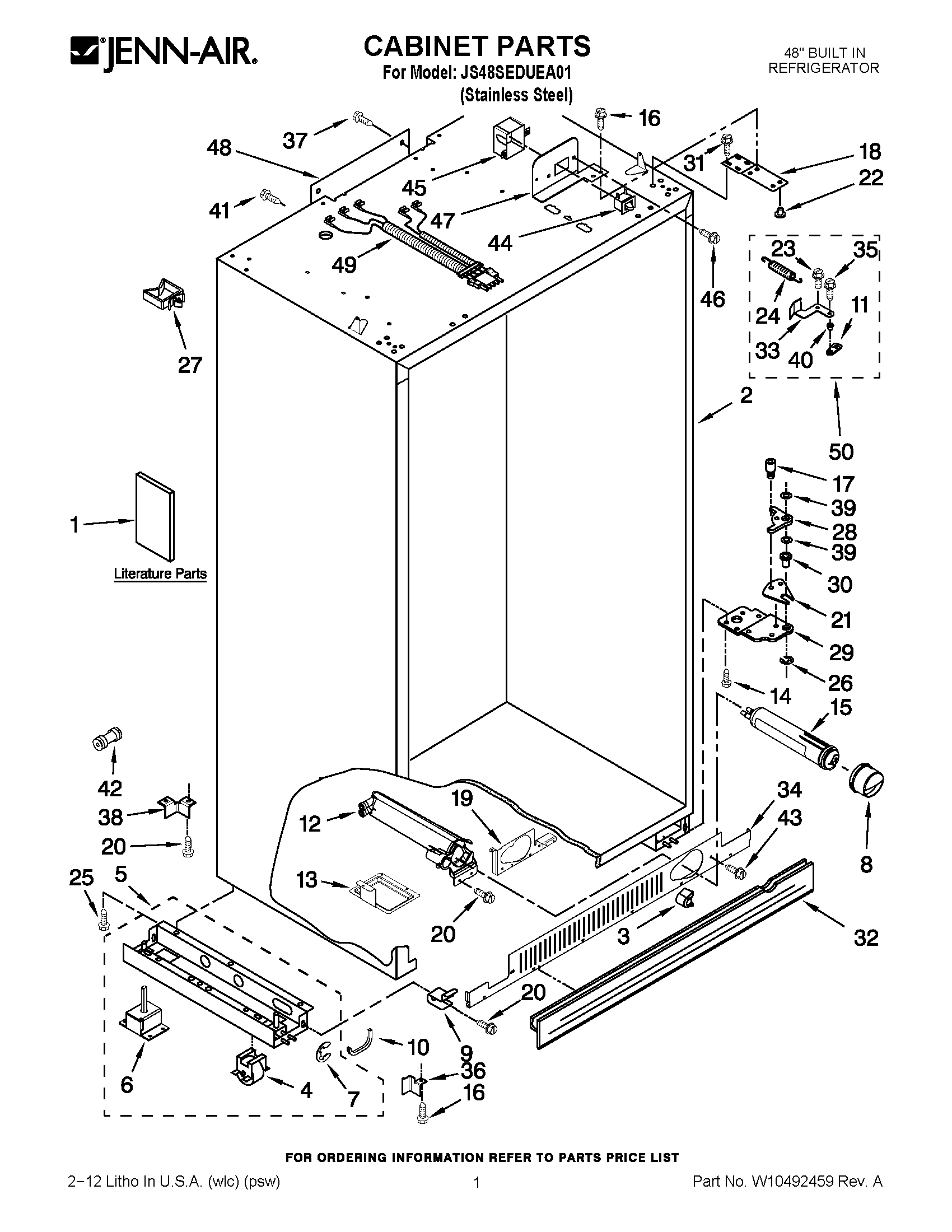

JS48SEDUEA01 01 – CABINET PARTS

Products

Position	Product
1	MAY W10159832
1	MAY 2306424
1	MAY W10303988
1	MAY W10379134
1	MAY W10447380
1	MAY W10300878
2	LINER (NOT A SERVICEABLE PART)
3	Button, Filter (Black)
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6	LEVELER ASSY
7	Ring, Retainer
8	MAY 2260518B
9	Mounting Stud, Grille
10	GROMMET, CROSSOVERTUBE
11	MAY 2005783
12	MAY W10121140
13	Tray, Drip Filter
14	MAY 3400525
15	MAY 4396841
16	Screw 8-32 x 5/16
17	Screw, Door Stop
18	Hinge (Top)
19	BRACKET, FILTER
20	MAY W10001250
21	Lock, Adjustable Bushing
22	MAY 2300082
23	MAY W10189203
24	Spring, Door Closure (Right Side)
26	Retaining Ring, Adjustable Bushing
27	Wire Clip (5)
28	MAY 2006342
29	HINGE, BOTTOM (FREEZER)
29	HINGE, BOTTOM (REFRIGERATOR)
30	MAY 2302876
31	Screw 1/4-20 x 5/8
32	Skirt-Grille, Bottom (Black)
33	EXTENSION ARM, DOOR CLOSER (RIGHT HAND)
33	EXTENSION ARM, DOOR CLOSER (LEFT HAND)
34	MAY 2325186B
35	MAY W10004850
36	Bracket, Support Base (Front) (Right)
36	Bracket, Support Base (Front) (Left)
37	MAY 1157158
38	Bracket, Support Base (Rear) (2)
39	WASHER
40	MAY 2316859
41	SCREW
42	CONNECTOR, UNION
43	Screw
44	MAY 1118894
44	Switch, Rocker Arm
45	Cover, Switch (2)
46	Screw
47	MAY 2221097
47	MAY 2221096
48	Cover, Rear
49	ASSEMBLY, RC WIRE
50	ASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
