JS48SEDUEA02 04 – REFRIGERATOR LINER PARTS – Aparts

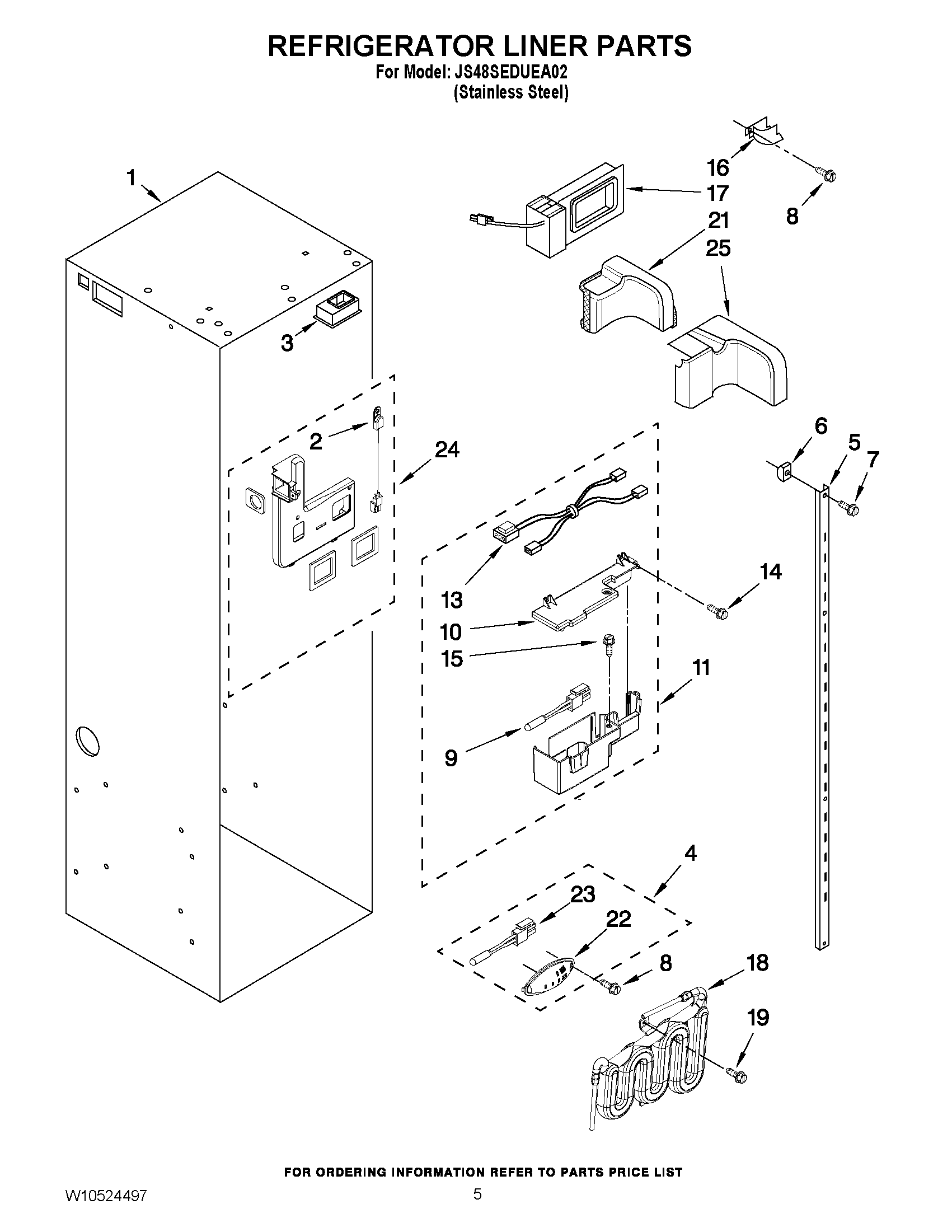

JS48SEDUEA02 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2306010
3	Air Duct
4	ASSEMBLY, THERMISTOR
5	Ladder, Shelf (2)
6	Screw Support, Ladder (8)
7	SCREW
8	SCREW
9	MAY 2302937
10	Lid, Meat Pan Baffle
11	Baffle, Control Assembly
13	Jumper, Air Baffle
14	Screw (Right Side- (8-18 x 1.375))
15	MAY 1157158
16	MAY 2003577
17	Air Baffle Assembly
18	MAY 2327509
19	SCREW 8-15 X 3/4
21	Diffuser Assembly
22	MAY 2317105
23	MAY 2188820
24	MAY W10475010
25	Cover, Diffuser
