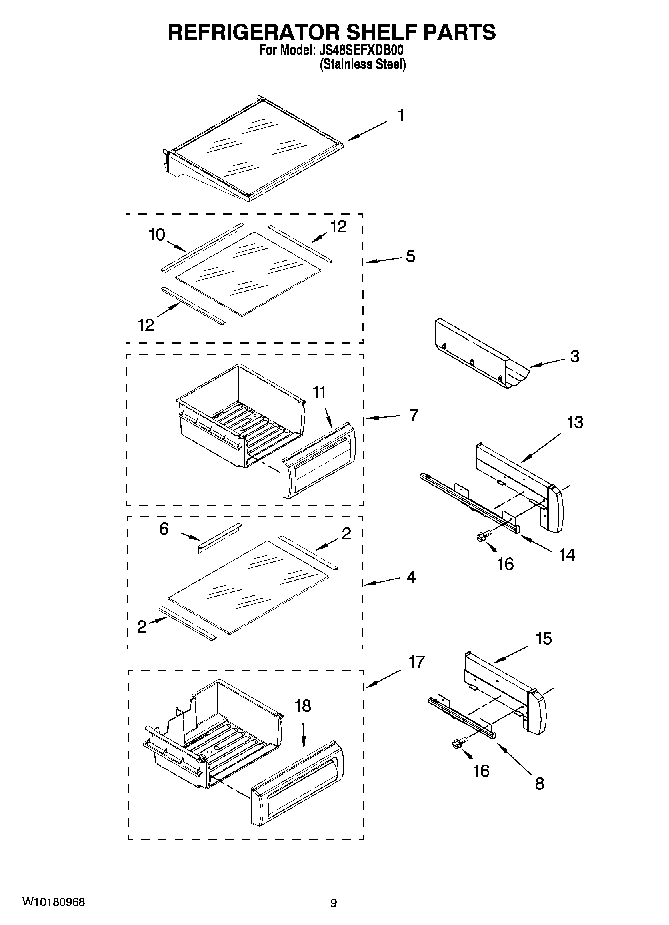

JS48SEFXDB00 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf Assy (4)
2MAY 2256250
3Rack, Wine
4Meat Pan Cover Assembly
5Crisper Cover Assembly
6MAY 2257583
7MAY 2252413
8Slide, Meat Pan (Left Side)
8Slide, Meat Pan (Right Side)
10MAY 2256255
11MAY 2256249
12Trim, Glass Side Crisper Pan
13Spacer, Crisper (Right Side (2))
13Spacer, Crisper (Left Side (2))
14Slide, Crisper (Right Side)
14Slide, Crisper (Left Side)
15Spacer, Meat Pan (Right Side)
15Spacer, Meat Pan (Left Side)
16Screw (Right Side- (8-18 x 1.375))
17MAY 2256370
18Front, Meat Pan
