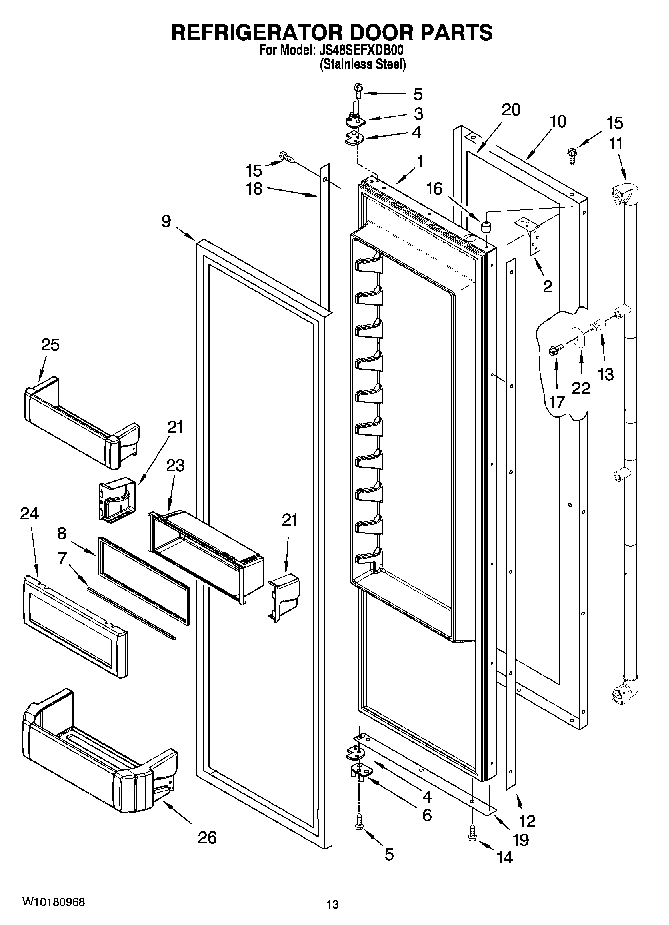

JS48SEFXDB00 09 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:12:56+00:00JS48SEFXDB00 09 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes 9) |
| 2 | Brace, Door Corner |
| 3 | MAY 2266854 |
| 4 | Spacer-Door, Top & Bottom |
| 5 | MAY 489282 |
| 6 | Hinge Assembly, Bottom |
| 7 | MAY 2222797 |
| 8 | MAY 2222983 |
| 9 | MAY 2222812 |
| 10 | MAY W10144970 |
| 11 | MAY 12850908 |
| 12 | SPACER, DOOR-SKIN (HANDLE SIDE) |
| 13 | STUD, HANDLE MOUNTING |
| 14 | SCREW |
| 15 | Screw, 8-15 x .500 (Stainless Steel) |
| 16 | Spacer, Door-Skin (Top) |
| 17 | Screw |
| 18 | Spacer, Door-Skin (Hinge Side) |
| 19 | Spacer, Door-Skin (Bottom) |
| 20 | MAY 2005327 |
| 21A | End Cap (Left Side) |
| 21 | End Cap (Right Side) |
| 22 | MAY W10127710 |
| 23 | MAY 2222923 |
| 24 | MAY 2257617 |
| 25 | Bin, Door (3) |
| 26 | Bin, Door |
