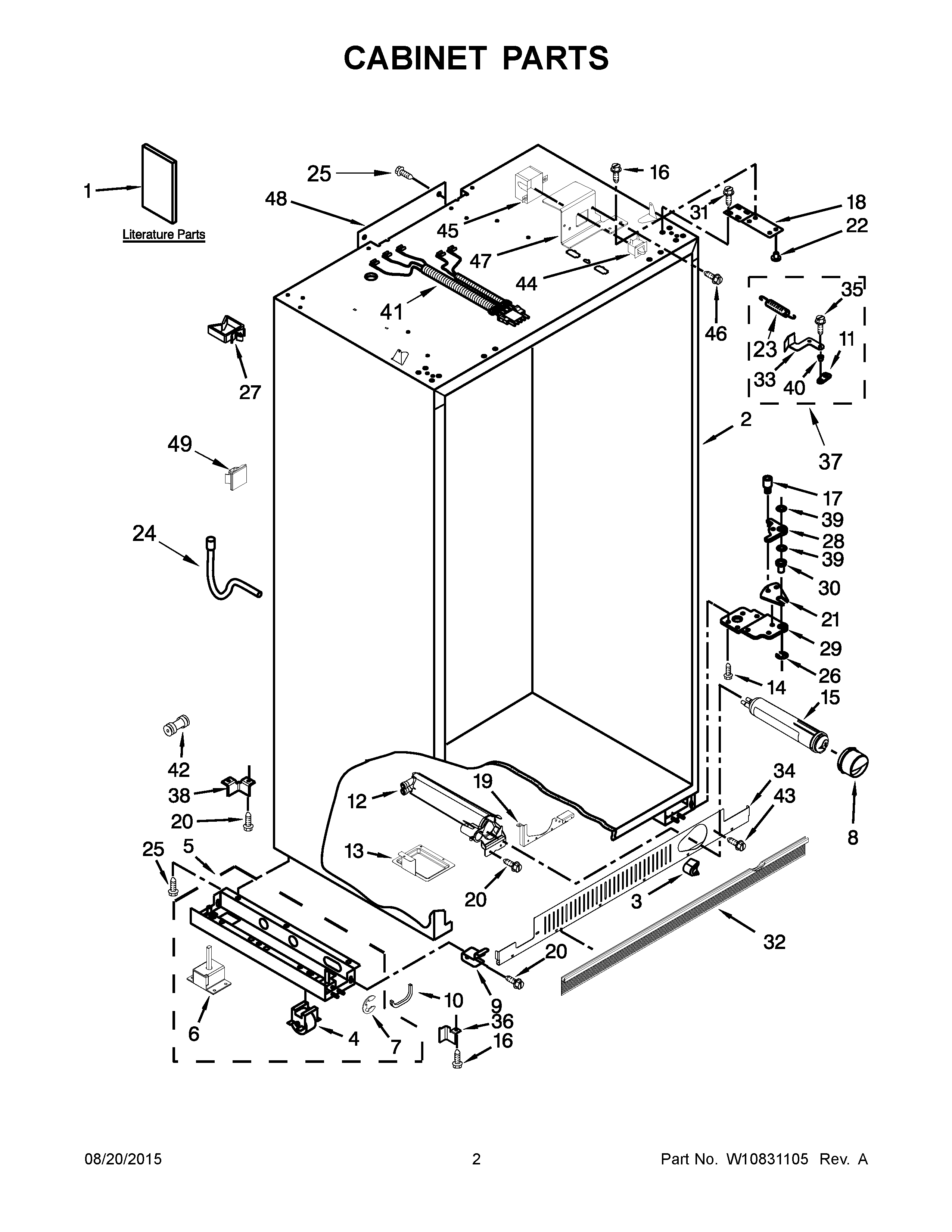

JS48SSDUDE00 02 – CABINET PARTS

JS48SSDUDE00 02 – CABINET PARTS

Written by

in

JS48SSDUDE00 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET (FRENCH)
1BTECH SHEET (ENGLISH)
1DINSTALLATION INSTRUCTIONS
1AMAY W10826673
1USE AND CARE GUIDE
2LINER (NOT A SERVICEABLE PART)
3Button, Filter (Black)
4MAY W10138054
5ASUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
5SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
6LEVELER ASSY
7Ring, Retainer
8CAP, WATER FILTER (BLACK)
9Mounting Stud, Grille
10GROMMET, CROSSOVERTUBE
11MAY 2320509
12MAY W10121140
13Tray, Drip Filter
14MAY 3400525
15Filter, Water
16Screw 8-32 x 5/16
17Screw, Door Stop
18Hinge (Top)
19MAY W10674648
20MAY W10001250
21Lock, Adjustable Bushing
22MAY W10484913
23Spring, Door Closure (Right Side)
24MAY 2314064
25MAY 1157158
26Retaining Ring, Adjustable Bushing
27Wire Clip (5)
28MAY W10482554
29AHINGE, BOTTOM (REFRIGERATOR)
29HINGE, BOTTOM (FREEZER)
30MAY 2302876
31Screw 1/4-20 x 5/8
32SKIRT-GRILLE, BOTTOM
33EXTENSION ARM, DOOR CLOSER (LEFT HAND)
33AEXTENSION ARM, DOOR CLOSER (RIGHT HAND)
34GRILLE BOTTOM, FRONT
35MAY W10485630
36Bracket, Support Base (Front) (Left)
36ABracket, Support Base (Front) (Right)
37ASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
38Bracket, Support Base (Rear) (2)
39WASHER
40MAY 2316859
41ASSEMBLY, SWITCH WIRE
42CONNECTOR, UNION
43Screw
44ASwitch, Rocker Arm
44MAY 1118894
45Cover, Switch (2)
46Screw
47ABRACKET, SWITCH (RIGHT HAND)
47BRACKET, SWITCH (LEFT HAND)
48Cover, Rear
49WPM0104106 Whirlpool Refrigerator Clip
