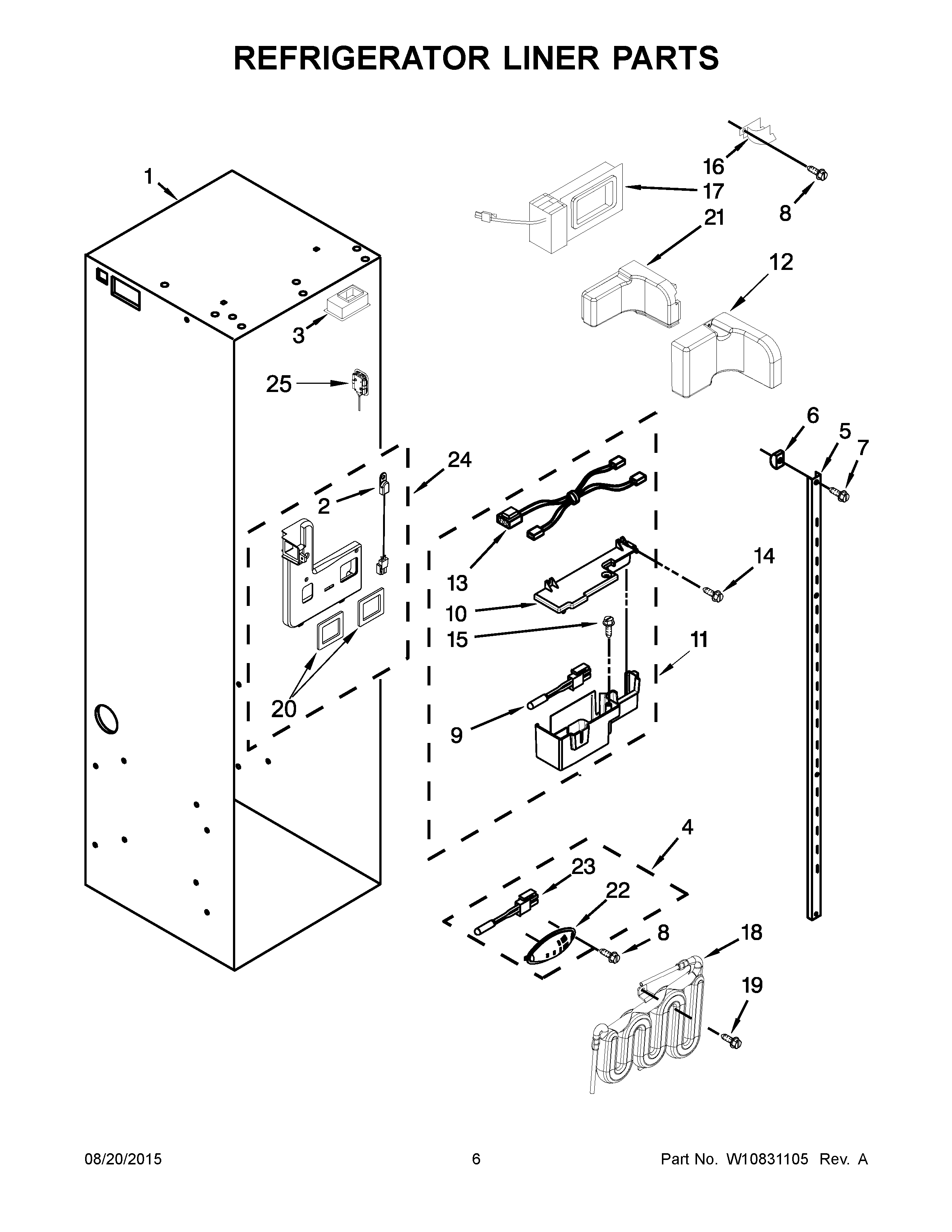

JS48SSDUDE00 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2306010
3	Air Duct
4	ASSEMBLY, THERMISTOR
5A	LADDER (LONG)
5	LADDER (SHORT)
6	Support, Screw
7	MAY W10745668
8	SCREW (BLACK)
9	MAY 2302937
10	LID, BAFFLE
11	ASSEMBLY, CONTROL BAFFLE
12	COVER, AIR DIFFUSER
13	Jumper, Air Baffle
14	SCREW (BLACK)
15	MAY 1157158
16	GUARD, AIR RETURN
17	Air Baffle Assembly
18	RESERVOIR, WATER
19	SCREW 8-15 X 3/4
20	Seal, Air Duct (Square Hole)
21	ASSEMBLY, AIR DIFFUSER
22	COVER, THERMISTOR
23	MAY 2188820
24	ASSEMBLY, SPACER
25	MAY W10607479
