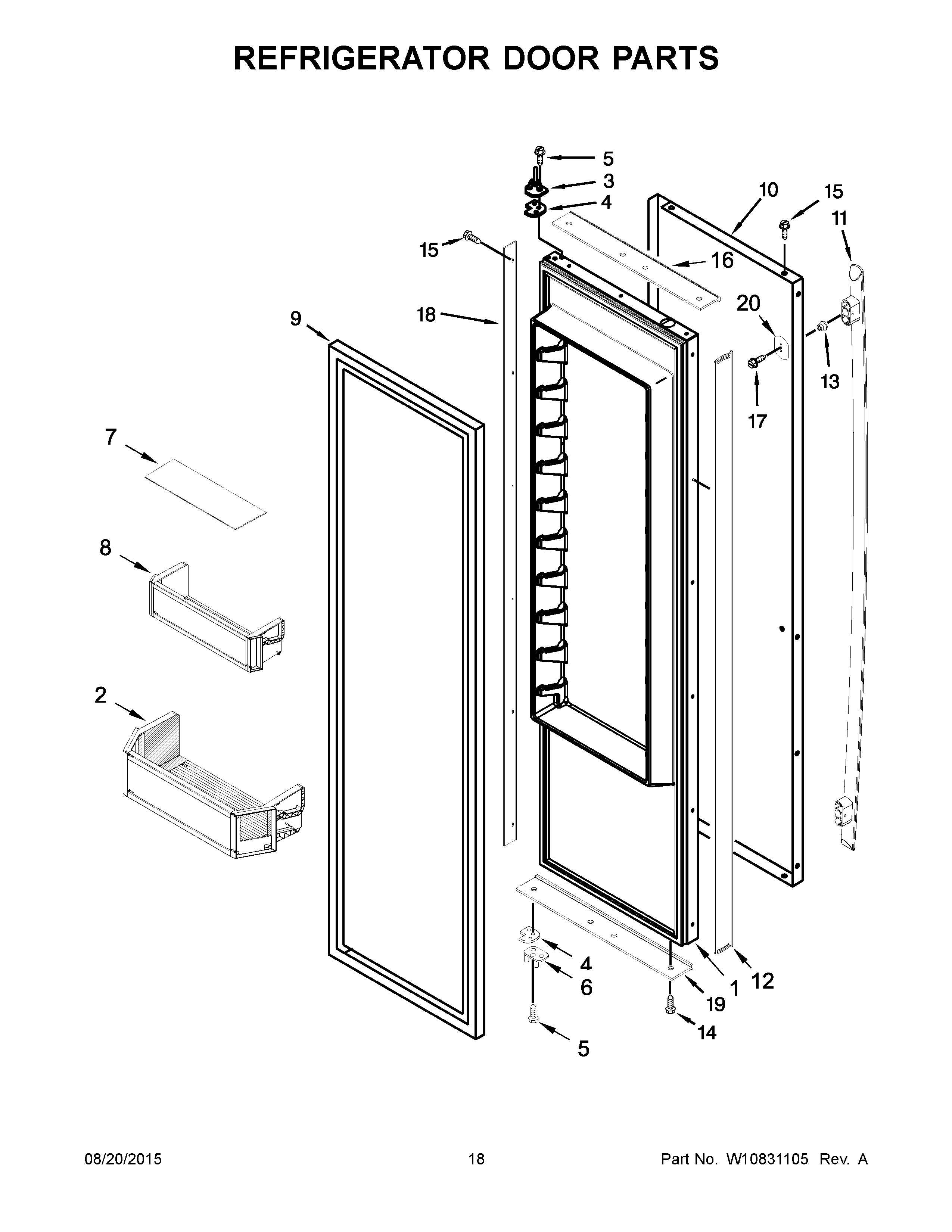

JS48SSDUDE00 10 – REFRIGERATOR DOOR PARTS

JS48SSDUDE00 10 – REFRIGERATOR DOOR PARTS

Written by

in

JS48SSDUDE00 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10783291
2BIN, GALLON DOOR
3ASSEMBLY, TOP HINGE
4Spacer-Door, Top & Bottom
5MAY W10162602
6Hinge Assembly, Bottom
7AMAT, DOOR BIN (GALLON)
7MAT, DOOR BIN (SHALLOW)
8BIN, SHALLOW DOOR
9GASKET, DOOR (BLACK)
10MAY W10756459
11HANDLE, DOOR
12SPACER, HANDLE SIDE DOOR
13MOUNT, HANDLE
14SCREW
15Screw, 8-15 x .500 (Stainless Steel)
16MAY W10766560
17Screw
18SPACER, HINGE SIDE DOOR
19MAY W10766561
20MAY W10127710
