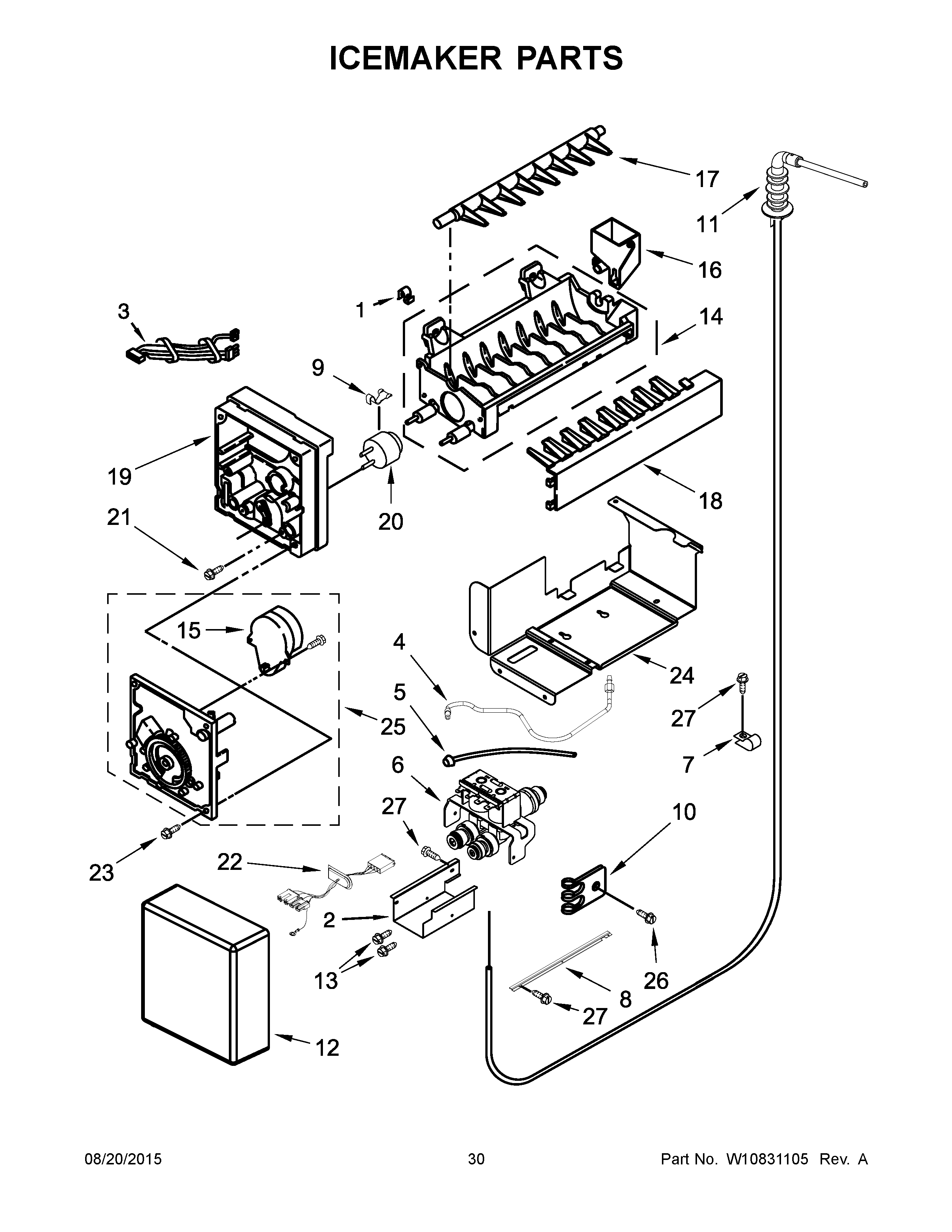

JS48SSDUDE00 16 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	Icemaker Install Kit
NI	LINER (NOT A SERVICEABLE PART)
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
NI	MAY REFDEODOR
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
1	Clip
2	Shield, Valve
3	ASSEMBLY, ICEMAKER WIRE
4	MAY W10296807
5	MAY W10683737
6	Valve, Solenoid
7	MAY 2221070
8	MAY 2320559
9	MAY 2315522
10	Clip, Tube
11	MAY W10357286
12	COVER, ICEMAKER
13	SCREW
14	ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
16	MAY W10788844
17	MAY 627843
18	STRIPPER, ICE
19	SUPPORT, HOUSING
20	Thermostat (Also Order 542369 Cement Alumilastic)
21	Screw (2)
22	WIRE ASSEMBLY, SMART VALVE
23	MAY 489276
24	BRACKET, ICEMAKER MOUNTING
25	MODULE ASSEMBLY (INCLUDES ITEM 24)
26	MAY W10141645
27	MAY 1157158
100	MAY W10790817
