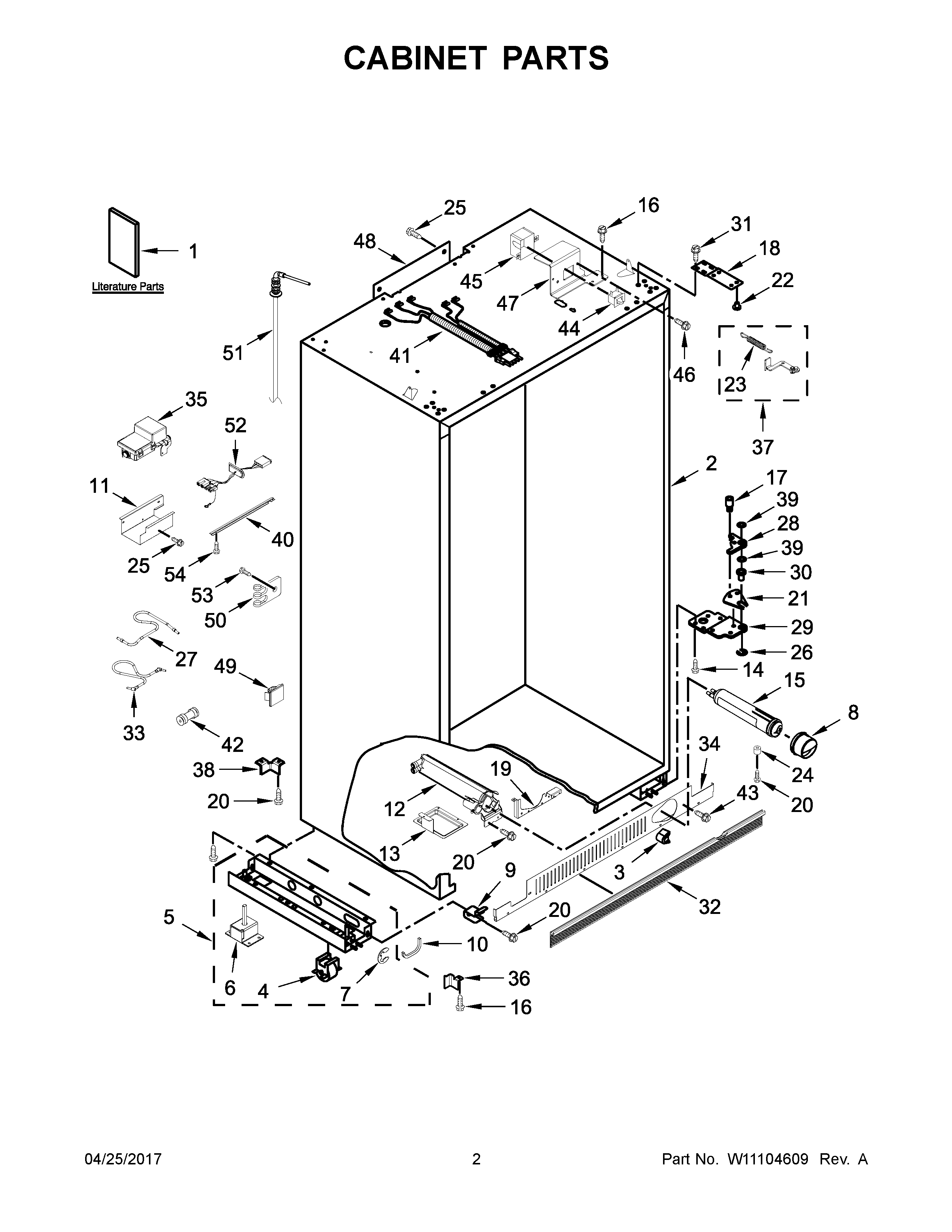

JS48SSDUDE01 02 – CABINET PARTS

JS48SSDUDE01 02 – CABINET PARTS

Written by

in

JS48SSDUDE01 02 – CABINET PARTS

Products

PositionProduct
1EMAY W10762997
1AMAY W10826673
1CMAY W10910734
1BMAY W10910733
1DINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
2LINER (NOT A SERVICEABLE PART)
3Button, Filter (Black)
4MAY W10138054
5SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5ASUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6LEVELER ASSY
7Ring, Retainer
8CAP, WATER FILTER (BLACK)
9Mounting Stud, Grille
10GROMMET, CROSSOVERTUBE
11Shield, Valve
12MAY W10121140
13Tray, Drip Filter
14MAY 3400525
15Filter, Water
16Screw 8-32 x 5/16
17Screw, Door Stop
18Hinge (Top)
19MAY W10674648
20MAY W10001250
21Lock, Adjustable Bushing
22MAY W10484913
23Spring, Door Closure (Right Side)
24Spacer, Door-Skin (Top)
25MAY 1157158
26Retaining Ring, Adjustable Bushing
27MAY W10296807
28MAY W10482554
29HINGE, BOTTOM (FREEZER)
29AHINGE, BOTTOM (REFRIGERATOR)
30MAY 2302876
31Screw 1/4-20 x 5/8
32SKIRT-GRILLE, BOTTOM
33MAY W10683737
34GRILLE BOTTOM, FRONT
35VALVE, INLET
36ABracket, Support Base (Front) (Right)
36Bracket, Support Base (Front) (Left)
37ASSEMBLY, LIGHT SWITCH CAM (LEFT HAND)
37AASSEMBLY, LIGHT SWITCH CAM (RIGHT HAND)
38Bracket, Support Base (Rear) (2)
39WASHER
40MAY 2320559
41ASSEMBLY, SWITCH WIRE
42CONNECTOR, UNION
43Screw
44MAY 1118894
44ASwitch, Rocker Arm
45Cover, Switch (2)
46Screw
47BRACKET, SWITCH (LEFT HAND)
47ABRACKET, SWITCH (RIGHT HAND)
48Cover, Rear
49WPM0104106 Whirlpool Refrigerator Clip
50Clip, Tube
51MAY W10357286
52WIRE ASSEMBLY, SMART VALVE
53MAY W10141645
54SCREW
