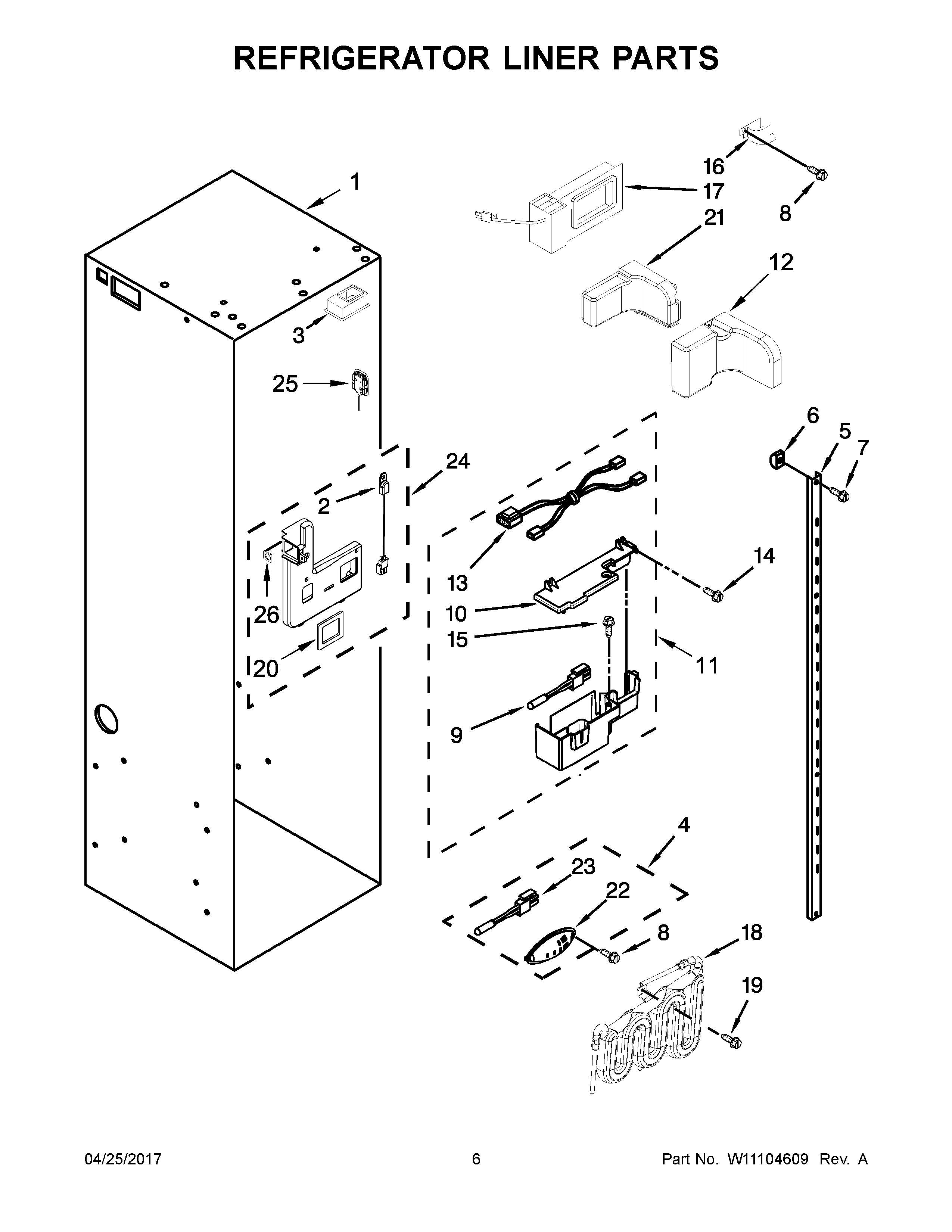

JS48SSDUDE01 04 – REFRIGERATOR LINER PARTSadmin2025-04-26T09:16:26+00:00JS48SSDUDE01 04 – REFRIGERATOR LINER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | MAY 2306010 |
| 3 | MAY W10832844 |
| 4 | ASSEMBLY, THERMISTOR |
| 5A | LADDER (LONG) |
| 5 | LADDER (SHORT) |
| 6 | Support, Screw |
| 7 | MAY W10832438 |
| 8 | SCREW (BLACK) |
| 9 | MAY 2302937 |
| 10 | LID, BAFFLE |
| 11 | ASSEMBLY, CONTROL BAFFLE |
| 12 | COVER, AIR DIFFUSER |
| 13 | Jumper, Air Baffle |
| 14 | SCREW (BLACK) |
| 15 | MAY 1157158 |
| 16 | GUARD, AIR RETURN |
| 17 | Air Baffle Assembly |
| 18 | RESERVOIR, WATER |
| 19 | SCREW 8-15 X 3/4 |
| 20 | Seal, Air Duct (Square Hole) |
| 21 | ASSEMBLY, AIR DIFFUSER |
| 22 | COVER, THERMISTOR |
| 23 | MAY 2188820 |
| 24 | ASSEMBLY, SPACER |
| 25 | ASSEMBLY, LED MODULE |
| 26 | MAY W10795331 |
