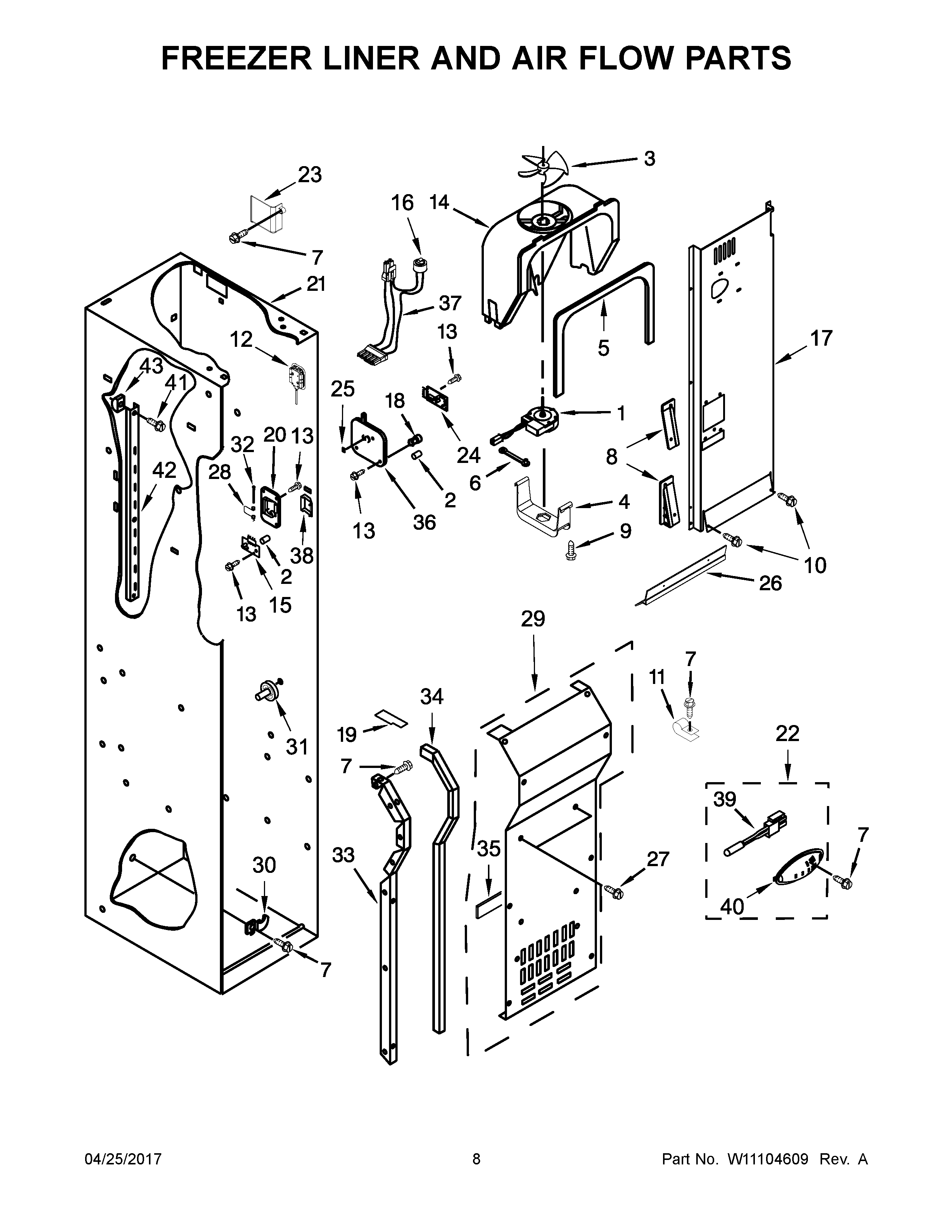

JS48SSDUDE01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	MAY W10436861
2	MAY 2198665
3	Blade, Fan (Evaporator)
4	MAY W10260421
5	Gasket, Cover
6	MAY W10321090
7	MAY 1157158
8	WEDGE, AIR DUCT (LEFT HAND)
8A	WEDGE, AIR DUCT (RIGHT HAND)
9	SCREW
10	SCREW (BLACK)
11	MAY 2221070
12	ASSEMBLY, LED MODULE
13	Screw (2)
14	Fan Scroll
15	MAY W10193840
16	Defrost, Bi-Metal
17	MAY W10769282
18	MAY 2198643
19	Block, Fan Scroll (Left)
19A	Block, Fan Scroll (Right)
20	COVER, EMITTER
21	LINER (NOT A SERVICEABLE PART)
22	ASSEMBLY, THERMISTOR
23	COVER, AIR OUTLET
24	MAY W10290817
25	SLIDE, ICEMAKER SHUT OFF
26	MAY W10745665
27	SCREW (BLACK)
28	SPRING, DOOR
29	MAY W10748861
30	MAY 1112260
31	ASSEMBLY, SHELF STUD (INCLUDES SCREW)
32	PIN, DOOR
33A	Evaporator, Cover Rail (Right Side)
33	Evaporator, Cover Rail (Left Side)
34	GASKET, EVAPORATOR COVER
35	GASKET, EVAPORATOR COVER
36	COVER, RECEIVER
37	MAY W10482187
38	FLIPPER, SHUT OFF
39	MAY 2306010
40	COVER, THERMISTOR
41	MAY W10832438
42	LADDER, SHELF
43	Support, Screw
