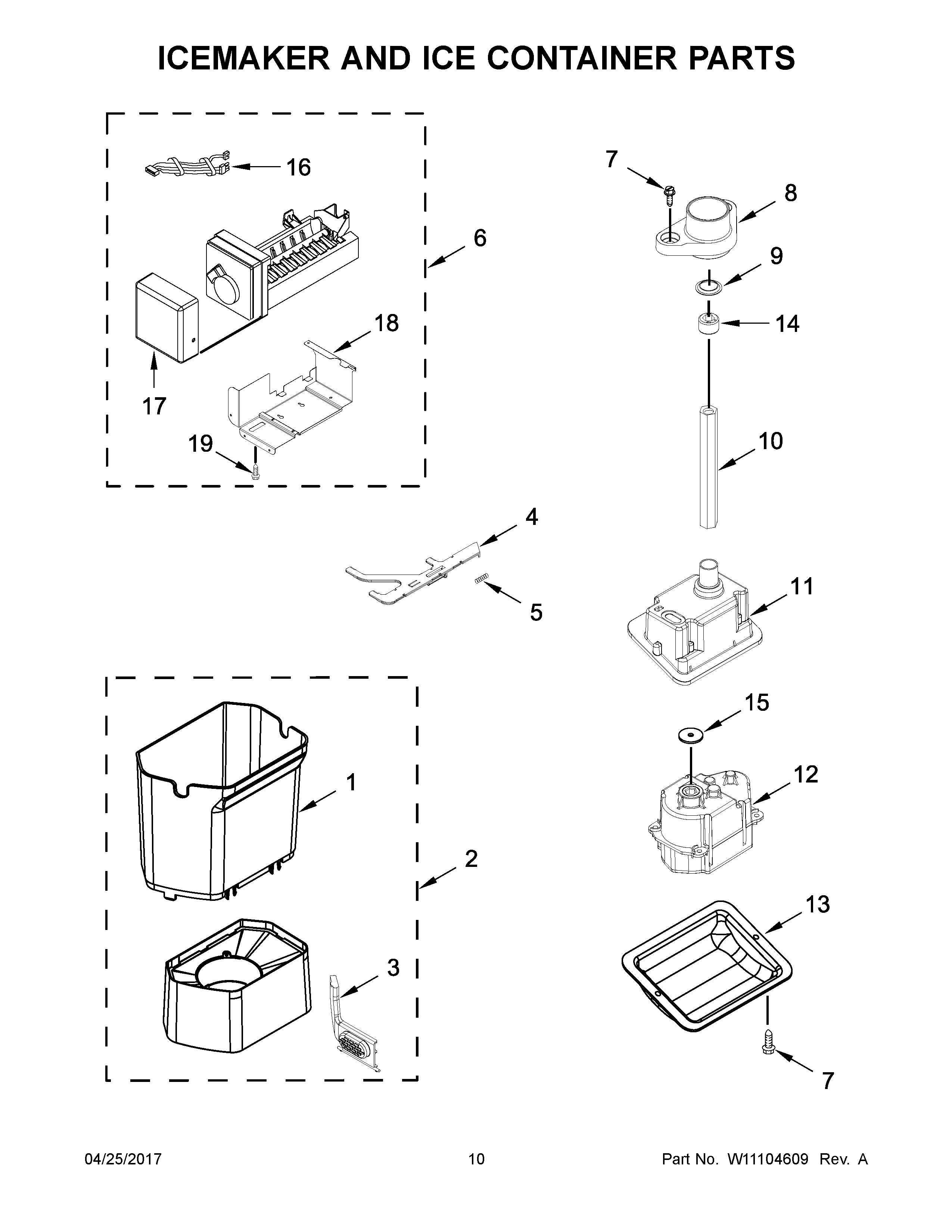

JS48SSDUDE01 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1BIN, ICE
2MAY W10784413
3BUTTON, BIN
4LATCH, BIN
5MAY 2198608
6COMPLETE ICEMAKER ASSEMBLY
7Screw
8CLIP, SHAFT
9MAY 2198628
10Drive Shaft
11ENCLOSURE, MOTOR
12MOTOR, DISPENSER
13COVER, MOTOR
14SLEEVE, COUPLING
15WASHER, RUBBER
16MAY W10508659
17COVER, ICEMAKER
18BRACKET, ICEMAKER MOUNTING
19SCREW (BLACK)
