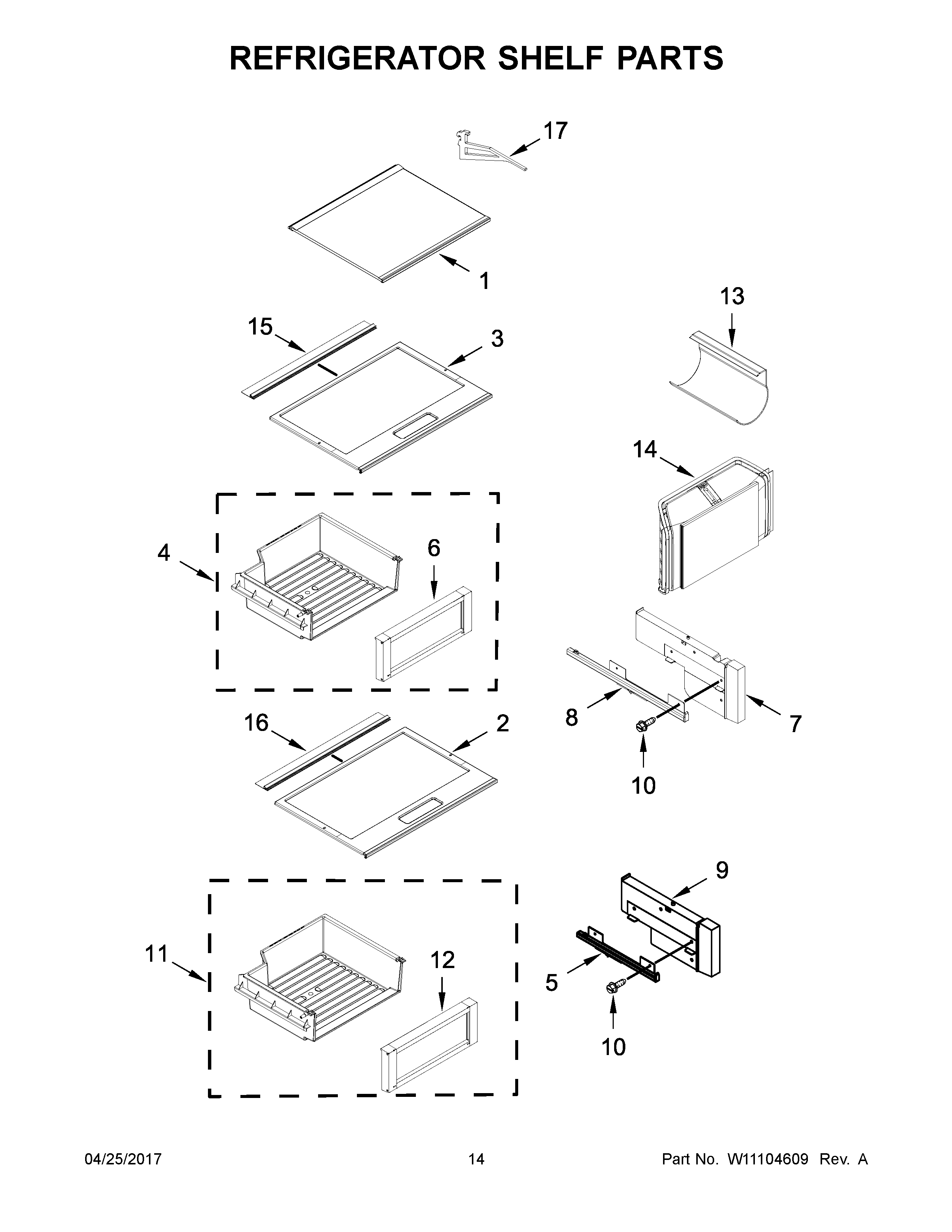

JS48SSDUDE01 08 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1SHELF ASSY
2ASSEMBLY, MEAT PAN COVER
3MAY W10785395
4MAY W10844015
5MAY W10844011
5ASLIDE, MEAT PAN (RIGHT HAND)
6MAY W10843806
7SPACER, CRISPER
8MAY W10844010
8ASLIDE, CRISPER (RIGHT HAND)
9SPACER, MEAT PAN
10Screw
10AScrew (Right Side- (8-18 x 1.375))
11MAY W10844013
12MAY W10843804
13RACK, WINE
14ASSEMBLY, PRODUCE PRESERVER
15GASKET, CRISPER COVER REAR
16GASKET, MEAT COVER REAR
17SIDEARM, SHELF
